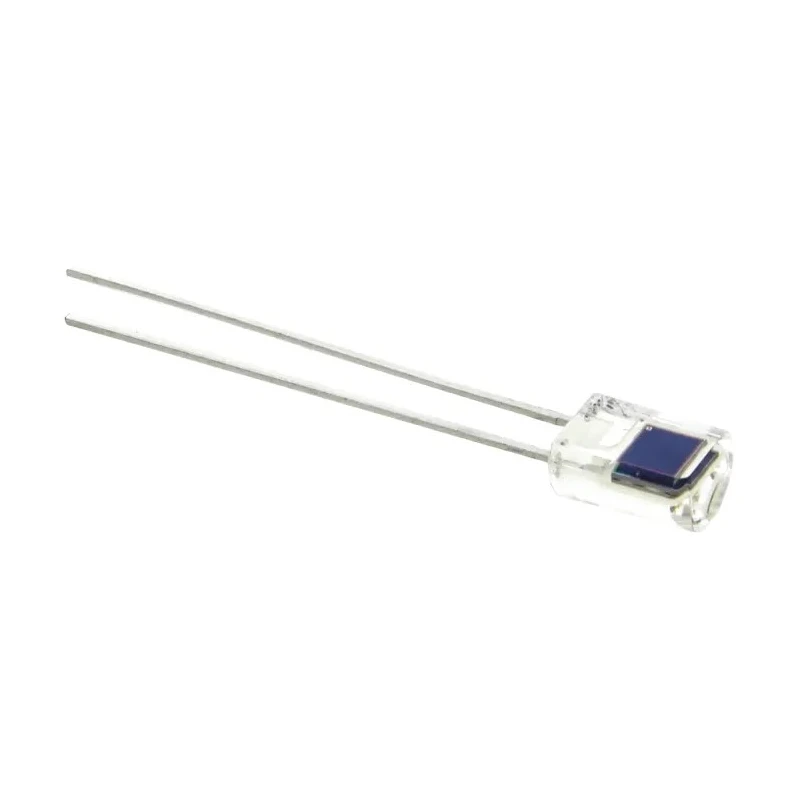

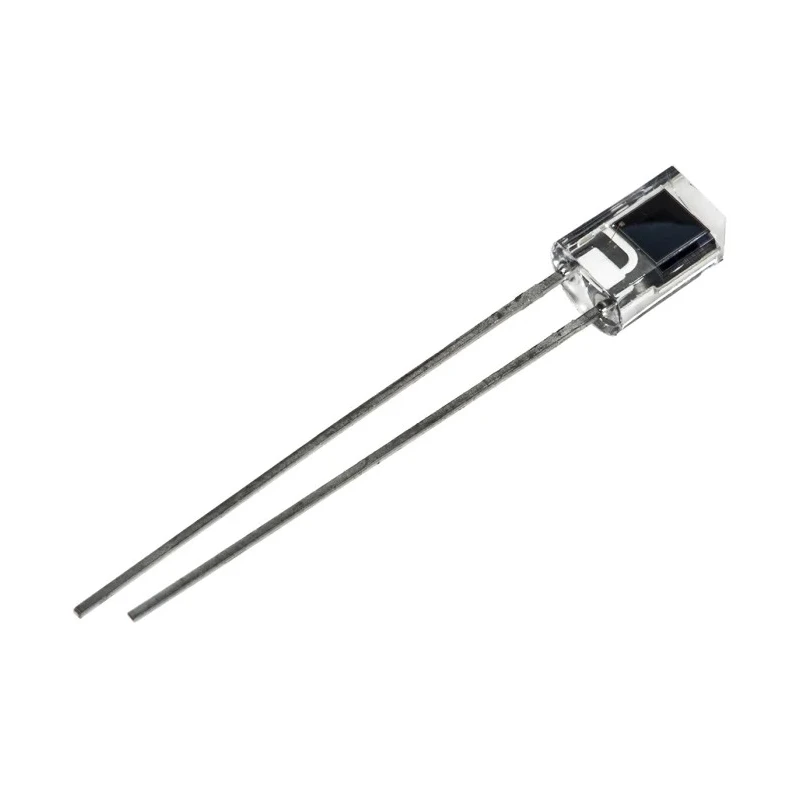

ams OSRAM Visible Light Infrared Photodiode Through Hole T-1 3/4 60° Angle SFH 206 K

ams OSRAM SFH 206 K is a high-performance visible light and infrared photodiode, featuring a through-hole T-1 3/4 clear plastic package designed for reliable mounting in industrial and electronic applications. It operates efficiently in detecting light spectrums ranging from 400 nm to 1100 nm with a peak sensitivity at 850 nm.

The photodiode offers rapid switching with a typical rise and fall time of 0.02 microseconds, enabling accurate sensing in fast-paced environments such as photointerrupters, industrial electronics, computer-controlled flashes, and control or drive circuits. Its radiant sensitive area measures 2.65 mm², providing precise light detection while maintaining compact size with package dimensions approximately 5.1 mm length, 4.1 mm width, and 6.9 mm height.

Designed with a 60° half-intensity acceptance angle and 120° total acceptance angle, this device delivers focused and efficient light detection. The device is through-hole mounted with 2 pins and forward polarity, ensuring seamless integration into various circuit designs.

Operating temperature spans from -40°C to +85°C, making it suitable for harsh environments. The photodiode complies with RoHS directives and meets the automotive standard AEC-Q101, ensuring quality and reliability for automotive and industrial use cases.

This photodiode is ideal for industrial manufacturing, laboratory instrumentation, automation systems, and commercial electronics requiring visible and infrared light sensing capabilities. Its compact and robust design lends itself well to LED and optoelectronic product assemblies.

Photodiode detects visible and infrared light spectrums (400 - 1100 nm). Typical switching times of 0.02 μs for rise and fall ensure fast response. Clear T-1 3/4 package, through-hole mounting, dimensions: 5.1 mm x 4.1 mm x 6.9 mm.

Radiant sensitive area 2.65 mm² for precise light measurement. Operating temperature range: -40°C to 85°C for harsh environments. Forward polarity, 2-pin connection type. Compliance with RoHS and automotive AEC-Q101 standards.

Acceptance angle 120° with half sensitivity angle of 60°. Explore a wide range of Photodiodes and optoelectronic components in the Electronics & Electricals category at EnvMart for all your industrial and laboratory sensing applications.
