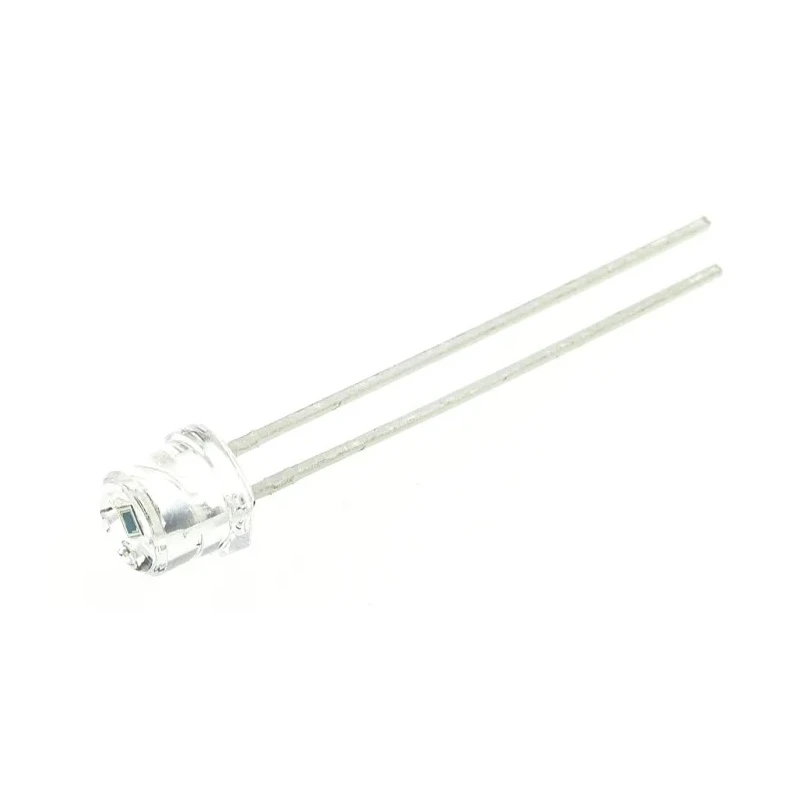

ams OSRAM Infrared, Visible Light Photodiode, 75 ° Angle of Half Sensitivity, Through Hole T-1 3/4 Package SFH 203 P

ams OSRAM SFH 203 P is a precision infrared and visible light photodiode packaged in a 5mm (T-1 3/4) standard through-hole case with a viewing angle of 75°. Its spectral sensitivity covers wavelengths from 400 nm to 1100 nm with a peak sensitivity at 850 nm, making it highly suitable for applications requiring accurate light detection within this range.

This photodiode features a radiant sensitive area of 1 x 1 mm², which provides excellent spatial resolution. With typical rise and fall times of 0.005 microseconds, it supports high-speed switching and fast response required in industrial electronics, control and drive circuits, and high-speed photointerrupters.

The device operates reliably across a wide temperature range from -40°C to 85°C, ensuring stable performance in demanding environments. Its supply polarity is forward with a breakdown voltage rating of 20 volts, and the open circuit voltage is 350 mV, supporting robust and reliable sensor designs.

Dimensionally, the photodiode measures 5 mm in diameter, 5 mm in height, and 5.9 mm in length, fitting standard PCB layouts with through-hole mount type and two pins. The device observes RoHS compliance, underscoring environmental safety in manufacturing and usage.

Detects infrared and visible light spectrum from 400 to 1100 nm. Peak wavelength sensitivity at 850 nm enables precise applications. Fast response times of 0.005μs for both rise and fall times. Compact 5mm diameter through-hole T-1 3/4 package.

Operates in wide temperature range suitable for industrial usage. Low dark current of 5nA reduces signal noise in measurements. Robust breakdown voltage of 20V with forward polarity. Radiant sensitive area of 1 x 1 mm² for high precision.

Compliant with RoHS environmental standards.

This photodiode is ideal for use in industrial electronics, automation, high-speed sensing applications, optical communication devices, and control systems. The through-hole T-1 3/4 package ensures easy integration into PCB assemblies for various electronic and optoelectronic projects.
