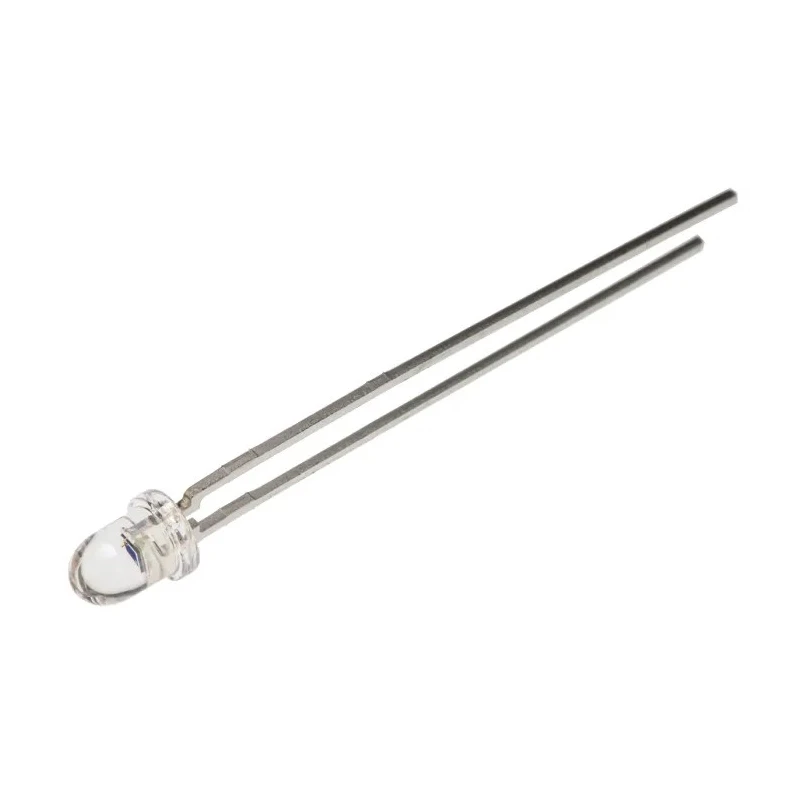

ams OSRAM Visible Light Ultraviolet Infrared Photodiode Through Hole T-1 Package SFH 229

ams OSRAM SFH 229 photodiode is a high-performance visible light, ultraviolet, and infrared photodetector provided in a standard 3 mm (T-1) through-hole package. Its clear plastic housing facilitates effective light detection ranging from 380 nm minimum wavelength to 1100 nm maximum wavelength, making it suitable for broad-spectrum sensing.

This photodiode features a peak sensitivity at 860 nm and an angle of half sensitivity of 17°, ensuring focused and accurate light detection. With a short circuit current of 27 μA and a low dark current of 5 nA, it provides efficient signal output with minimal noise.

The device is rated for operation within a temperature range of -40°C to 85°C and complies with RoHS environmental standards. Its compact dimensions (5.2 mm height, 4 mm length, and 3 mm width) and through-hole mounting type simplify integration into various electronic assemblies.

Typical rise and fall times of 0.01 μs enable the photodiode to respond quickly in switching applications. It has a breakdown voltage of 20 V and an open circuit voltage of 350 mV, supporting robust performance under different electrical conditions.

Ideal for industrial electronics, photointerrupters, and control and drive circuit applications, this ams OSRAM photodiode combines reliability with versatile spectral detection capabilities. The T-1 package with tape & reel packaging ensures ease of use in automated manufacturing environments.

The photodiode detects visible light, ultraviolet, and infrared spectrums effectively. Peak sensitivity wavelength is at 860 nm for optimal performance. Features a 3 mm (T-1) clear plastic through-hole package for easy mounting.

Operates reliably between -40°C to 85°C with RoHS compliance. Compact dimensions: 5.2 mm height, 4 mm length, and 3 mm width. Short circuit current rating is 27 μA with minimal dark current of 5 nA. Exhibits rapid response with typical rise and fall times of 0.01 μs.

Designed for industrial electronics, photointerrupters, and control circuits applications. Explore the ams OSRAM Photodiode range at EnvMart for application-specific optoelectronics solutions in industry, manufacturing, and laboratory environments.
