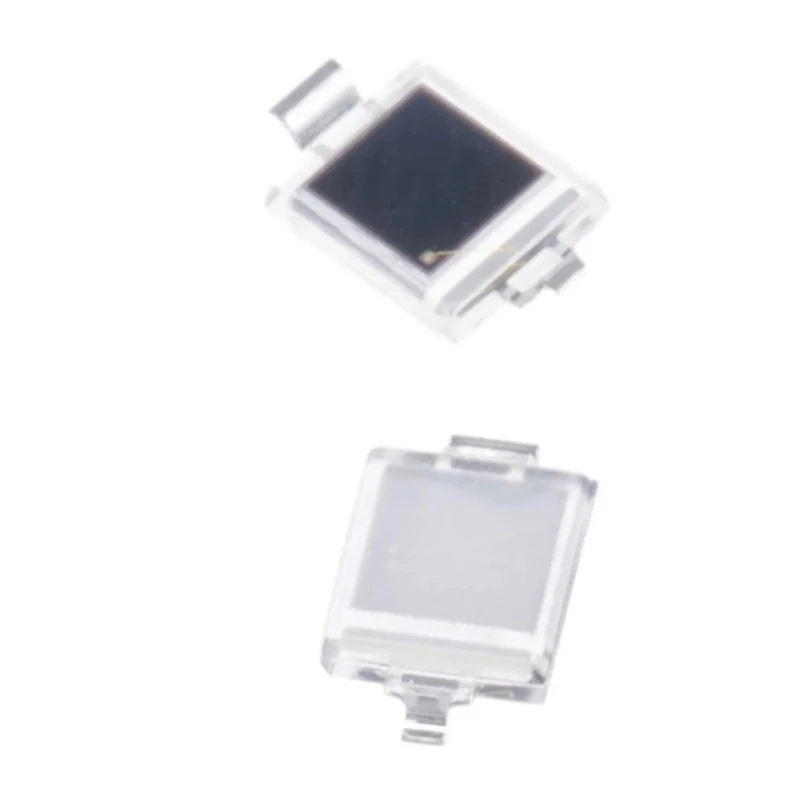

ams OSRAM Visible Light and Infrared Photodiode 60° Angle, Surface DIP Package BPW 34 SR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | BPW 34 SR |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Short Circuit Current | 25μA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Reverse |
| Dark Current | 2nA |
| Open Circuit Voltage | 330mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 20ns |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 16V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- Detects visible and infrared light spectrums with peak sensitivity at 850nm.
- Compact dimensions of 4.5mm length, 4mm width, and 1.2mm height.
- Supports operational temperatures from -40°C to 100°C.
- Features reverse polarity and is RoHS compliant.
- Typical rise and fall times of 20ns enable high-speed applications.
- Short circuit current rating of 25μA and dark current of 2nA.
- Breakdown voltage of 16V and open circuit voltage of 330mV.
- Ideal for optical sensing in industrial and electronic components assemblies.
Product Description
ams OSRAM BPW 34 SR is a high-performance visible light and infrared photodiode designed for surface mounting in DIP packages. It offers a 60° angle of half sensitivity and has a radiant sensitive area of 2.65 x 2.65 mm², making it suitable for precision optical detection tasks.
This photodiode detects a broad spectrum ranging from 400nm minimum to 1100nm maximum wavelength, with peak sensitivity at 850nm, ideal for visible and infrared light applications. The device supports industrial temperature ranges from -40°C to 100°C, ensuring reliability in harsh operating environments.
Featuring a reverse polarity configuration, the BPW 34 SR provides rapid response times with typical rise and fall times of 20ns, allowing it to be used effectively in high-speed electronic circuits. It is RoHS compliant and conforms to environmental and safety standards.
With a short circuit current of 25μA, dark current of 2nA, breakdown voltage of 16V, and an open circuit voltage of 330mV, this photodiode delivers consistent and accurate performance in sensing and optoelectronic systems.
These photodiodes are widely used in industrial automation, laboratory instrumentation, electronic equipment manufacturing, and consumer electronic devices requiring precise optical sensing. The compact DIP package allows straightforward PCB assembly with tape and reel packaging for production efficiency.
Detects visible and infrared light spectrums with peak sensitivity at 850nm. Compact size with 4.5mm length, 4mm width, and 1.2mm height. Operational temperature range from -40°C to 100°C for enhanced durability. Fast response times with 20ns typical rise and fall.
RoHS compliant and environmentally friendly. Short circuit current of 25μA and dark current of 2nA ensure low noise performance. Breakdown voltage of 16V and open circuit voltage of 330mV. Reverse polarity and surface mount DIP package.
This ams OSRAM photodiode is a trusted component for applications requiring stable and fast photodetection in visible and infrared spectrum ranges. Browse the Electronics Components category for more Photodiode options and related optoelectronics products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this photodiode is 850nm.
It supports an operational temperature range from -40°C to 100°C.
The dimensions are 4.5mm in length, 4mm in width, and 1.2mm in height.
The typical rise and fall times are 20ns, allowing for high-speed applications.
It can detect visible light and infrared spectrums, with a detection range from 400nm to 1100nm.
The dark current rating is 2nA.
The breakdown voltage is 16V.
It is packaged in a tape and reel format, suitable for surface mounting.
Yes, this photodiode is RoHS compliant, adhering to environmental and safety standards.
The short circuit current rating is 25μA.
This photodiode has 2 pins.
It features a reverse polarity configuration.
