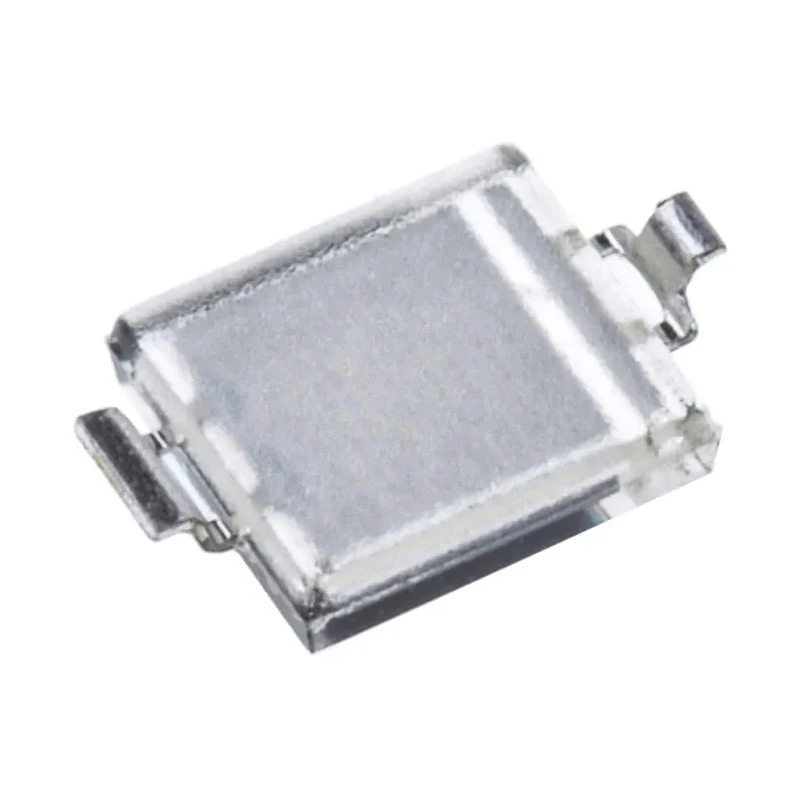

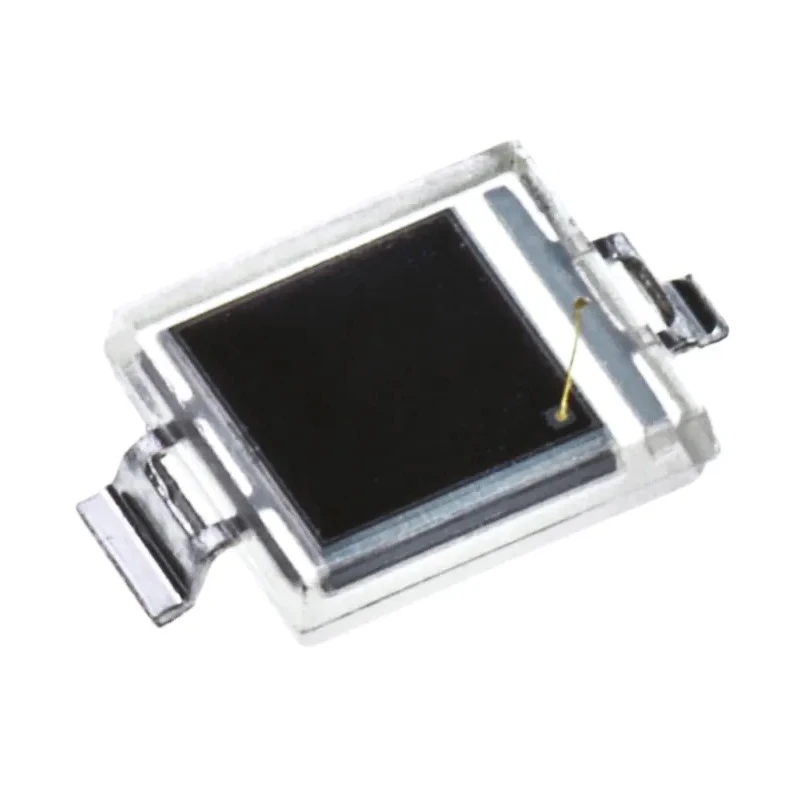

ams OSRAM Visible Light Infrared Photodiode, 60° Angle, Surface DIP Package BPW 34 S
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | BPW 34 S |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Short Circuit Current | 80μA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Reverse |
| Dark Current | 2nA |
| Open Circuit Voltage | 330mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.02μs |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 16V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
| Silicon PIN photodiode,SMT,BPW34SBrand | OSRAM Opto Semiconductors |
Key Features
- Detects both visible light and infrared wavelengths effectively up to 1100 nm.
- Compact surface mount DIP package with 2 pins for easy PCB integration.
- Low dark current of 2nA ensures excellent signal-to-noise ratio.
- Operates reliably across wide temperatures from -40°C to 100°C.
- Fast response times with typical rise and fall times of 0.02 microseconds.
- Breakdown voltage rating of 16V with reverse polarity operation.
- Radiant sensitive area of 2.65 x 2.65 mm² ensures optimal detection efficiency.
- RoHS compliant and suitable for industrial, automotive, and consumer sensor applications.
Product Description
ams OSRAM BPW 34 S is a highly sensitive visible light and infrared photodiode packaged in a compact surface DIP form suitable for a variety of electronic sensor applications.
This photodiode detects wavelengths ranging from 400 nm up to 1100 nm, peaking at 850 nm, making it ideal for infrared and visible light detection tasks in industrial, automotive, and consumer electronics.
Key electrical characteristics include a low dark current of 2nA and a breakdown voltage of 16V, ensuring stable operation with reverse polarity. Its typical rise and fall times of 0.02μs enable fast response in optical sensing applications.
The device features a radiant sensitive area of 2.65 x 2.65 mm² housed in a 4.5mm × 4mm × 1.2mm DIP surface mount package with 2 pins for easy PCB integration.
It operates over a broad temperature range from -40°C to 100°C, certified for RoHS compliance, and suits applications including photointerrupters, IR remote controls, automotive sensors, and headsets.
Detects visible and infrared spectra from 400nm to 1100nm wavelengths. Compact DIP surface mount package for efficient PCB assembly. Low dark current minimizes noise in sensitive optical circuits. Fast rise and fall times enable rapid signal detection.
Wide temperature tolerance for robust industrial use. Reverse polarity operation with 16V breakdown voltage support. RoHS compliant for environmentally safe applications. Commonly applied in automotive, industrial sensors, and consumer electronics.
Explore more high-quality Photodiodes and optoelectronic components from ams OSRAM on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects wavelengths from 400 nm to 1100 nm, with peak sensitivity at 850 nm.
The maximum operating temperature for the BPW 34 S is 100°C.
It features 2 pins for easy PCB integration.
The dark current of the BPW 34 S is 2nA, which helps ensure a good signal-to-noise ratio.
The breakdown voltage rating for this photodiode is 16V, allowing for reverse polarity operation.
This model has dimensions of 4.5mm in length, 4mm in width, and 1.2mm in height.
The BPW 34 S has typical rise and fall times of 0.02 microseconds, enabling fast response times.
It is packaged in a Tape & Reel format, which is suitable for automated assembly processes.
This photodiode is suitable for applications including photointerrupters, IR remote controls, automotive sensors, and headsets.
Yes, the BPW 34 S is RoHS compliant, making it suitable for environmentally safe applications.
The angle of half sensitivity for the BPW 34 S is 60 degrees, which affects its detection capabilities.
It can detect both visible light and infrared spectra, making it versatile for various applications.
