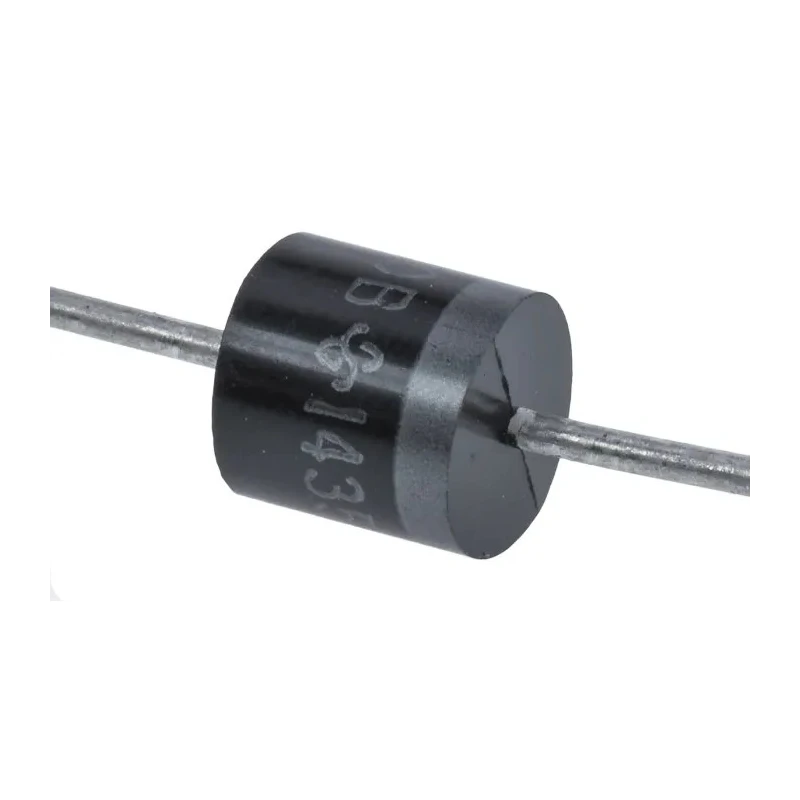

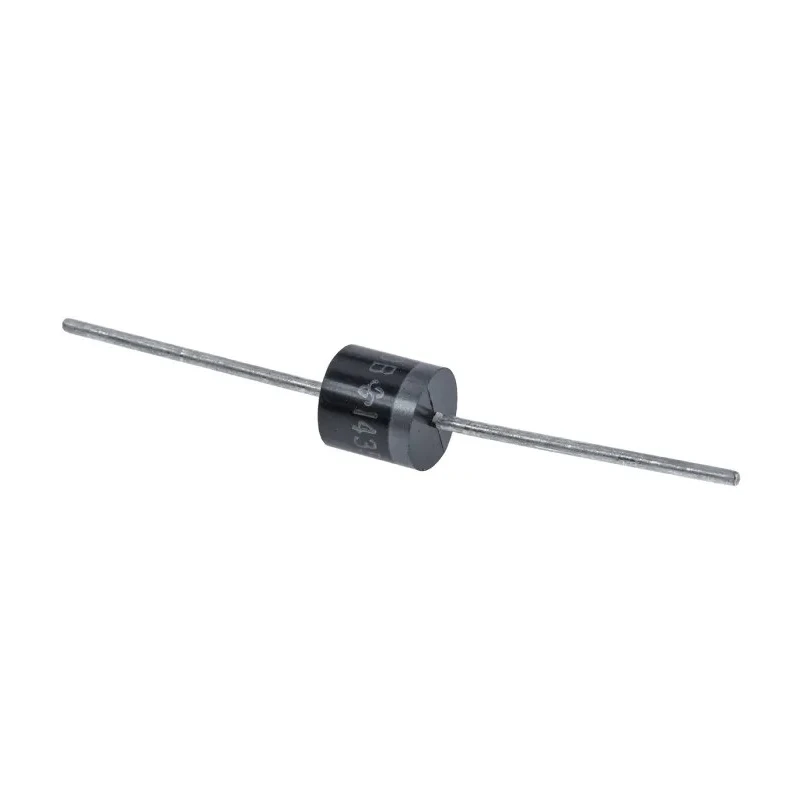

Vishay 100 V 22 A General Purpose Diode 2-Pin Through Hole P600 Package P600B-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600B-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600B |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 22A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 2.5μs |
| Rectifier diode,P600B 6A 100VBrand | Vishay |
| Vishay 100V 22A, Silicon Junction Diode, 2-Pin P600 P600BBrand | Vishay |
Key Features
- Constructed with a void-free molded epoxy P600 package for durability.
- Supports maximum continuous forward current of 22 A and peak reverse voltage of 100 V.
- Low forward voltage drop of 1.3 V ensures efficient conduction.
- High forward surge capability up to 400 A for transient conditions.
- Wide operating temperature range from -50°C to 150°C.
- Matte tin plated leads suitable for soldering per J-STD-002 and JESD 22-B102 standards.
- Color band marks the cathode end to ensure correct polarity installation.
- RoHS compliant and meets commercial grade with E3 suffix tested for whisker resistance.
Product Description
Vishay P600B-E3/54 is a high-performance general purpose diode with a 100 V peak reverse repetitive voltage and a maximum continuous forward current of 22 A. Packaged in a robust 2-pin P600 epoxy body, this diode is engineered for efficient rectification in power supply circuits, inverters, converters, and as a freewheeling diode in various electronic applications.
The P600B series features low forward voltage drop (1.3 V) and low leakage current, enabling higher efficiency and reduced power loss. It can handle high surge currents up to 400 A, making it suitable for transient heavy load conditions.
Constructed with a void-free molded epoxy body that meets UL 94 V-0 flammability rating, the diode ensures excellent mechanical stability. The matte tin plated leads comply with solderability standards J-STD-002 and JESD 22-B102. The E3 suffix indicates commercial grade compliance and a whisker test conforming to JESD 201 class 1A, ensuring reliability in demanding environments.
The device operates reliably in a temperature range from -50°C to 150°C, making it adaptable for a variety of industrial and commercial electronics, including power conversion and motor drive circuits. The marked cathode end assists in correct orientation during assembly.
Constructed with a void-free molded epoxy P600 package for durability. Supports maximum continuous forward current of 22 A and peak reverse voltage of 100 V. Low forward voltage drop of 1.3 V ensures efficient conduction.
High forward surge capability up to 400 A for transient conditions. Wide operating temperature range from -50°C to 150°C. Matte tin plated leads suitable for soldering per J-STD-002 and JESD 22-B102 standards. Color band marks the cathode end for polarity identification.
RoHS compliant and commercial grade with E3 suffix tested for whisker resistance. Applicable for power supply rectification, inverters, converters, and freewheeling diode roles.
This Diode is manufactured in China and is new. It complies with RoHS regulations, making it environmentally friendly and suitable for usage in modern industrial and electronic manufacturing.
Explore more electronic components and semiconductor devices in EnvMart for advanced power conversion and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 22 A.
This model has a peak reverse voltage rating of 100 V.
The diode features a low forward voltage drop of 1.3 V.
It can handle high forward surge currents up to 400 A.
The diode operates reliably within a temperature range of -50°C to 150°C.
It is packaged in a void-free molded epoxy P600 package.
The cathode end is marked with a color band to ensure correct polarity installation.
The diode has a diameter, height, length, and width of 9.1 mm each.
It features matte tin plated leads suitable for soldering per J-STD-002 and JESD 22-B102 standards.
The peak reverse recovery time is 2.5 μs.
Yes, this diode is RoHS compliant and meets commercial grade standards with the E3 suffix.
This diode is suitable for applications including power supply rectification, inverters, converters, and as a freewheeling diode.
