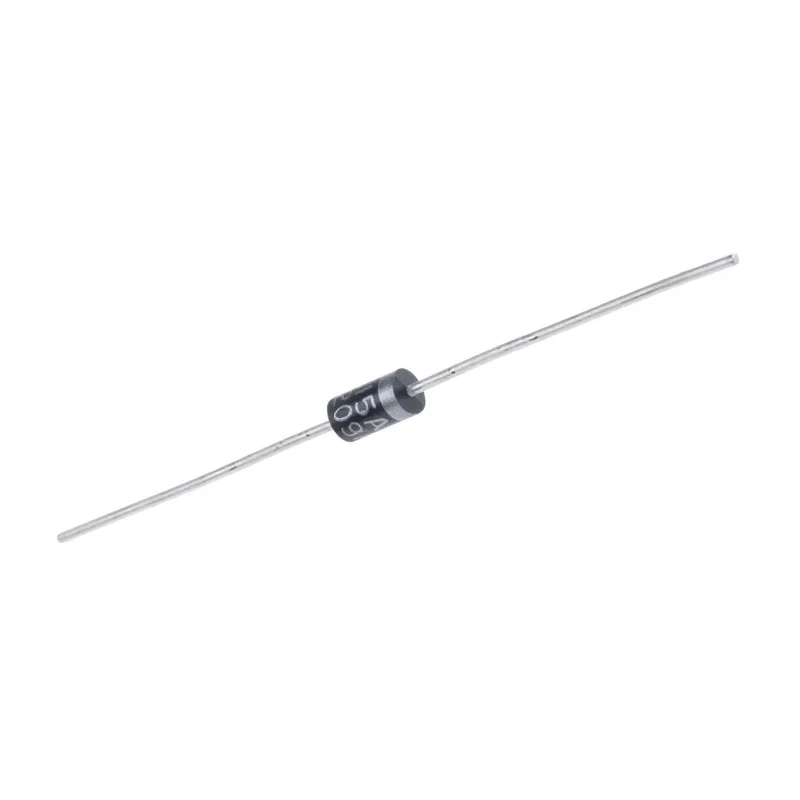

Vishay 1-Element Uni-Directional TVS Diode 500 W 2-Pin DO-15 SA15A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.3mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | SA15A-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 24.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 16.7V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 20.5A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay SA15A, Uni-Directional TVS Diode, 500W, 2-Pin DO-204ACBrand | Vishay |
Key Features
- This TVS diode features a single element with uni-directional configuration.
- It offers a minimum breakdown voltage of 16.7 volts.
- The diode is housed in a through-hole DO-15 package with 2 pins for easy circuit integration.
- Designed to withstand operating temperatures ranging from -55°C to 175°C.
- Peak pulse current capacity reaches up to 20.5 amperes for transient voltage suppression.
- Clamping voltage rating is 24.4 volts ensuring effective voltage limiting.
- The component complies with automotive standard AEC-Q101 for enhanced quality assurance.
- The diode's physical dimensions include a length of 7.6 mm and diameter of 3.3 mm.
Product Description
Vishay SA15A-E3/54 is a 1-element, uni-directional Transient Voltage Suppressor (TVS) diode designed to provide robust protection against voltage spikes in sensitive electronic equipment. This diode supports a peak pulse power dissipation of 500 watts and operates efficiently under high transient conditions.
Featuring a through-hole DO-15 package with 2 pins, the device offers straightforward integration into electronic circuits requiring reliable voltage suppression. Its minimum breakdown voltage is 16.7 volts with a maximum reverse stand-off voltage of 15 volts, making it suitable for protecting circuits against transient overvoltages.
With a clamping voltage of 24.4 volts and peak pulse current capacity of 20.5 amperes, the SA15A-E3/54 diode effectively clamps voltage surges and prevents damage to downstream components. The component operates across a wide temperature range, from -55°C up to 175°C, ensuring durability in harsh environments.
This product meets the automotive qualification standard AEC-Q101, confirming its reliability and performance for automotive and industrial applications.
The diode's compact physical size, with a length of 7.6 mm, width and height of 3.6 mm, and a diameter of 3.3 mm, suits PCB layouts requiring space efficiency without compromising performance.
Single element, uni-directional diode for circuit protection. Peak pulse power dissipation: 500 W to handle high transient spikes. Operating temperature range broad: -55°C to 175°C. Complies with automotive standard AEC-Q101.
Low reverse leakage current minimizes unwanted current flow. Package type DO-15 for secure through-hole mounting. Ideal for industrial, automotive, and electronic surge protection.
This Vishay TVS Diode is an essential component in protecting sensitive electronics from sudden voltage surges, preventing equipment failures and increasing system reliability. Browse the EnvMart catalog for additional semiconductor and diode components for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SA15A-E3/54 TVS diode has a peak pulse power dissipation of 500 watts, allowing it to handle high transient voltage spikes effectively.
The minimum breakdown voltage for the SA15A-E3/54 is 16.7 volts, providing essential protection against voltage spikes.
The clamping voltage rating of this diode is 24.4 volts, which helps in limiting voltage surges to protect sensitive components.
The maximum reverse stand-off voltage for the Vishay SA15A-E3/54 is 15 volts, ensuring it can withstand certain voltage levels without conducting.
This TVS diode operates within a temperature range of -55°C to 175°C, making it suitable for harsh environments.
The maximum peak pulse current capacity of the SA15A-E3/54 is 20.5 amperes, allowing it to effectively suppress transient voltage.
The Vishay SA15A-E3/54 is housed in a DO-15 package type, which is designed for through-hole mounting in circuits.
This model features a 2-pin configuration, facilitating easy integration into electronic circuits.
The diode complies with the automotive standard AEC-Q101, ensuring its reliability and performance in automotive applications.
The physical dimensions of the SA15A-E3/54 are a length of 7.6 mm and a diameter of 3.3 mm, making it compact for PCB layouts.
This diode is a uni-directional type, designed specifically for protecting circuits from voltage spikes in one direction.
The maximum reverse leakage current for the Vishay SA15A-E3/54 is 1μA, minimizing unwanted current flow during operation.
