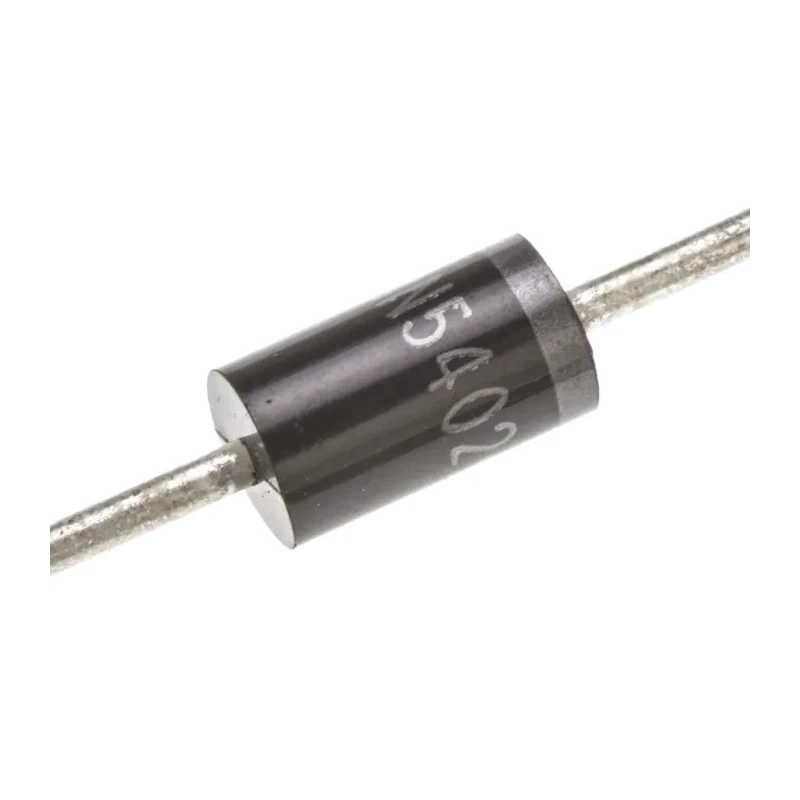

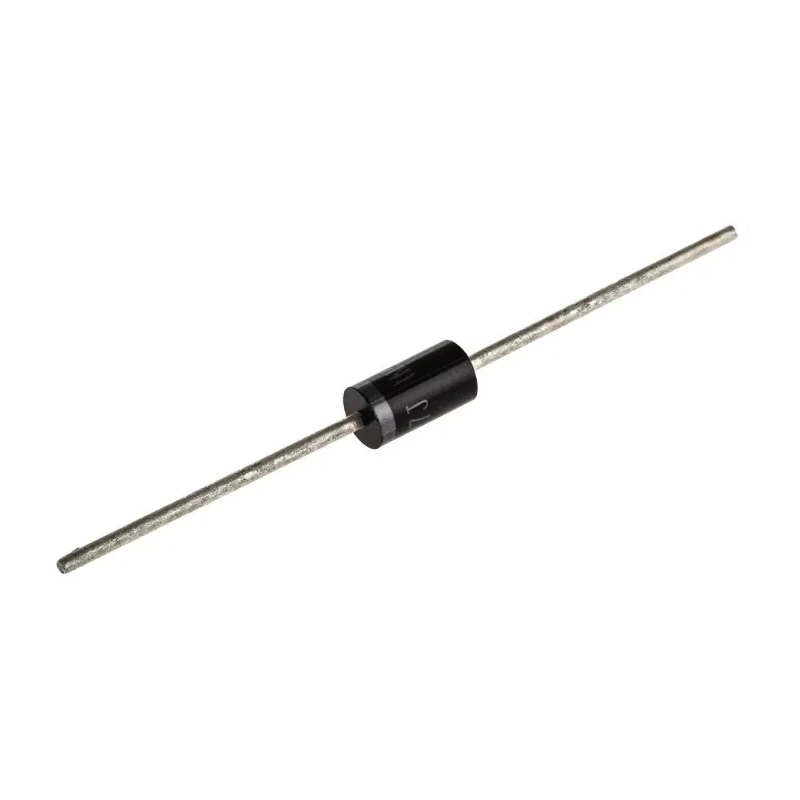

Vishay 200 V 3 A General Purpose Diode 2-Pin DO-201AD 1N5402-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N5402-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5402 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 200V 3A, Diode, 2-Pin DO-201AD 1N5402Brand | Vishay |
Key Features
- Designed for general purpose rectification in electronic circuits.
- Features a DO-201AD package with 2-pin through-hole mounting.
- Capable of handling peak non-repetitive forward surge current up to 200 A.
- Wide operating temperature range from -50°C to 150°C.
- Low forward voltage drop of 1.2 V for efficient operation.
- Matte tin plated leads ensure reliable solderability and durability.
- Moulded epoxy body with flame retardant UL94 V-O rating.
- Low leakage current and standard recovery time exceeding 500 ns.
Product Description
Vishay 1N5402-E3/54 is a general purpose semiconductor diode designed for reliable rectification tasks in industrial, commercial, and laboratory electronic equipment. This diode supports a maximum continuous forward current of 3 amperes and sustains a peak reverse repetitive voltage of 200 volts, making it suitable for moderate power circuits.
The device features a DO-201AD through-hole package with a moulded epoxy body, offering robust protection and compliance with UL94 V-O flame retardant standards. With a low forward voltage drop of 1.2 volts, the diode ensures minimal power loss and efficient conduction.
The diode can withstand peak non-repetitive forward surge currents up to 200 amperes, providing resilience under sudden high current spikes. Its operating temperature range from -50°C to 150°C allows application in diverse environmental conditions. The matte tin plated leads meet soldering standards J-STD-002 and JESD 22-B102 to assure easy and durable mounting on circuit boards.
Additional features include a leakage current limited to 5 microamperes and a recovery time greater than 500 nanoseconds, optimizing the diode for rectification duties in power supplies, inverters, freewheeling diodes, and converters.
General purpose rectifier diode suitable for various electronic applications. DO-201AD package with through-hole mounting provides mechanical stability. Maximum continuous forward current of 3 A supports medium power circuits.
Peak reverse repetitive voltage of 200 V protects against voltage surges. Low forward voltage drop of 1.2 V enhances efficiency. Peak surge current capability of 200 A withstands transient spikes. Wide temperature operating range from -50°C to 150°C ensures versatility.
Flame retardant moulded epoxy body assures safety and durability. Matte tin plated leads provide ease of soldering and reliability.
This Vishay diode is extensively used in industrial power supplies, inverters, and electronic converters requiring reliable rectification with robust electrical and thermal performance. It is a vital component in industrial, laboratory, and manufacturing electronic applications, meeting rigorous performance and safety standards. Explore more Diode solutions and semiconductor components on EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 3 amperes.
This diode has a peak reverse repetitive voltage rating of 200 volts.
The forward voltage drop of this model is 1.2 volts.
It can withstand a peak non-repetitive forward surge current of up to 200 amperes.
The operating temperature range is from -50°C to 150°C.
This model features a DO-201AD package with a through-hole mounting configuration.
The maximum peak reverse current is limited to 5 microamperes.
It has a moulded epoxy body with a flame retardant UL94 V-O rating and matte tin plated leads for reliable solderability.
The recovery time of this diode exceeds 500 nanoseconds, making it suitable for rectification duties.
The dimensions of this diode are 9.5 mm in length, 5.3 mm in width, and 5.3 mm in height.
It is suitable for various electronic applications including power supplies, inverters, and electronic converters.
The country of origin for this diode is India.
