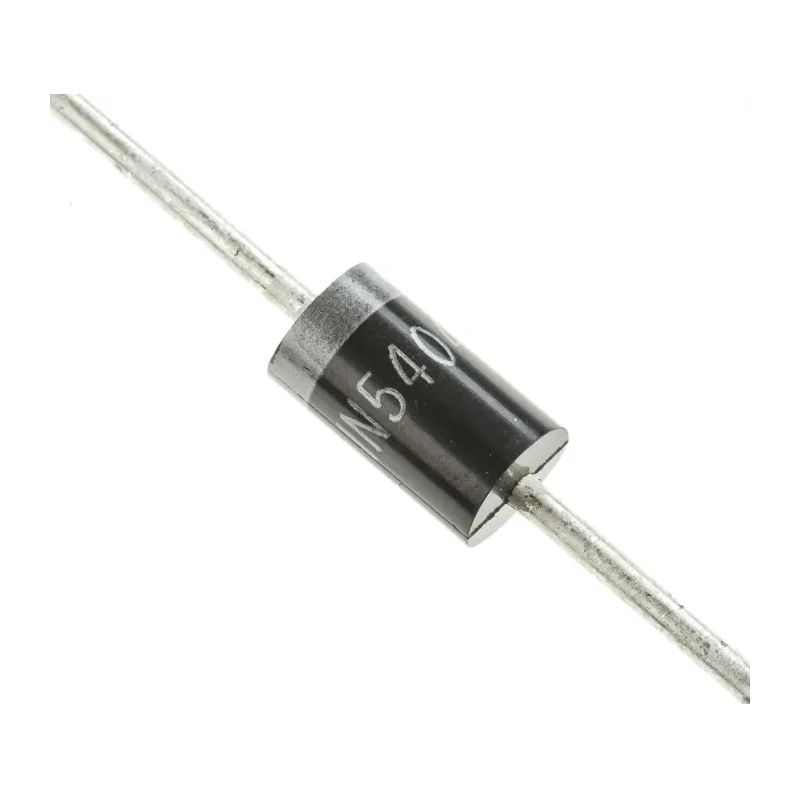

Vishay 400 V General Purpose 3 A Diode 2-Pin DO-201AD 1N5404-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N5404-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5404 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 400V 3A, Diode, 2-Pin DO-201AD 1N5404Brand | Vishay |
Key Features
- Capable of handling high forward surges up to 200 A.
- Low forward voltage drop of 1.2 V ensures efficiency.
- Wide operating temperature range from -50 °C to 150 °C.
- Constructed with a moulded epoxy body for durability.
- Matte tin plated leads compatible with J-STD-002 and JESD 22-B102 soldering standards.
- Flame retardant to UL94 V-O improves safety.
- Standard recovery time greater than 500 ns.
- Indicated cathode end by a colored band for polarity identification.
Product Description
Vishay 1N5404-E3/54 is a general purpose diode designed for various power rectification applications. It features a 400 V peak reverse repetitive voltage and a continuous forward current of 3 A, housed in a compact 2-pin DO-201AD through-hole package with moulded epoxy construction. This diode is ideal for applications such as converters, inverters, freewheeling diodes, and power supplies where reliable rectification is required.
The device supports a high surge current capability of 200 A non-repetitive forward surge current, ensuring robustness during transient conditions. A low forward voltage drop of 1.2 V enhances energy efficiency, while the device maintains a wide operational temperature range from -50 °C to 150 °C suitable for industrial use. The diode also features a standard recovery time exceeding 500 ns, making it competitively responsive for switching applications.
Construction includes matte tin-plated leads that comply with J-STD-002 and JESD 22-B102 solder dip standards, providing solderability assurance and reliability. The flame retardant UL94 V-O epoxy body ensures safety standards. Polarity is easily identified via the colored band marking the cathode end to facilitate correct installation.
Capable of handling high forward surges up to 200 A. Low forward voltage drop of 1.2 V ensures energy efficiency. Wide operating temperature range from -50 °C to 150 °C. Epoxy moulded body with flame retardant UL94 V-O compliance.
Matte tin-plated leads suitable for industry-standard soldering processes. Standard recovery time of greater than 500 ns. Colored band indicates cathode for easy identification.
The Vishay 1N5404-E3/54 Diode is manufactured in China under Vishay’s high-quality standards and offers dependable performance within industrial, electronics, and power management environments. This product is suitable for use in laboratory setups, industrial power supplies, and maintenance applications requiring general purpose rectification.
Browse the Vishay product range on EnvMart for a wide selection of semiconductor components designed for demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this diode is 400 V.
The maximum continuous forward current for the 1N5404-E3/54 is 3 A.
This diode can handle a peak non-repetitive forward surge current of 200 A.
The operating temperature range for this diode is from -50 °C to 150 °C.
It is housed in a 2-pin DO-201AD through-hole package.
The forward voltage drop of the 1N5404-E3/54 is 1.2 V.
The cathode end is indicated by a colored band for easy polarity identification.
The standard recovery time for this diode is greater than 500 ns.
The dimensions are 9.5 mm in length, 5.3 mm in width, and 5.3 mm in height.
This diode features a moulded epoxy body that is flame retardant to UL94 V-O standards.
The matte tin-plated leads comply with J-STD-002 and JESD 22-B102 soldering standards.
This diode is suitable for applications such as converters, inverters, freewheeling diodes, and power supplies.
