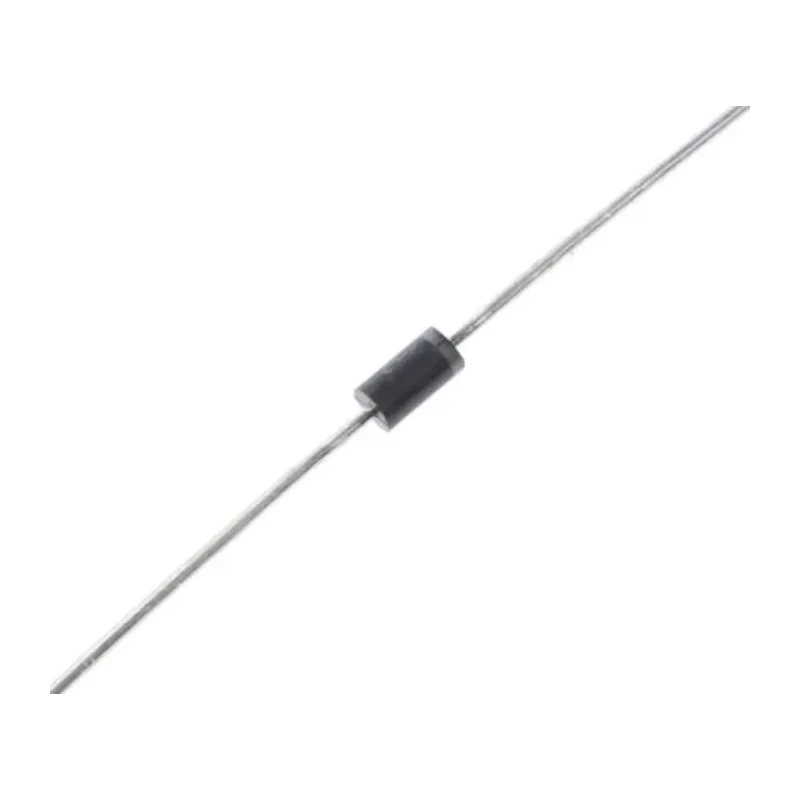

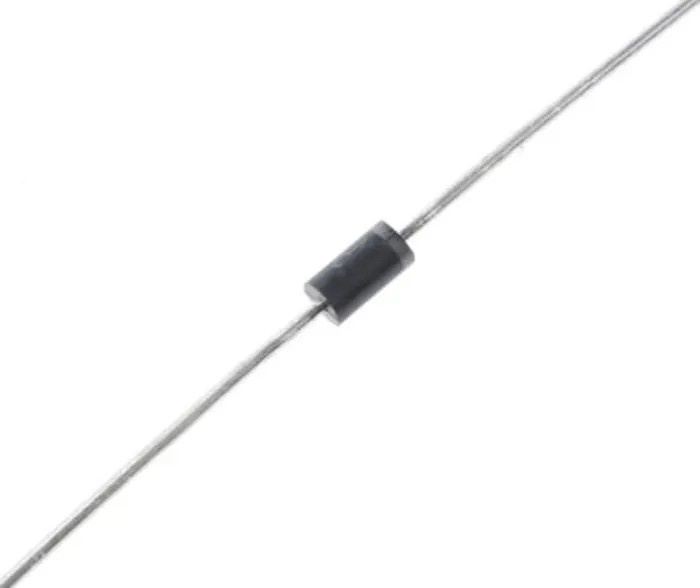

Vishay 50 V 1 A General Purpose Diode 2-Pin DO-204AL 1N4001-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | 1N4001-E3/54 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N4001 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 45A |
| Maximum Forward Voltage Vf | 1.1V |
| Vishay 50V 1A, Silicon Junction Diode, 2-Pin DO-204AL 1N4001Brand | Vishay |
| Vishay 400 V 1 A Diode General Purpose 2-Pin DO-204AL 1N4004-E3/54Brand | Vishay |
Key Features
- Designed for general purpose rectification and power supply applications.
- Features low forward voltage drop and low leakage current.
- Constructed with a plastic DO-204AL (DO-41) package with tin-plated leads.
- Operates within a junction temperature range from -50°C to 150°C.
- Supports peak non-repetitive forward surge current of 45 A.
- Dimensionally compact with 5.2 mm height and length, 2.7 mm diameter and width.
- Suitable for inverters, converters, and freewheeling diode uses in circuits.
Product Description
Vishay 1N4001-E3/54 is a general purpose silicon junction diode designed for electronic power rectification. It comes in a 2-pin DO-204AL package featuring tin-plated leads for ease of mounting through holes.
This diode is rated for a maximum continuous forward current of 1 A and a peak repetitive reverse voltage of 50 V, making it suitable for rectification and freewheeling diode applications in power supplies, inverters, and converters commonly used in industrial and commercial electronic equipment.
The device features a low forward voltage drop of 1.1 V and minimal leakage current of 5 µA, allowing efficient operation with minimal energy loss. It can withstand a peak non-repetitive forward surge current up to 45 A, supporting transient current spikes effectively.
The diode is built to operate reliably in harsh temperature environments from -50°C up to 150°C junction temperature, suitable for demanding industrial and automotive environments.
Physical dimensions are compact with a height and length of 5.2 mm, and a width and diameter of 2.7 mm, enabling easy incorporation into densely packed circuit boards. General purpose rectifier diode with 1 A forward current capacity.
DO-204AL plastic package with 2 pins and tin-plated leads. Low forward voltage drop and leakage current for efficient operation. Wide operating junction temperature range from -50°C to 150°C. Peak surge current capability of 45 A for transient handling.
Compact physical dimensions for versatile mounting. Applications include rectification in power supplies, inverters, and converters.
This diode is a reliable component for electronics manufacturing, laboratory, industrial, and HVAC equipment. Browse more Vishay Diodes and semiconductors on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 A.
The peak reverse repetitive voltage for this model is 50 V.
The forward voltage drop of this diode is 1.1 V.
It can handle a peak non-repetitive forward surge current of up to 45 A.
The operating temperature range for this diode is from -50°C to 150°C.
The physical dimensions are 5.2 mm in height and length, with a diameter and width of 2.7 mm.
This diode comes in a DO-204AL package.
The leakage current specification for this diode is 5 µA.
This diode is designed for through-hole mounting.
This diode is suitable for general purpose rectification in power supplies, inverters, and converters.
The diode configuration of this model is single.
The diode features a plastic package with tin-plated leads.
