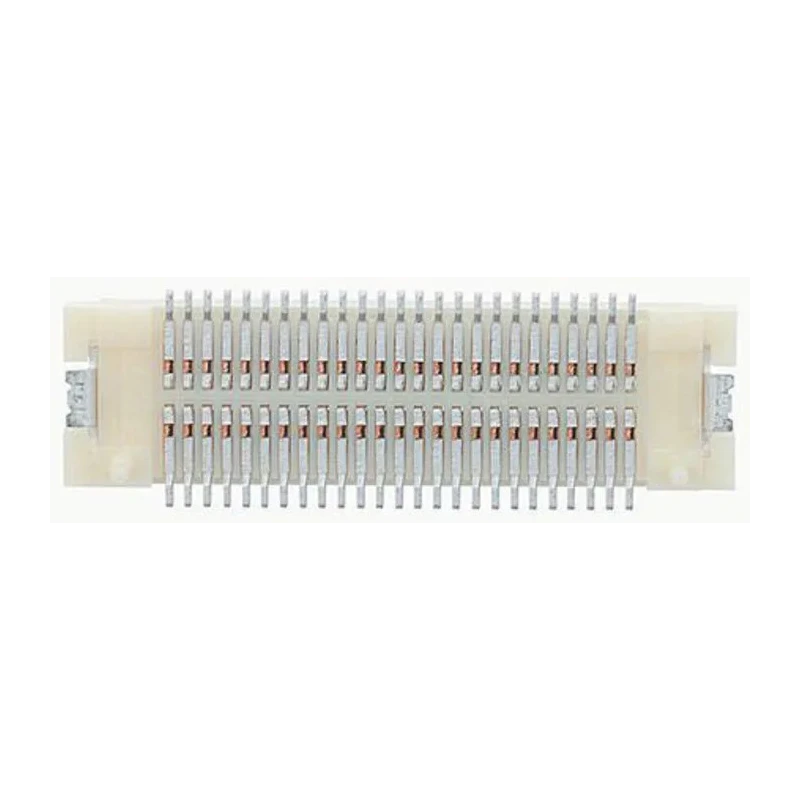

Hirose DF17 Series 0.5 mm Pitch Straight Surface PCB Header, 60 Contacts, 2 Row, Shrouded DF17

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF17 Series 0.5 mm Pitch Straight Surface PCB Header, 60 Contacts, 2 Row, Shrouded DF17

Name: Hirose DF17 Series 0.5 mm Pitch Straight Surface PCB Header, 60 Contacts, 2 Row, Shrouded DF17
Brand: Hirose
SKU: 343071
Price: 20.22 USD
Availability: InStock



Category PCB Headers Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	50V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF17
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DF17
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Compact 0.5 mm pitch ensures high-density PCB connections.
60 male contacts arranged in 2 rows for reliable mating.
Shrouded housing protects contacts from damage and contamination.
Constructed with polyamide housing and gold-plated copper alloy contacts for durability.
Rated for 300 mA current and 50 V voltage with solder termination for secure mounting.
Designed for surface mount technology and straight orientation on PCB.
Supports operating temperatures from -35°C to 85°C suitable for diverse environments.
Shock-proof structure provides resistance against mechanical stress and impact.

Product Description

Hirose DF17 Series 0.5 mm Pitch Straight Surface PCB Header DF17 is a high-density, reliable board-to-board connector featuring 60 contacts arranged in 2 rows and a robust shrouded design. This connector provides excellent electrical continuity and mechanical stability with its gold-plated copper alloy contacts and polyamide housing.

The compact 0.5 mm pitch and surface mount design allow efficient PCB interconnections, supporting currents up to 300 mA and voltages up to 50 V. It operates effectively between -35°C and 85°C, accommodating a wide range of industrial and commercial applications.

This series incorporates shock-proof structure to withstand impact drops, making it ideal for portable electronic devices such as LCD equipment and mobile telecommunication products. The shrouded housing and scoop-proof bellows contact design enhance protection of mating connections, reducing damage risks.

Additional mechanical features include metal fittings for PCB retention and mounting bosses that increase stability on circuit boards, enhancing durability under mechanical stress.

Compact 0.5 mm pitch for densely packed circuits. Male contact with gold plating for optimum conductivity. Shrouded connector ensures protection and reliability. Shock-proof design compatible with mobile applications. Wide temperature range from -35°C to 85°C.

Surface mount type suitable for modern PCB assembly. Durable polyamide housing with metal reinforcement. Robust mechanical retention via mounting bosses. Ideal for LCD, portable and telecommunication equipment. Manufactured in Japan guaranteeing quality assurance.

This product is a vital component in electronic assembly, suitable for industrial and commercial PCB connector needs. Explore more Hirose connectors and PCB Headers at EnvMart for high-performance industrial electronics solutions.
