TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20/±30 % 2.15 A Idc VLCF5020T-4R7N1R4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-4R7N1R4 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 2.15A |
| Maximum DC Resistance | 96mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Features a magnetically shielded construction to reduce magnetic interference.
- Wirewound inductor designed for surface mounting using a 5020 package.
- Inductance tolerance is ±20/±30 % ensuring performance within specified limits.
- Maximum DC resistance is 96 mΩ for efficient power handling.
- Operates within -40°C to 105°C temperature range for reliability in diverse conditions.
- Ferrite core enhances magnetic properties for smooth inductance.
- Compatible with tape and reel packaging for automated assembly.
- Ideal for power source inductors in mobile devices and DC to DC converters.
Product Description
TDK VLCF5020T-4R7N1R4 is a professional-grade shielded wirewound surface mount inductor featuring a ferrite core with an inductance of 4.7 μH and maximum DC current rating of 2.15 A. This inductor is designed for compact PCB applications requiring reliable magnetic performance, housed in a 5020 package case measuring 5.3 mm by 5 mm by 2 mm.
The magnetic shielding construction minimizes external electromagnetic interference, making it suitable for densely packed electronics. The ±20/±30 % inductance tolerance guarantees consistent performance under varying operational conditions. It features a maximum DC resistance of 96 milliohms, maintaining efficient power conversion with minimal losses.
Rated for continuous operation between -40°C and 105°C, this inductor is built to sustain functionality in automotive and industrial ambient temperatures. The ferrite core enhances magnetic permeability, optimizing its inductive properties for filtering and energy storage in power electronics.
TDK’s VLCF5020T series inductors come packaged in tape and reel format, facilitating efficient automated assembly lines and reducing handling damage during integration.
This versatile inductor finds primary applications in power supply circuits of mobile devices such as hard disk drives (HDDs), digital video cameras (DVCs), and digital still cameras (DSCs), as well as LCD displays and other DC to DC converters. It complies with RoHS environmental standards, ensuring restriction of hazardous substances in manufacturing.
Magnetically shielded wirewound construction for reduced EMI. Surface mount package 5020 with compact dimensions. Inductance: 4.7 μH with ±20/±30 % tolerance. Max DC current: 2.15 A with low resistance (96 mΩ). Operating temperature range from -40°C to 105°C.
Ferrite core material for enhanced performance. RoHS compliant for environmental safety. Tape & reel packaging suitable for automated assembly. Ideal for power inductors in electronic mobile devices and DC to DC converters.
Explore more Surface Mount Inductors on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with an inductance tolerance of ±20/±30 %.
This inductor has a maximum DC current rating of 2.15 A.

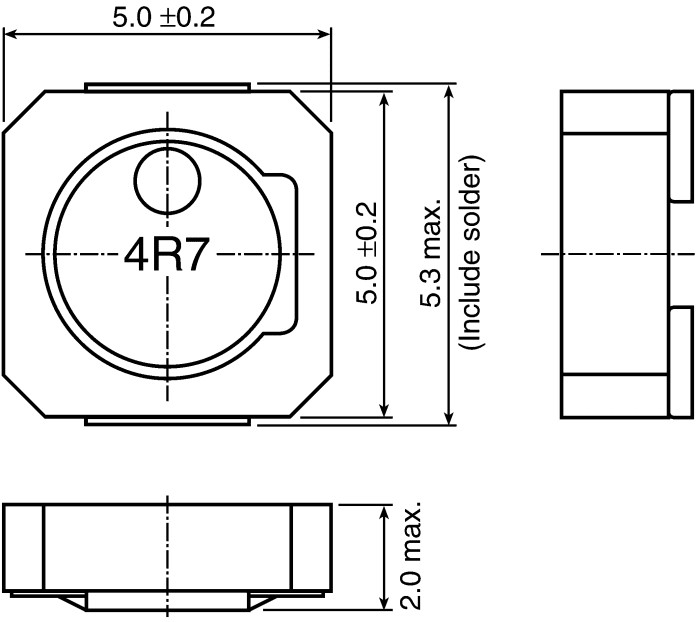

The dimensions of the 5020 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
It operates within a temperature range of -40°C to 105°C.
The core material used in this inductor is ferrite, which enhances its magnetic properties.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
The maximum DC resistance is 96 mΩ, allowing for efficient power handling.
Yes, it complies with RoHS environmental standards, which restrict hazardous substances in manufacturing.
This inductor features a wirewound construction with magnetic shielding to reduce electromagnetic interference.
It is primarily used in power supply circuits for mobile devices, including hard disk drives, digital video cameras, and DC to DC converters.
This model belongs to the VLCF series of inductors.
The termination style of this inductor is surface mount, designed for compact PCB applications.
