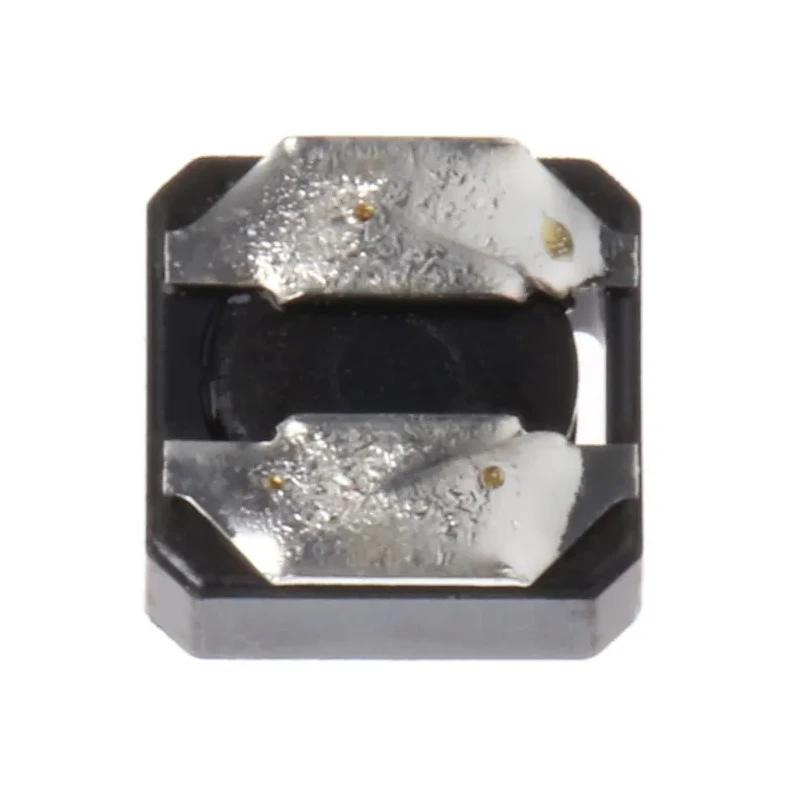

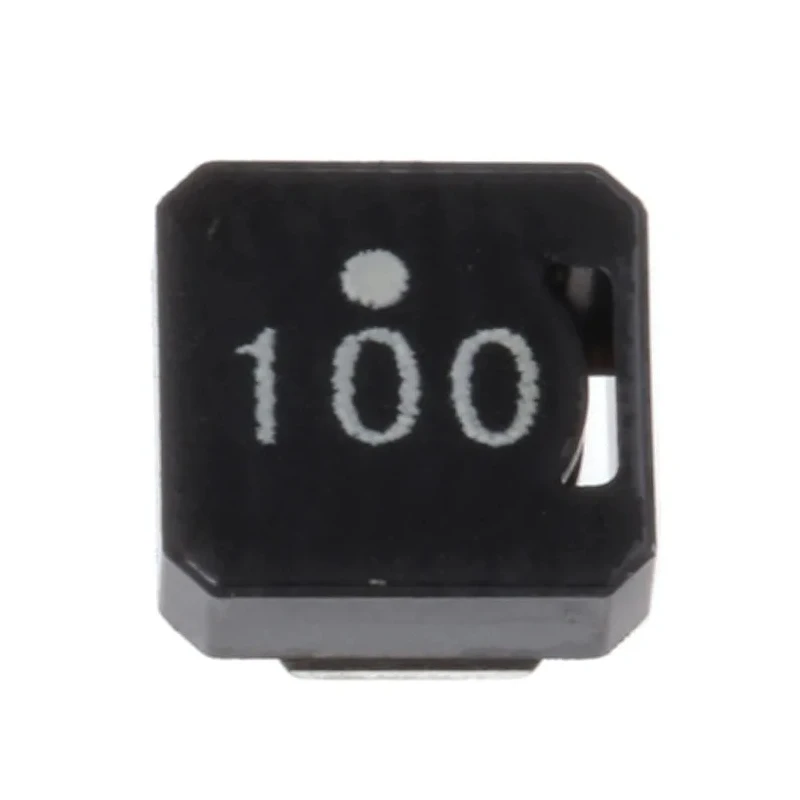

TDK Shielded Wirewound Surface Mount Inductor 10μH ±20/±30% 1.5A DC Current Ferrite Core 5020 Package VLCF5020T-100M1R1-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-100M1R1-1 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 5020 |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 237mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound construction provides low electromagnetic interference.
- Compact 5020 surface mount package measuring 5.3mm length, 2mm height, and 5mm depth.
- Inductance tolerance of ±20% to ±30% for flexible circuit designs.
- Maximum DC resistance of 237 milliohms enables efficient power delivery.
- Rated for operating temperatures from -40°C to 105°C for robust industrial applications.
- Ferrite core material ensures stable magnetic properties and performance.
- Manufactured under RoHS directive compliance ensuring environmental safety.
- Termination style is surface mount, suitable for automated PCB assembly.
Product Description
TDK VLCF5020T-100M1R1-1 is a high-quality shielded wirewound surface mount inductor featuring a ferrite core with an inductance of 10μH and a maximum DC current rating of 1.5 A. This component is designed in the compact 5020 package with dimensions 5.3mm by 2mm by 5mm, which makes it suitable for modern surface mount technology applications.
The inductor has an inductance tolerance of ±20% to ±30%, allowing for flexibility in precise electronic circuit designs. Its maximum DC resistance of 237 milliohms helps maintain energy efficiency in power supply circuits. The device supports a wide operating temperature range of -40°C to 105°C, making it reliable under varied environmental conditions.
Constructed with a ferrite core and magnetically shielded wirewound technology, the VLCF5020 series from TDK minimizes electromagnetic interference, ideal for sensitive power applications. This inductor is RoHS compliant, ensuring it meets environmental directives for hazardous substances.
With surface mount termination, the inductor is optimized for automated PCB assembly lines, enhancing production efficiency. Typical uses include power source inductors for portable mobile devices like HDDs, digital video cameras, digital still cameras, LCD displays, and other DC to DC converter circuits.
Magnetically shielded wirewound construction for low EMI. Compact 5020 package ideal for space-constrained designs. Inductance tolerance of ±20% to ±30% supports design variability. Low DC resistance of 237mΩ for efficient power operation.
Wide temperature range -40°C to 105°C for harsh environments. Ferrite core ensures stability and high performance. RoHS compliant manufacturing process. Surface mount termination suited for automated manufacturing. Applications include mobile devices, HDDs, DVCs, DSCs, LCD displays, and DC to DC converters.
This Surface Mount Inductor is an excellent choice for engineers and designers working on advanced power management solutions across industrial, consumer electronics, and telecommunications sectors. Explore the TDK range of electronic components on EnvMart for reliable and industry-proven products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10μH.
This inductor has a maximum DC current rating of 1.5A.
The 5020 package measures 5.3mm in length, 2mm in height, and 5mm in depth.
The maximum DC resistance is 237 milliohms.
It is rated for operating temperatures from -40°C to 105°C.
The core material used in this model is ferrite.
Yes, it is manufactured under RoHS directive compliance, ensuring it meets environmental safety standards.
This inductor features a surface mount termination style, suitable for automated PCB assembly.
The inductance tolerance is ±20% to ±30%.
This inductor is typically used in power source applications for mobile devices, HDDs, digital video cameras, and DC to DC converter circuits.
The inductor is packaged in tape and reel format.
This model belongs to the VLCF series of inductors.
