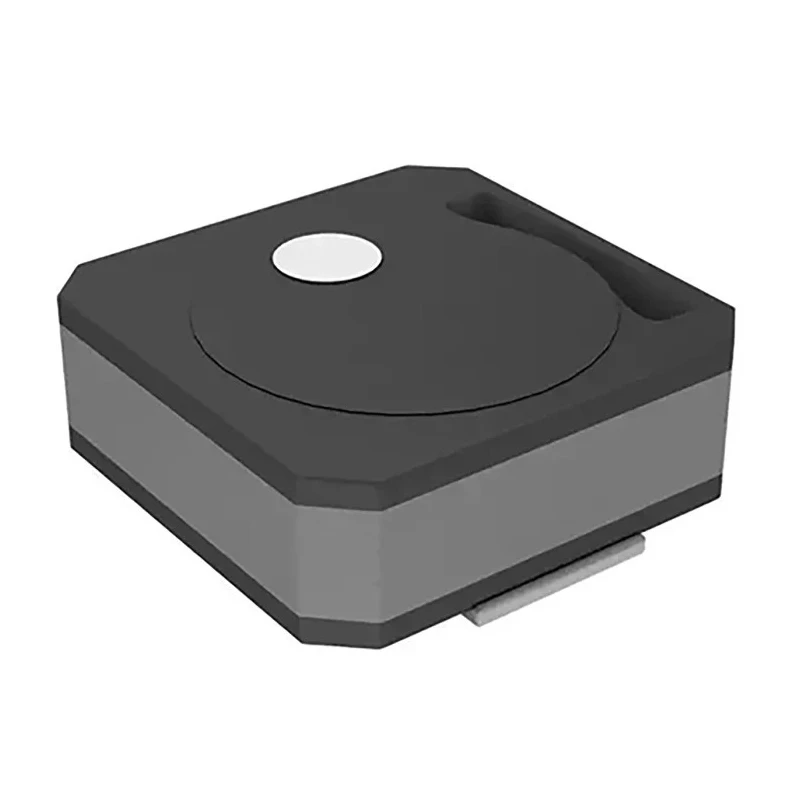

TDK 5020 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20/±30% 520 mA Idc VLCF5020T-101MR27
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-101MR27 |
| Depth | 5mm |
| Packaging | Taping |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 520mA |
| Maximum DC Resistance | 1.581Ω |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Compact 5020 package size measuring 5.3mm length, 5mm depth, and 2mm height.
- Magnetically shielded wirewound construction for high performance in power circuits.
- Maximum operating temperature of 105°C suitable for robust applications.
- Low maximum DC resistance of 1.581Ω minimizes power loss.
- Designed for surface mount termination style with taped packaging for easy PCB assembly.
- Ferrite core material ensures stable inductance and shielding efficiency.
- Operating temperature range from -40°C to 105°C supports diverse environmental conditions.
- RoHS compliant, meeting environmental safety standards.
Product Description
TDK VLCF5020T-101MR27 is a high-quality shielded wirewound Surface Mount Inductor from the VLCF series, featuring a ferrite core and 100 μH inductance with ±20/±30% tolerance and a maximum DC current rating of 520 mA. This component is designed to provide reliable performance in power circuits where magnetic shielding and compact size are critical.
The inductor comes in a space-saving 5020 package case, with dimensions of 5.3mm length, 5mm depth, and 2mm height, facilitating high-density PCB layouts. Its wirewound construction with a ferrite core provides excellent magnetic shielding, reducing electromagnetic interference in sensitive applications.
Featuring a low maximum DC resistance of 1.581Ω, this inductor ensures minimal power loss. It operates reliably across a wide temperature range from -40°C to 105°C, making it suitable for industrial, commercial, and consumer electronics environments.
Packaged with tape for surface mount assembly, it complies with RoHS environmental directives, supporting eco-friendly manufacturing standards. The TDK VLCF5020T-101MR27 is commonly used in DC-DC converters, mobile device power supplies such as HDDs, DVCs, DSCs, and LCD displays, where stable inductance and effective shielding are essential.
Compact and shielded wirewound surface mount design. Ferrite core material for stable inductance and shielding. Low DC resistance for energy efficiency. Wide operating temperature range from -40°C to 105°C. RoHS compliant for environmentally safe use.
Optimized for power source applications in mobile devices and display technology. Reliable magnetic shielding reduces electromagnetic interference. Taped packaging suitable for automated PCB assembly. Standard 5020 package size supports dense electronic layouts.
Inductance tolerance suitable for general-purpose electronics. Explore more high-performance TDK inductors and other electronics components at EnvMart for industrial and commercial electronics engineering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 μH with a tolerance of ±20/±30%.
This inductor has dimensions of 5.3mm in length, 5mm in depth, and 2mm in height.
The maximum DC current rating for this unit is 520 mA.
The maximum DC resistance is 1.581Ω, which helps minimize power loss.
It operates reliably across a temperature range from -40°C to 105°C.
This model features a ferrite core material, which ensures stable inductance and effective shielding.
The termination style is surface mount, designed for easy PCB assembly.
It is packaged with tape for convenient surface mount assembly.
Yes, this model is RoHS compliant, meeting environmental safety standards.
It is commonly used in DC-DC converters and power supplies for mobile devices and displays.
This inductor belongs to the VLCF series.
The country of origin for this model is India.
