TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20/±30 % 1.56 A Idc VLCF5020T-100MR87
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-100MR87 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 5020 |
| Maximum DC Current | 1.56A |
| Maximum DC Resistance | 182mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Featuring a high magnetic shield construction for reduced electromagnetic interference.
- Wirewound construction ensures precise inductance and stable performance.
- Surface mount termination style and tape & reel packaging for automated PCB assembly.

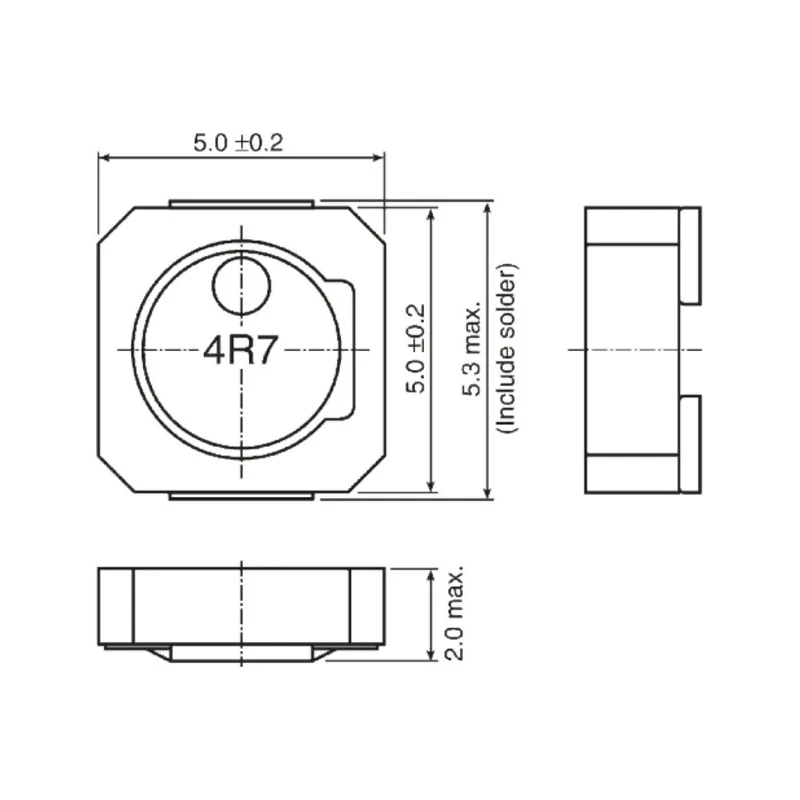

- Compact 5020 package with dimensions 5.3 mm length, 2 mm height, and 5 mm depth.
- Supports operating temperatures from -40°C to 105°C, suitable for various industrial applications.
- Complies with RoHS Directive ensuring environmentally friendly materials.
- Ideal for power sources in mobile devices such as hard disk drives, digital video cameras, and LCD displays.
- Inductance tolerance of ±20/±30 % for versatile circuit requirements.
Product Description
TDK VLCF5020T-100MR87 shielded wirewound surface mount inductor provides reliable inductance performance with a ferrite core rated at 10 μH and a maximum DC current of 1.56 A. This component is designed for power circuits requiring stable and precise inductance characteristics.
Constructed with a high magnetic shield, the inductor minimizes electromagnetic interference, making it suitable for sensitive electronic environments. The wirewound design enhances inductance accuracy and current handling capabilities.
Housed in a 5020 package with compact dimensions of 5.3 mm length, 2 mm height, and 5 mm depth, it is optimized for space-saving surface mount technology (SMT) applications. The tape and reel packaging supports automated manufacturing processes, improving production efficiency.
Operating temperature range from -40°C to 105°C allows deployment in diverse industrial and commercial applications, including mobile device power supplies such as HDDs, digital video cameras, and LCD displays. The inductor complies with the RoHS Directive, ensuring its construction from environmentally safe materials.
High magnetic shield construction for EMI reduction. Wirewound core for precise inductance. Surface mount termination style for SMT assembly. Compact 5020 package size suitable for space-limited PCB layouts. Wide operating temperature range from -40°C to 105°C.
RoHS compliant for environmental safety. Applications include mobile power sources and DC to DC converters. Inductance tolerance ±20/±30 % for flexibility in design. This TDK surface mount inductor is ideal for use in industrial, electronic manufacturing, telecommunications, and other applications requiring reliable power inductors.
Explore more products in the Surface Mount Inductor category at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with an inductance tolerance of ±20/±30%.
This inductor has a maximum DC current rating of 1.56 A.
The dimensions of the 5020 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
It operates within a temperature range of -40°C to 105°C, making it suitable for various industrial applications.
The core material used in this inductor is ferrite, which helps in reducing electromagnetic interference.
It is packaged in tape and reel format, which supports automated PCB assembly processes.
The maximum DC resistance of this model is 182 mΩ.
Yes, it complies with the RoHS Directive, ensuring it is made from environmentally friendly materials.
This inductor is ideal for power sources in mobile devices such as hard disk drives, digital video cameras, and LCD displays.
It features a wirewound construction, which ensures precise inductance and stable performance.
The termination style of this inductor is surface mount, suitable for SMT applications.
This model belongs to the VLCF series of inductors.
