TDK Wirewound Shielded Surface Mount Inductor with Ferrite Core 10 μH ±20/±30 % 1.56 A DC Current VLCF5020T-100MR87
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-100MR87 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 5020 |
| Maximum DC Current | 1.56A |
| Maximum DC Resistance | 182mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a 5020 package size ideal for compact circuit boards.
- Constructed with a ferrite core and magnetic shielding for minimal interference.
- Supports a maximum DC current of 1.56 A, ensuring reliable performance.
- Rated for operation between -40°C and 105°C temperatures.
- Surface mount design with moulded wirewound construction for durability.
- Complies with RoHS Directive for environmental safety.
- Packaging is tape and reel, facilitating automated PCB assembly.
- Maximum DC resistance is 182 mΩ, ensuring low power loss.
Product Description
TDK VLCF5020T-100MR87 is a high-quality wirewound surface mount inductor featuring magnetic shielding and a ferrite core that delivers 10 μH inductance with ±20/±30 % tolerance. This inductor supports a maximum DC current of 1.56 A and is designed to operate reliably within a temperature range from -40°C to 105°C, making it suitable for demanding industrial and commercial electronics applications.

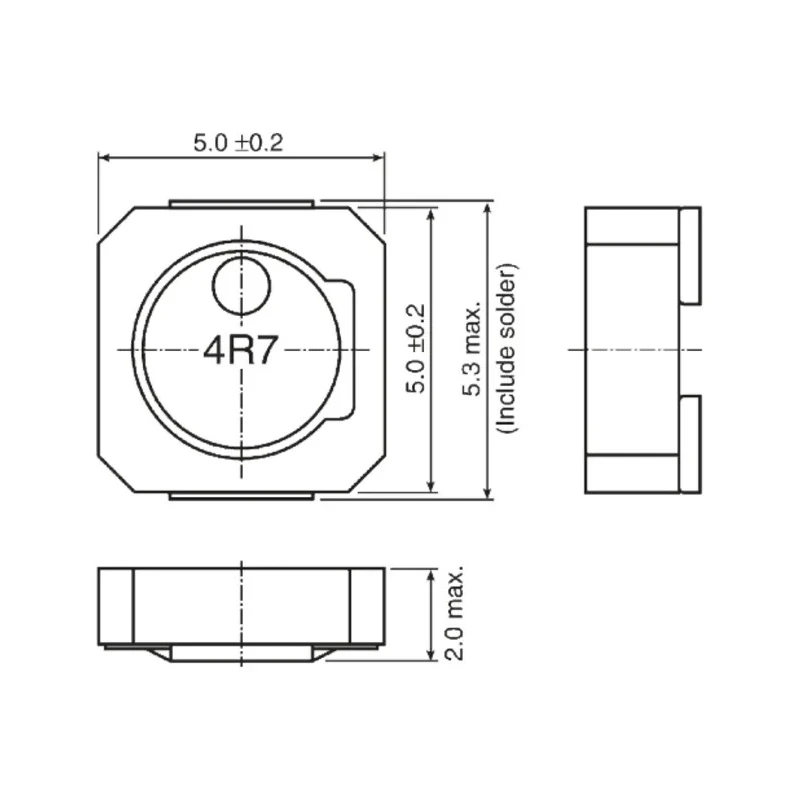

The inductor comes in a compact 5020 package size measuring 5.3mm in length, 5mm in depth, and 2mm in height. Its construction includes a moulded wirewound design, providing strong mechanical stability and excellent reliability for surface mount technology (SMT) assembly.
Magnetic shielding minimizes electromagnetic interference, making the VLCF5020T model ideal for integration into power circuits, especially for portable DC to DC converters found in devices such as hard disk drives, digital video cameras, LCD displays, and other consumer electronics.
This product complies with the RoHS Directive, meeting environmental and safety standards. It is packaged in tape and reel, supporting efficient placement during automated manufacturing processes.
The inductor features a 5020 package size ideal for compact circuit boards. Constructed with a ferrite core and magnetic shielding for minimal interference. Supports a maximum DC current of 1.56 A, ensuring reliable performance.
Rated for operation between -40°C and 105°C temperatures. Surface mount design with moulded wirewound construction for durability. Complies with RoHS Directive for environmental safety. Packaging is tape and reel, facilitating automated PCB assembly.
Maximum DC resistance is 182 mΩ, ensuring low power loss.
This TDK VLCF5020T-100MR87 inductor is an excellent choice for industrial, electronic manufacturing, consumer electronics, and power management applications requiring reliable, shielded inductors with compact surface mount form factors. Explore more electronics components and Surface Mount Inductors in the EnvMart catalog for your circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 10 μH with a tolerance of ±20/±30 %.
This model supports a maximum DC current of 1.56 A.
The dimensions of the 5020 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
The inductor is rated for operation between -40°C and 105°C.
It is constructed with a ferrite core, which provides magnetic shielding to minimize interference.
The inductor is packaged in tape and reel, which facilitates automated PCB assembly.
The maximum DC resistance is 182 mΩ, ensuring low power loss.
This model features a wirewound construction, which provides strong mechanical stability.
Yes, it complies with the RoHS Directive for environmental safety.
It is suitable for use in power circuits, particularly in portable DC to DC converters and consumer electronics.
The termination style of this inductor is surface mount, designed for SMT assembly.
This inductor belongs to the VLCF series.
