TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±5% 320 mA Idc Q:30 NLV32T-2R2J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-2R2J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 320mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 75MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features

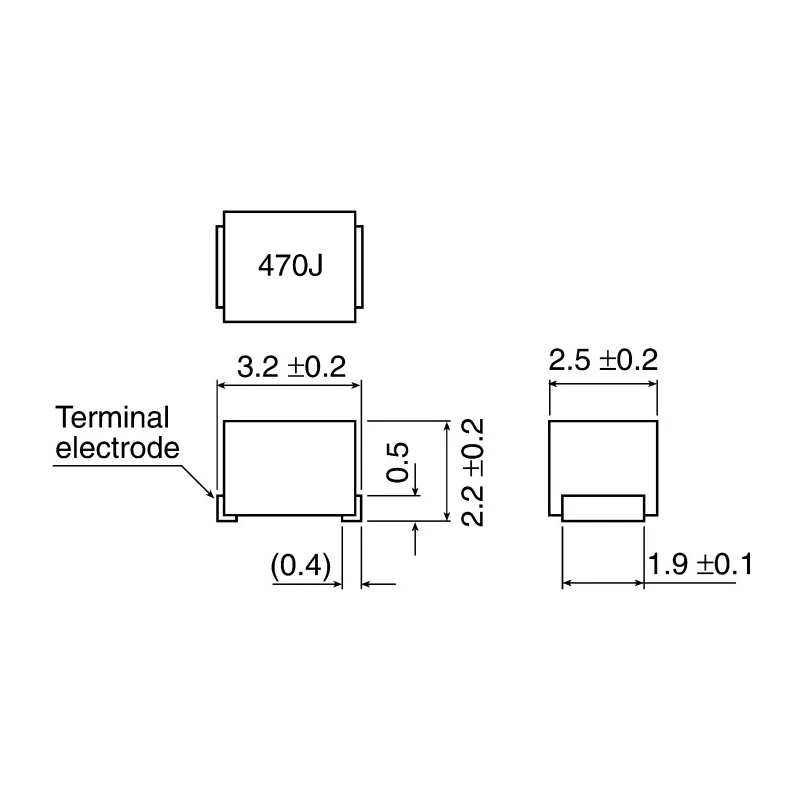

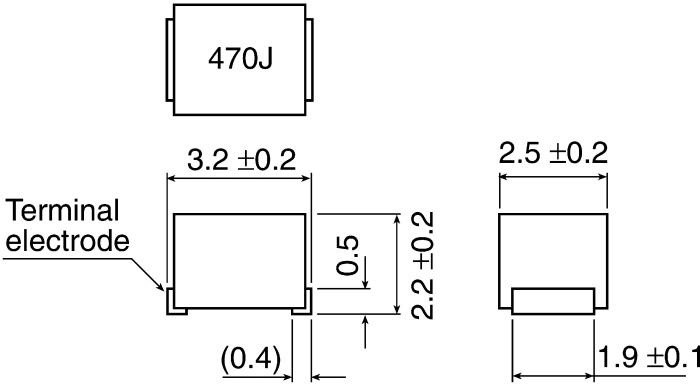

- The inductor features a 1210 package size with dimensions 3.2 mm length, 2.2 mm height, and 2.5 mm depth.
- It is constructed with a ferrite core and wirewound design providing a maximum self-resonant frequency of 75 MHz.
- Shielded with a thermoplastic molded exterior for high heat resistance and durability.
- Operating temperature range covers from -40°C to +105°C suitable for harsh environments.
- RoHS compliant ensuring environmental safety and quality standards.
- Ideal for use in TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU systems, and hard disk drives.
- Surface mount termination style facilitates easy PCB assembly for high volume manufacturing.
- Pin count includes 2 pins compatible with standard surface mount processes.
Product Description

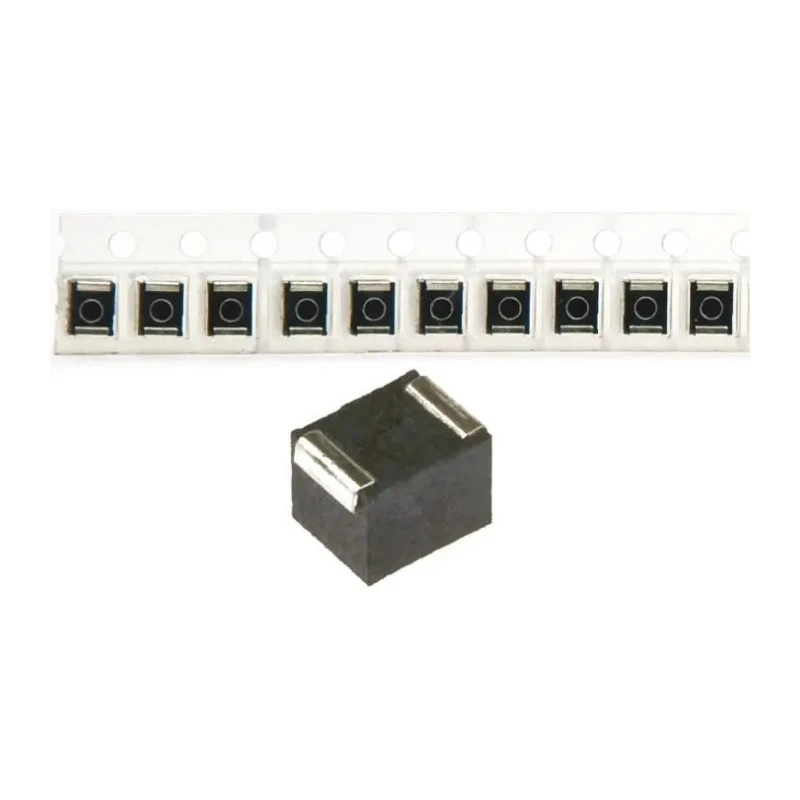

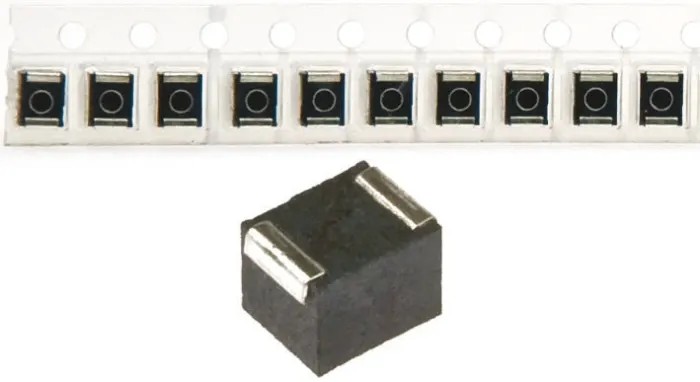

TDK NLV32T-2R2J-PF is a high-performance 1210 shielded wirewound surface mount inductor designed with a ferrite core. It has a nominal inductance of 2.2 μH with ±5 % tolerance and supports a maximum DC current of 320 mA. This inductor features a high-quality factor (Q) of 30, ensuring sharp frequency response for precise signal filtering applications.
The compact dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth enable space-saving layouts on printed circuit boards. It is encapsulated with a heat-resistant thermoplastic molding that provides mechanical protection and shields against electromagnetic interference.
Operating reliably across a broad temperature range from -40°C to +105°C, the device is suitable for use in automotive and consumer electronics applications. The inductor complies with RoHS directives for environmental and health safety.
This Surface Mount Inductor is widely used in electronic systems such as televisions, VCRs, digital imaging devices, xDSL broadband modems, automotive audio, electronic control units (ECUs), and hard disk drive assemblies. Its surface mount termination style and 2-pin configuration are conducive to automated assembly lines, improving production efficiency.
2.2 μH inductance with ±5 % tolerance. Maximum DC current of 320 mA for reliable operation. 1210 package size with compact footprint. Ferrite core with wirewound construction for high performance. Shielded and molded for electromagnetic protection and durability.
Operating temperature range: -40°C to +105°C suitable for harsh environments. RoHS compliant ensuring environmental safety. High quality factor (Q) of 30 enabling sharp signal filtering. Maximum self-resonant frequency of 75 MHz for broad frequency applications.
Surface mount termination style for easy PCB mount. Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, and more. Explore more high-quality inductors and passive components in the Electronics Components category available at EnvMart.
