TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±5% 320 mA Idc Q30 NLV32T-2R2J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-2R2J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 320mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 75MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Inductance value of 2.2 microhenry with ±5% tolerance ensures precision.
- Maximum DC current rating of 320 mA supports moderate current applications.
- Constructed with a ferrite core for enhanced magnetic performance.
- Surface mount design with 1210 package case for easy PCB integration.
- High quality factor of 30 provides sharp frequency response.
- Maximum operating temperature of 105°C with a minimum of -40°C suits diverse environments.
- Maximum DC resistance is 1 ohm, optimizing power efficiency.
- Inductor construction is wirewound and shielded to minimize interference.
Product Description

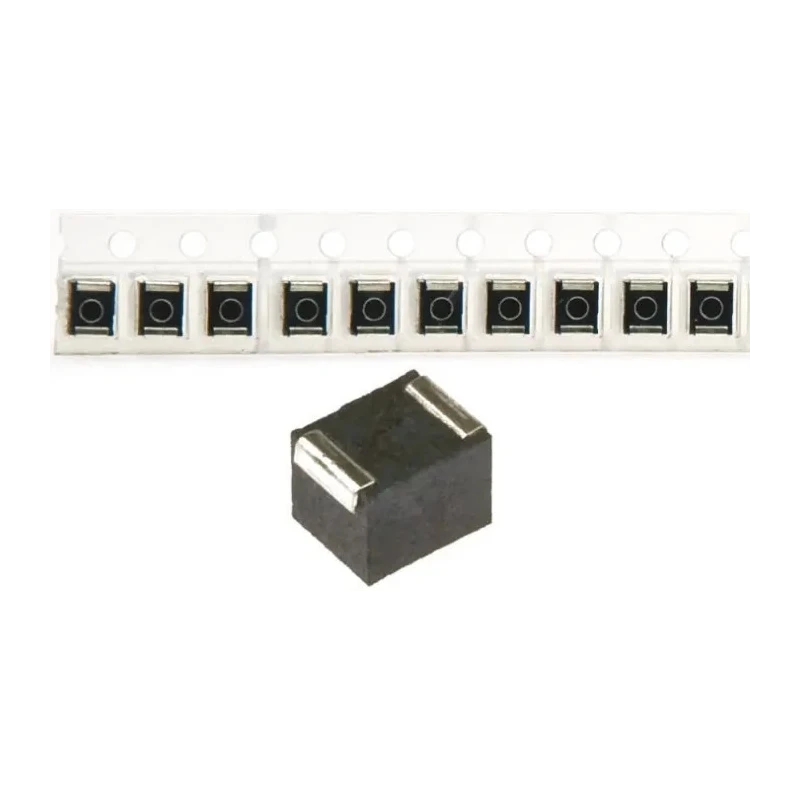

TDK NLV32T-2R2J-PF is a shielded wirewound surface mount inductor with a ferrite core, featuring an inductance of 2.2 microhenry (μH) with ±5% tolerance and a maximum DC current of 320 mA. This 1210 package size component provides high-quality performance suitable for various industrial and commercial electronics applications. The ferrite core construction enhances magnetic characteristics to ensure efficient operation in signal line circuits.
With a high quality factor (Q) of 30, this inductor delivers a sharp frequency response, critical for RF and signal filtering applications. Its maximum operating temperature of 105°C and minimum operating temperature of -40°C make it reliable across various operating environments. The maximum DC resistance of 1 ohm supports energy-efficient current flow while surface mount termination style simplifies PCB assembly processes.
The inductor is moulded with heat-resistant thermoplastic resin, providing durability and protection against thermal stress. Its shielding design minimizes electromagnetic interference, benefiting sensitive electronic devices including TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU systems, and hard disk drives (HDDs).
The NLV-PF series is known for its compact size and robust performance in signal line and power applications. Precise 2.2 μH inductance with ±5% tolerance for accurate signal processing. 320 mA maximum DC current rating, suitable for moderate signal currents.
1210 package size allows for compact PCB layouts. Ferrite core supports high magnetic permeability and stability. Shielded wirewound construction reduces EMI and enhances signal integrity. Operates reliably between -40°C and +105°C temperature range.
Low DC resistance of 1 ohm reduces power losses. Moulded thermoplastic resin exterior offers high heat resistance. Ideal for industrial, consumer electronics, and automotive signal line applications. Manufactured in Japan, ensuring quality and reliability.
Explore a wide range of Surface Mount Inductors and related components at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 2.2 microhenry (μH) with a tolerance of ±5%.
The maximum DC current rating for this model is 320 mA, suitable for moderate current applications.

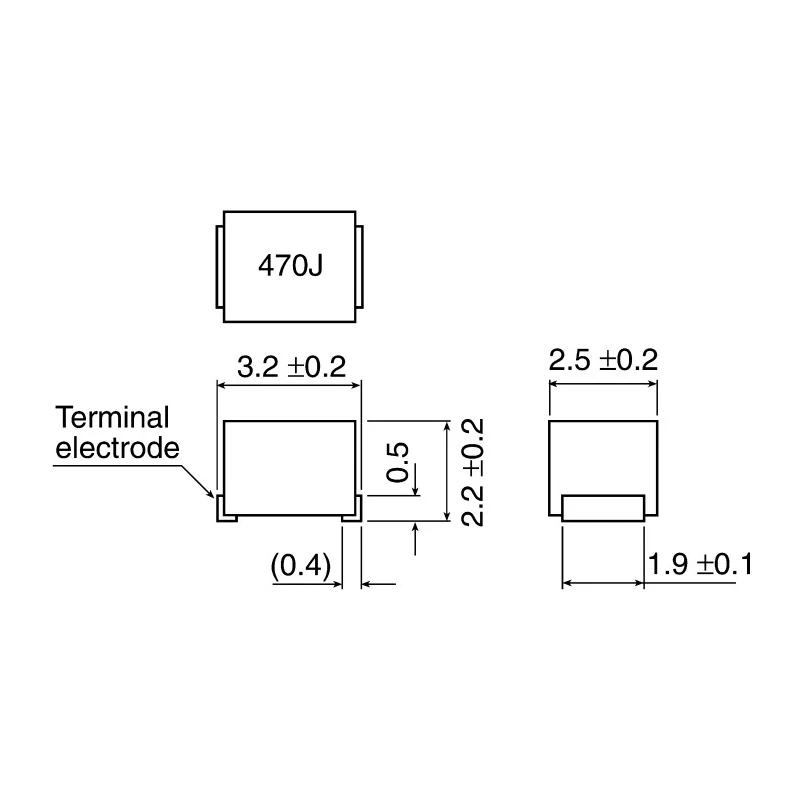

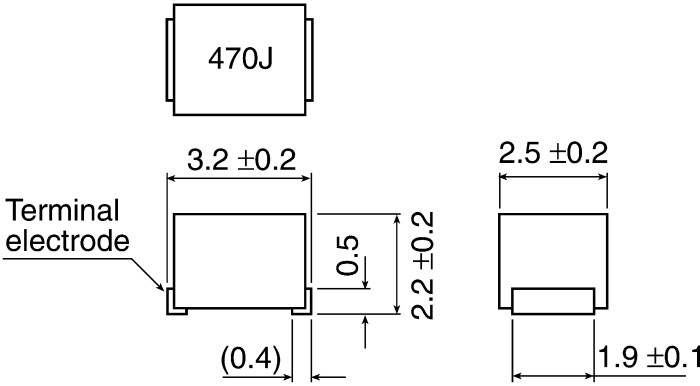

This inductor has a height of 2.2 mm, a length of 3.2 mm, and a depth of 2.5 mm.
The maximum operating temperature of this inductor is 105°C, while the minimum is -40°C.
It features a wirewound construction and is shielded to minimize electromagnetic interference.
The maximum DC resistance of this inductor is 1 ohm, which helps optimize power efficiency.
This model has a minimum quality factor of 30, providing a sharp frequency response.
The core material of this inductor is ferrite, which enhances magnetic performance.
It comes in a 1210 package size, making it suitable for compact PCB layouts.
This inductor is suitable for applications including TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU systems, and hard disk drives (HDDs).
This inductor complies with RoHS standards, ensuring it meets environmental regulations.
The maximum self-resonant frequency of this inductor is 75 MHz, suitable for RF applications.
