TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10μH ±5 % 150mA Idc Q:30 NLV32T-100J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-100J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 150mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.1Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 30MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Inductor features a 1210 package size with a length of 3.2mm and height of 2.2mm.
- Maximum DC current rating is 150 mA, suitable for low power signal line applications.
- Constructed with a ferrite core and wirewound design for high quality performance.
- Operates within a temperature range of -40°C to 105°C with a maximum DC resistance of 2.1Ω.
- Offers a high quality factor (Q) of 30 and maximum self-resonant frequency of 30 MHz.
- Surface mount termination style with shielding and moulded thermoplastic resin package.
- Complies with RoHS standards ensuring environmental compliance.
- Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
Product Description

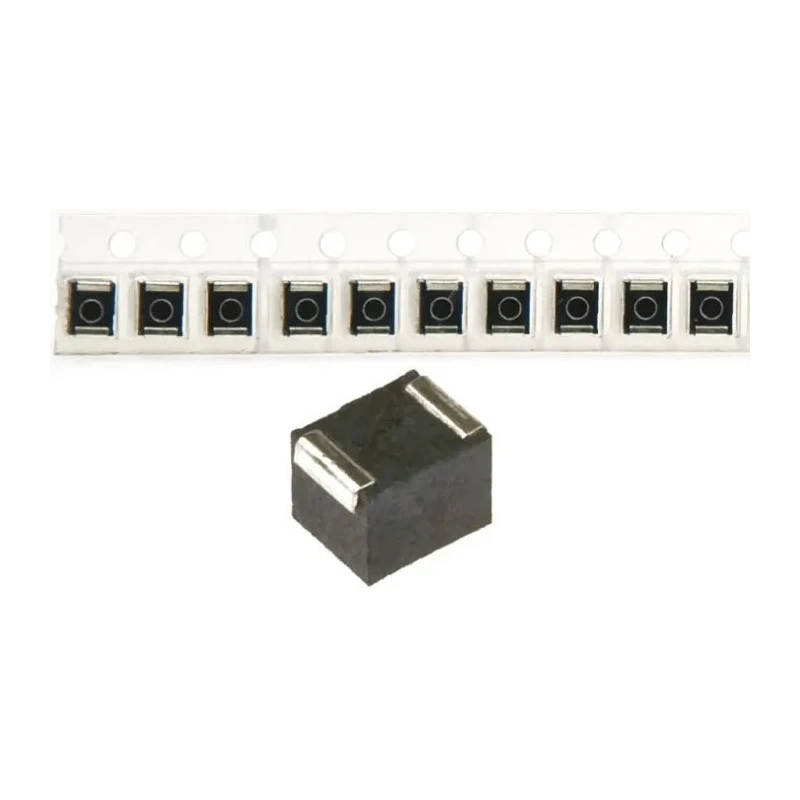

TDK NLV32T-100J-PF is a shielded wirewound surface mount inductor featuring a ferrite core designed for reliable operation in electronic equipment requiring high-frequency inductance.

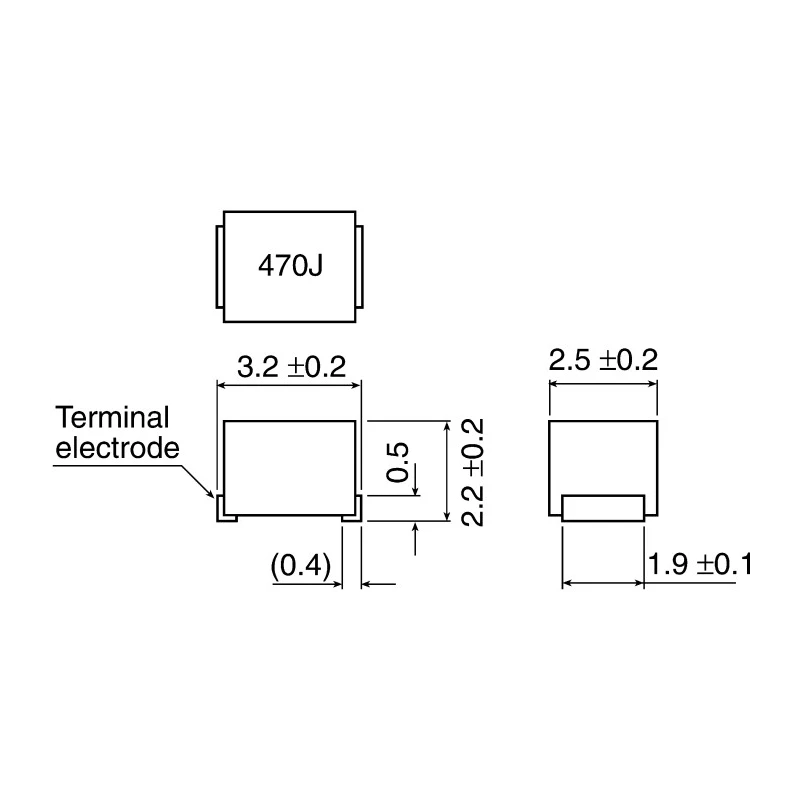

This 1210 package size inductor has dimensions of 3.2mm length, 2.2mm height, and 2.5mm depth, making it suitable for compact PCB designs. It supports a maximum DC current of 150 mA with a low DC resistance of 2.1Ω, ensuring minimal power loss and good efficiency.
The device operates between -40°C and 105°C, with a high quality factor of 30 and a maximum self-resonant frequency of 30 MHz, optimal for various signal line applications. The inductor is housed in a heat-resistant thermoplastic resin moulded package with shielded construction for EMI reduction.
Higher Q factor enables sharp frequency response necessary for advanced electronic designs. RoHS compliant material and manufacturing process promotes environmental sustainability. The compact surface mount design supports automated assembly for efficient production.
Common applications include consumer electronics such as TVs, VCRs, digital cameras, xDSL modems, automotive audio systems, ECU modules, and hard disk drives. The inductor is tailored for use in industrial, commercial, automotive, and consumer electronics circuits.
Choose this TDK NLV-PF series inductor for dependable, high-performance inductance in surface mount applications. Explore more Surface Mount Inductors and electronic components on EnvMart for optimal circuit design solutions.
