TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±5 % 110 mA Idc Q:30 NLV32T-220J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-220J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 110mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.7Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Features wirewound construction with ferrite core for stable inductance values.
- Provides a maximum DC current rating of 110 mA ensuring reliable current handling.

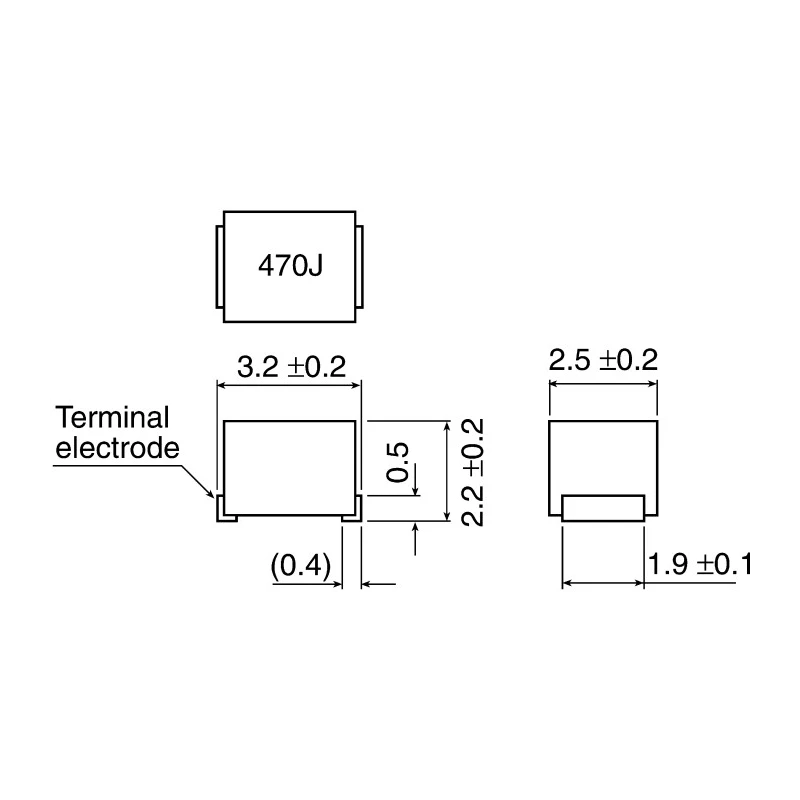

- Comes in a 1210 package size with dimensions of 3.2 mm length, 2.5 mm depth, and 2.2 mm height.
- Operates safely within temperature range from -40°C to 105°C for wide environmental suitability.
- Includes shielding to reduce electromagnetic interference in sensitive circuits.
- Quality factor minimum rating of 30 guarantees sharp frequency response.
- Compliant with RoHS standards and molded with high heat resistant thermoplastic resin.
- Ideal for use in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
Product Description

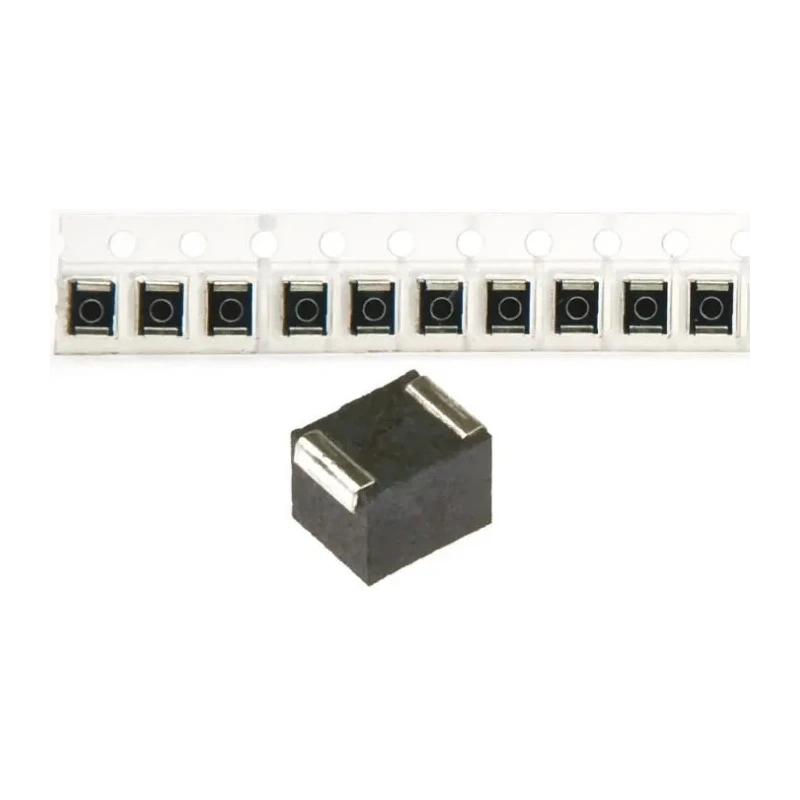

TDK's NLV32T-220J-PF model is a 1210 shielded wirewound surface mount inductor featuring a ferrite core, designed to provide precise inductance of 22 μH with ±5 % tolerance. Rated for a maximum DC current of 110 mA, this component supports reliable operation in compact electronic assemblies.
The inductor case measures 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, making it suitable for space-constrained surface mount applications. It operates efficiently across a wide temperature range from -40°C to 105°C, with a maximum DC resistance of 3.7 Ω, ensuring stable performance under demanding electrical and thermal conditions.
This TDK NLV-PF series component is shielded to mitigate electromagnetic interference and molded with a thermoplastic resin that withstands high heat. Its minimum quality factor of 30 supports sharp frequency responses, making it ideal for signal line applications.
Typical uses include integration into TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU systems, and hard disk drives, evidencing its versatility in consumer electronics and automotive devices.
Wirewound construction enhances inductance stability. Shielding reduces interference and noise. High temperature resistance ensures durability. Compact 1210 package fits dense circuit boards. RoHS compliant for environmental safety.
Suitable for diverse electronics and automotive systems.
This product is manufactured in Japan, certified RoHS compliant, and offered new in condition. TDK's extensive quality control guarantees reliability in industrial, automotive, and consumer electronics applications. Explore more in Surface Mount Inductors to find components tailored for your design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±5 %.
It has a maximum DC current rating of 110 mA, ensuring reliable current handling.
The dimensions are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
It operates within a temperature range of -40°C to 105°C.
This inductor features a ferrite core, which helps in providing stable inductance values.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The minimum quality factor is rated at 30, which supports sharp frequency responses.
The maximum DC resistance is 3.7 Ω.
It uses a surface mount termination style, suitable for compact electronic assemblies.
Typical applications include TVs, VCRs, digital cameras, xDSL, car audio systems, ECU systems, and hard disk drives.
The maximum self-resonant frequency is 20 MHz.
This inductor has a pin count of 2.
