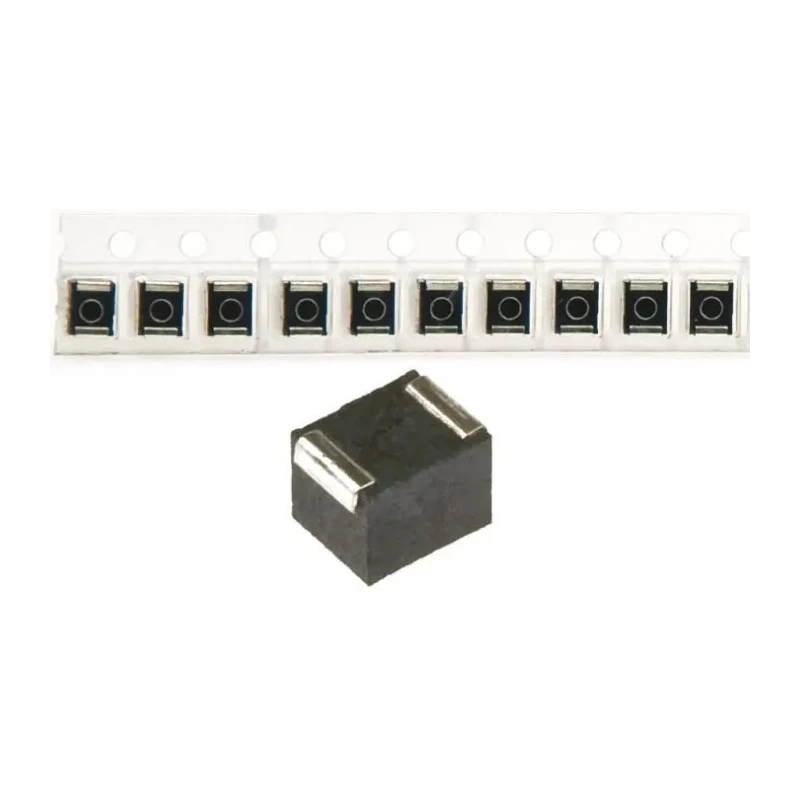

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 82 nH ±5% 450 mA Idc Q:27 NLV32T-082J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-082J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 82nH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 450mA |
| Pin Count | 2 |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 900MHz |
| Minimum Quality Factor | 27 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Features a ferrite core for enhanced magnetic properties.
- High quality factor (Q) of 27 ensures sharp frequency response.
- Comes with a shielded wirewound construction for noise reduction.

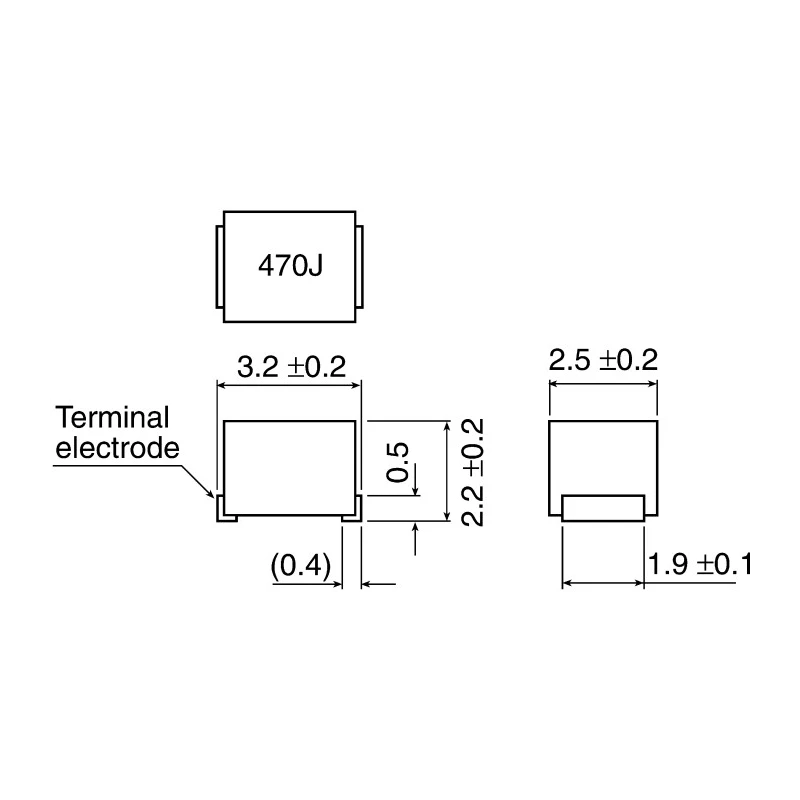

- Package type is 1210 with dimensions 3.2mm length, 2.2mm height, and 2.5mm depth.
- Moulded thermoplastic resin exterior provides high heat resistance and durability.
- Operating temperature range from -40°C to +105°C.
- Maximum DC resistance is 400 mΩ for efficient conductivity.
- Suitable for use in surface mount technology with 2-pin termination style.
Product Description
TDK NLV32T-082J-PF is a 1210 size shielded wirewound surface mount inductor featuring a ferrite core, providing 82 nH inductance with a tolerance of ±5% and a high Q factor of 27. It supports a maximum DC current of 450 mA with a maximum operating temperature of 105°C, making it suitable for various consumer and industrial electronics applications.
The inductor's wirewound construction ensures superior performance in signal line applications with enhanced frequency response due to its high-quality factor. The shielded design reduces electromagnetic interference, improving circuit reliability. Thermoplastic resin moulding on the package adds mechanical strength and heat resistance.
Its compact package dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth, along with 2-pin surface mount termination, allow easy integration into PCB assemblies. The maximum DC resistance is 400 mΩ, supporting power efficiency and reducing loss.
Designed to comply with RoHS standards, the NLV32T-082J-PF is environmentally compliant and suitable for applications including TVs, VCRs, digital cameras, xDSL modems, automotive audio systems, electronic control units (ECUs), and hard disk drives (HDDs). The operating temperature range of -40°C to +105°C facilitates use in various environmental conditions.
Ferrite core enhances magnetic properties for inductance stability. High Q factor provides sharp frequency response in signal processing. Shielding minimizes electromagnetic interference for sensitive circuits. Compact 1210 package suitable for high-density PCB assembly.
Thermoplastic resin moulding offers durability and thermal stability. Wide operating temperature range ensures performance in diverse environments. RoHS compliant ensuring eco-friendly manufacturing and disposal. Applications extend across consumer electronics and automotive systems.
This surface mount inductor is a versatile component ideal for industrial, consumer electronics, communication equipment, automotive, and other technical applications. Browse more Surface Mount Inductors at EnvMart to find complementary components and variants suited for your designs and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 82 nH with a tolerance of ±5%.
It supports a maximum DC current of 450 mA.
The dimensions of this inductor are 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth.
The operating temperature range is from -40°C to +105°C.
This inductor features a ferrite core, enhancing its magnetic properties.
The quality factor (Q) of this inductor is 27, ensuring a sharp frequency response.
The maximum DC resistance is 400 mΩ, which supports efficient conductivity.
It has a surface mount termination style with 2 pins.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing and disposal.
This inductor is suitable for applications including TVs, VCRs, digital cameras, xDSL modems, automotive audio systems, electronic control units (ECUs), and hard disk drives (HDDs).
The maximum self-resonant frequency is 900 MHz.
It utilizes a wirewound construction, which provides superior performance in signal line applications.
