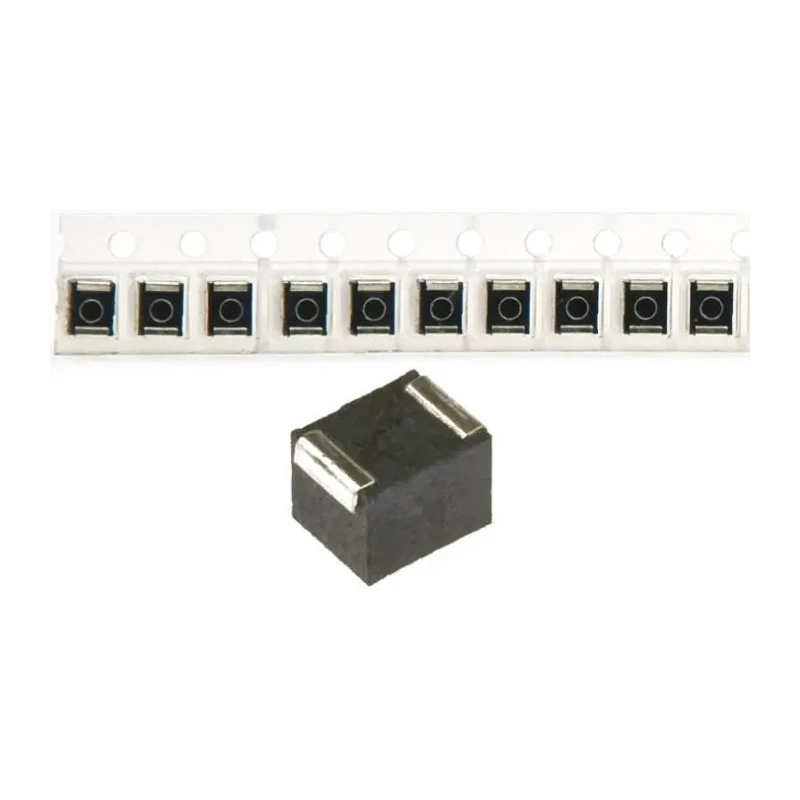

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 82 nH ±5% 450 mA Idc Q:27 NLV32T-082J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-082J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 82nH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 450mA |
| Pin Count | 2 |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 900MHz |
| Minimum Quality Factor | 27 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Wirewound construction with a ferrite core ensures high-quality inductance and stability.
- Compact 1210 package with surface mount design suitable for modern PCBs.
- Maximum DC current of 450 mA with maximum DC resistance of 400 mΩ.
- Operates reliably across a temperature range from -40°C to 105°C.
- High quality factor (Q) of 27 for sharp frequency response.
- Shielded design reduces electromagnetic interference effectively.
- RoHS compliant for environmental safety standards.
- Suitable for applications in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
Product Description
TDK NLV32T-082J-PF is a 1210 shielded wirewound surface mount inductor featuring a ferrite core, offering an inductance value of 82 nH with ±5% tolerance and a rated maximum DC current of 450 mA.
This inductor exhibits a high quality factor (Q) of 27 at a maximum self-resonant frequency of 900 MHz, making it ideal for precise frequency-sensitive applications. The compact 1210 surface mount package measures 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, suitable for modern compact PCB designs.
Constructed with a robust wirewound coil on a ferrite core, it ensures stable inductive performance and excellent heat resistance with a molded thermoplastic resin exterior. The component operates reliably over a broad temperature range of -40°C to +105°C.
The component is shielded to minimize electromagnetic interference in demanding industrial, automotive, consumer electronics, and communication systems.
Common applications include use in televisions, videocassette recorders, digital cameras, xDSL modems, car audio systems, electronic control units (ECU), and hard disk drives (HDDs).
Wirewound construction with a ferrite core ensures high-quality inductance and stability. Compact 1210 package suitable for surface mount technology (SMT) assembly. Maximum DC current is rated at 450 mA with a low DC resistance of 400 mΩ.
Operating temperature range from -40°C to 105°C provides reliable performance in varied environments. High quality factor (Q) of 27 ensures sharp frequency response. Shielded design minimizes electromagnetic interference for sensitive circuits.
Compliance with RoHS environmental standard. Ideal for industrial, consumer electronics, HVAC, automotive, and communication manufacturing applications. This product is manufactured in Japan, ensuring high quality and reliability.
Explore the Electronics Components category on EnvMart for additional Surface Mount Inductors and related electronic components with detailed specifications and high manufacturing standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of the TDK NLV32T-082J-PF is 82 nH with a tolerance of ±5%.
This inductor has a maximum DC current rating of 450 mA.

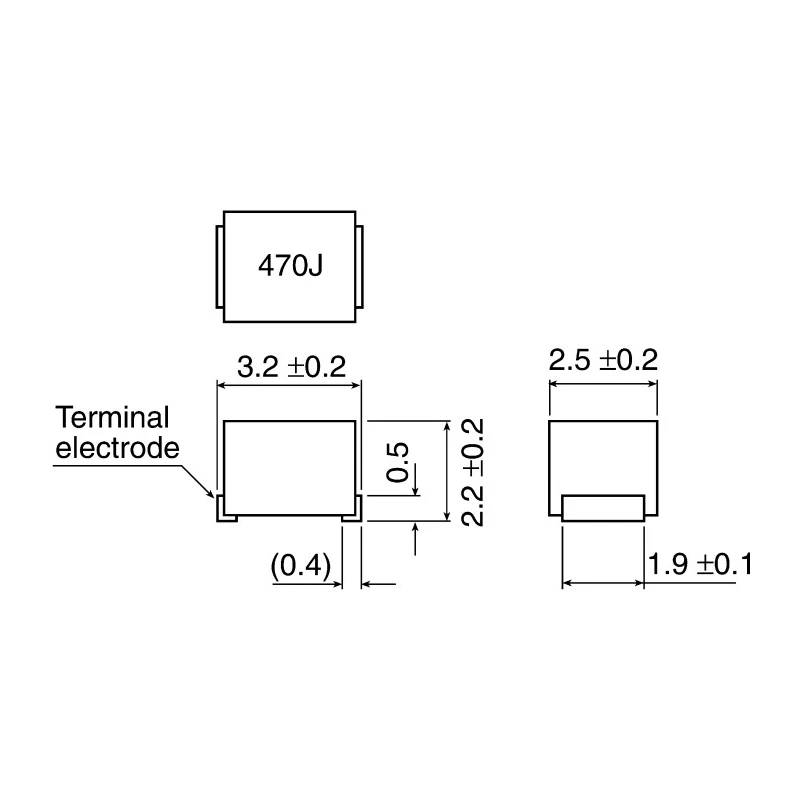

The dimensions of the 1210 package are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
It operates reliably over a temperature range from -40°C to 105°C.
The maximum self-resonant frequency of this inductor is 900 MHz.
The shielded design effectively reduces electromagnetic interference, making it suitable for sensitive applications.
This model has a minimum quality factor (Q) of 27, ensuring sharp frequency response.
Common applications include use in TVs, VCRs, digital cameras, xDSL, car audio systems, ECU systems, and HDDs.
The maximum DC resistance is 400 mΩ.
It features a wirewound construction with a ferrite core and a molded thermoplastic resin exterior.
Yes, the TDK NLV32T-082J-PF is RoHS compliant, adhering to environmental safety standards.
This inductor utilizes a surface mount termination style, suitable for SMT assembly.
