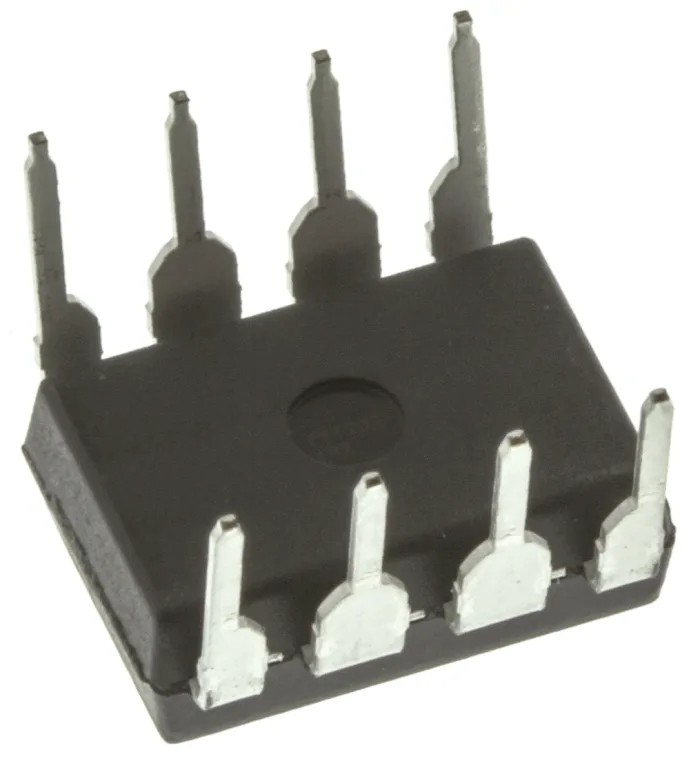

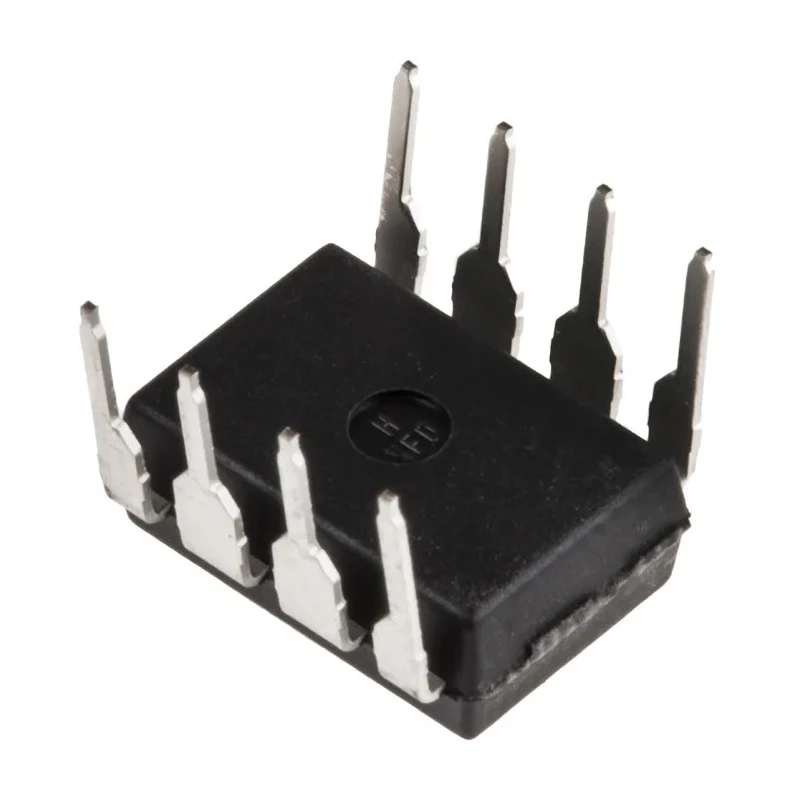

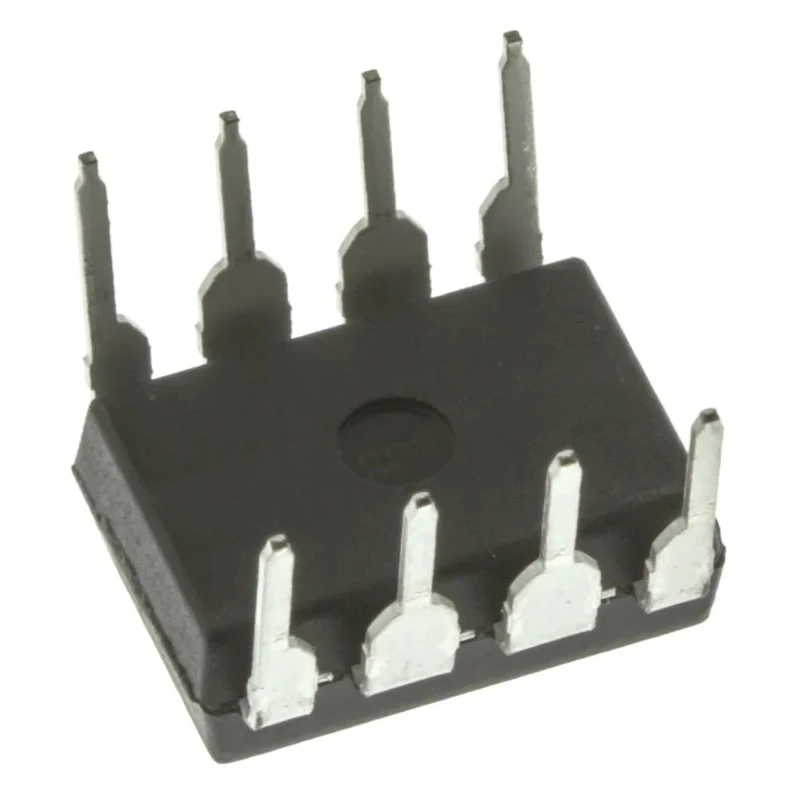

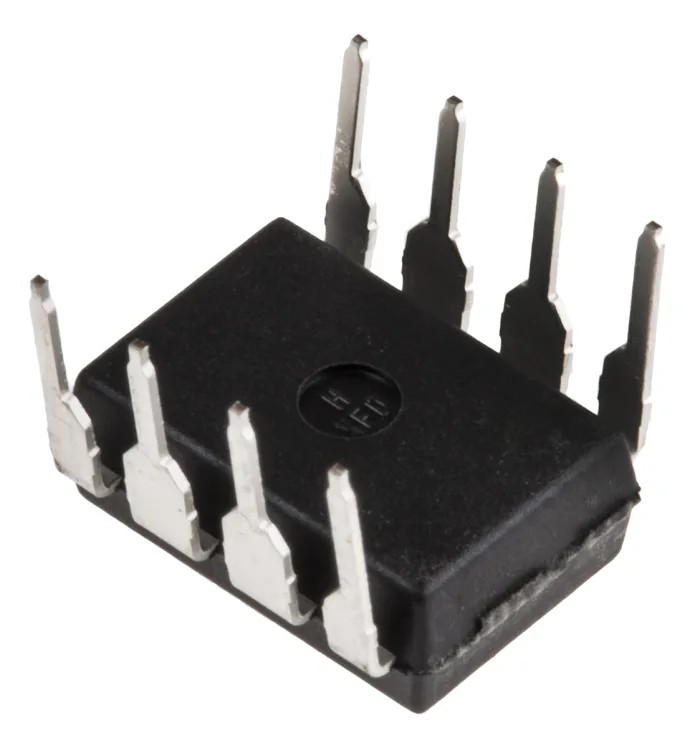

Broadcom DC Input Optocoupler, Through Hole, 8-Pin PDIP, Transistor Output, 1MBd, 25mA Input Current 6N136-000E
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Broadcom |
| Model | 6N136-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | 6N136 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC, EN, CSA, UL |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 50% |
| Minimum Current Transfer Ratio | 19% |
| Broadcom 6N136-300E DC Input Optocoupler, Surface, 8-Pin PDIPBrand | Broadcom |
| Opto-isolator,6N136 DIP8 1Mb/sBrand | Avago Technologies |
Key Features
- Operates at a maximum data rate of 1 MBd for fast signal isolation.
- Features a maximum forward voltage of 1.7V ensuring efficient signal transmission.
- Input current type is DC with a maximum input current of 25mA.
- Rated for isolation voltage of 3.75 kVrms providing high electrical isolation.
- Operating temperature range from -55°C to 100°C for reliable performance in harsh environments.
- Package type is PDIP with through hole mounting for easy PCB integration.
- Includes transistor output with logic output functionality for versatile interfacing.
- Complies with IEC, EN, CSA, and UL standards ensuring safety and quality.
Product Description
Broadcom 6N136-000E DC Input Optocoupler is a high-performance optocoupler featuring a through hole 8-pin PDIP package with transistor output. It offers a maximum data rate of 1 MBd, designed specifically for industrial applications requiring fast and reliable signal isolation. The device supports a maximum forward voltage of 1.7V and a maximum input current of 25mA with DC input current type.
This optocoupler provides robust electrical isolation of 3.75 kVrms while operating over a wide temperature range from -55°C to 100°C, making it suitable for harsh and demanding industrial environments. It supports logic output and comes in a durable PDIP package with through hole mounting, facilitating straightforward circuit board assembly.
Compliant with IEC, EN, CSA, and UL standards, the 6N136-000E assures quality, reliability, and safety for various industrial, electronic, and automation use cases. This device is ideal for industrial signal isolation, control systems, and interfacing digital circuits in manufacturing and process control applications.
Operates at a maximum data rate of 1 MBd for fast signal transmission. Maximum forward voltage of 1.7V optimizes efficiency. DC input current type with maximum input current of 25mA. High isolation voltage rating of 3.75 kVrms.
Wide temperature range from -55°C to 100°C. 8-pin PDIP package with through hole mounting. Logic output available with transistor output configuration. Certified to IEC, EN, CSA, and UL standards. Manufactured in Thailand ensuring consistent quality.
This Optocoupler is commonly used in industrial automation, electronic component interfacing, signal isolation, and control signal transmission applications. Its durable design and broad temperature tolerance make it reliable for use in manufacturing, industrial control equipment, and electronic instrumentation systems.
Explore the extensive range of industrial and electronic components at EnvMart for compatible and complementary products including power connectors, displays, and photodetectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the 6N136-000E optocoupler is 1 MBd, allowing for fast signal transmission.
This model has a DC input current type with a maximum input current of 25mA.
The isolation voltage rating of the 6N136-000E is 3.75 kVrms, providing high electrical isolation.
It operates within a temperature range of -55°C to 100°C, making it suitable for harsh environments.
This optocoupler features a transistor output, allowing for versatile interfacing with logic circuits.
The 6N136-000E has 8 pins in its PDIP package configuration.
It complies with IEC, EN, CSA, and UL standards, ensuring safety and quality.
The maximum forward voltage for the 6N136-000E is 1.7V, optimizing efficiency in signal transmission.
This model uses a through hole mounting type, facilitating easy PCB integration.
The maximum current transfer ratio is 50%, while the minimum is 19%.
The 6N136-000E is manufactured in Thailand, ensuring consistent quality.
This optocoupler is suitable for industrial automation, electronic component interfacing, and control signal transmission applications.
