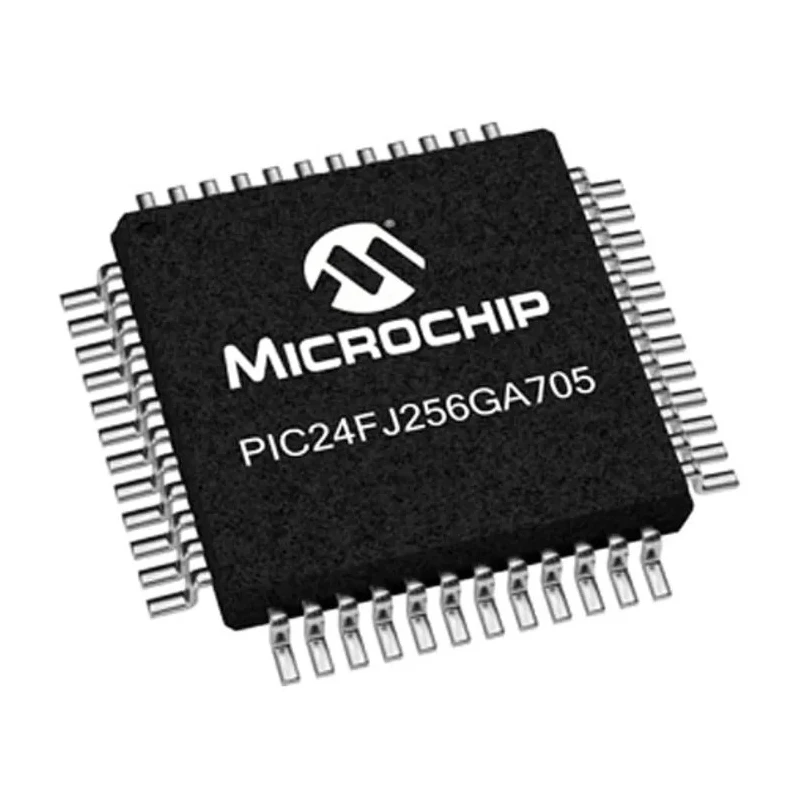

Microchip 16 bit PIC24FJ Microcontroller, 32 MHz, 256kB FLASH, 48-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 7mm |
| Model | PIC24FJ |
| Width | 7mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Communications | 6 x UART, 4 x SPI and 3 x I2C |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 1 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 10 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- Built on a 16-bit PIC24 CPU architecture with Modified Harvard design.
- Operates up to 32 MHz clock speed providing up to 16 MIPS processing capability.
- Features 256kB dual partition Flash memory with live update capability.
- Includes integrated cryptographic engine for hardware encryption and decryption with NIST standard compliance.
- Equipped with multiple communication interfaces including 6 UART, 4 SPI, and 3 I2C channels.
- Supports 10/12-bit ADC with up to 24 channels and 12-bit conversion rate of 200 kbps.
- Operates within minimum supply voltage of 2 V to maximum 3.6 V with automotive grade AEC-Q100 certification.
- Compact surface-mount 48-pin TQFP package measuring 7mm x 7mm x 1.05mm suitable for space-constrained applications.
Product Description
The Microchip PIC24FJ256GA705-I/PT is a 16-bit microcontroller built on the PIC24FJ256GA700 family featuring a robust 16-bit CPU with Modified Harvard architecture. Operating up to 32 MHz, it delivers high performance with up to 16 MIPS processing power, suitable for complex embedded system applications.
This microcontroller boasts 256kB dual partition Flash memory, allowing for live updates and firmware flexibility. Its integrated cryptographic engine enables secure hardware encryption and decryption, supporting NIST standard operations without CPU overhead, enhancing embedded security.
Communication peripherals are abundant, including 6 UARTs, 4 SPIs, and 3 I2C interfaces, facilitating diverse connectivity in embedded systems. Analog capabilities include up to 24 multi-channel 10/12-bit ADCs with high conversion rates and a 10-bit DAC supporting 1 Msps update rate.
Designed for automotive and industrial applications, it complies with AEC-Q100 standard and operates over a broad voltage range of 2 V minimum to 3.6 V maximum, and a temperature range from -40°C to 85°C. The device is housed in a compact surface mount 48-pin TQFP package with dimensions 7 mm length, 7 mm width, and 1.05 mm height, optimizing board space.
The PIC24FJ256GA705-I/PT microcontroller is ideally suited for applications requiring low power consumption, embedded security, advanced peripherals, USB interfaces, and LCD control in industrial, automotive, communications, and consumer electronics sectors.
Built on a 16-bit PIC24 CPU architecture with Modified Harvard design. Operates up to 32 MHz clock speed with 256kB dual partition Flash memory. Integrated cryptographic engine with NIST standard encryption/decryption. Multiple communication interfaces: 6 UART, 4 SPI, 3 I2C.
High-resolution ADC and DAC peripherals for precise analog integration. Automotive grade AEC-Q100 certified for robustness and reliability. Explore more Microcontrollers and embedded solutions with EnvMart, your source for high-quality industrial-grade components and advanced electronic technologies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 32 MHz.
This microcontroller features a program memory size of 256kB.
It supports multiple communication interfaces including 6 UARTs, 4 SPIs, and 3 I2C channels.
The dimensions of the TQFP package are 7 mm in length, 7 mm in width, and 1.05 mm in height.
The operating temperature range is from -40°C to 85°C.
It operates with a minimum supply voltage of 2 V and a maximum supply voltage of 3.6 V.
It supports up to 10 channels of 10/12-bit ADC.
This microcontroller is built on a Modified Harvard architecture.
Yes, it includes an integrated cryptographic engine for hardware encryption and decryption.
It complies with the AEC-Q100 automotive standard.
The RAM size of this model is 16kB.
This microcontroller includes 1 timer.
