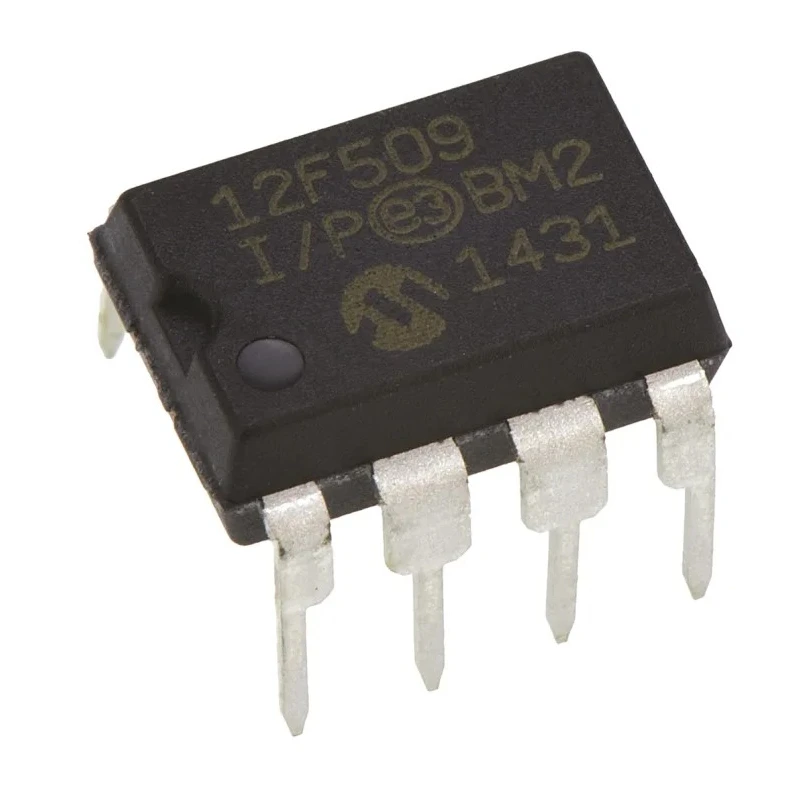

Microchip PIC12F509-I/P 8-Bit PIC Microcontroller, 4 MHz, 1.5 kB Flash, 8-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 10.16mm |
| Model | PIC12F509-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 41bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC core architecture for efficient processing.
- Features an internal 4 MHz oscillator with ±1% accuracy.
- Program memory capacity of 1.5 kB FLASH and 41 bytes SRAM data memory.
- Comes in an 8-pin PDIP package with six configurable I/O pins.
- Supports SPI interface and includes one 8-bit timer with watchdog timer support.
- Designed for through-hole mounting type for easy prototyping and assembly.
- Operates at supply voltage range from 2 V to 5.5 V with maximum power dissipation of 800 mW.
- Suitable for operating temperatures from -40°C to +85°C ensuring industrial reliability.
Product Description
Microchip PIC12F509-I/P is an 8-bit microcontroller within the PIC12F series, featuring a compact 8-pin PDIP package and robust specifications suitable for embedded device development. It integrates a RISC instruction set architecture with 33 instructions, enabling up to 1 MIPS performance at a maximum 4 MHz clock frequency powered by an internal RC oscillator with ±1% accuracy.
This microcontroller offers 1.5 kB FLASH program memory and 41 bytes of SRAM data memory, providing ample space for control and data applications in various electronics projects. The device supports an SPI interface, has one 8-bit timer, and includes a watchdog timer for enhanced system stability.
The PIC12F509-I/P supports through-hole mounting which simplifies integration on development boards and prototypes. The device operates within a wide supply voltage range of 2 V to 5.5 V with a maximum power dissipation of 800 mW, making it suitable for low-power embedded applications.
With operational temperature range between -40°C and 85°C, this microcontroller is reliable for industrial, automotive, and consumer electronics environments. It adheres to the ISO/TS 16949 automotive standard, assuring quality and durability for automotive system integration.
Operates using an 8-bit PIC RISC architecture. Internal 4 MHz oscillator with ±1% frequency accuracy. 1.5 kB flash memory and 41 bytes SRAM for program and data storage. 8-pin PDIP package with six programmable I/O pins and SPI interface.
Supports watchdog timer and one 8-bit timer for timing control. Wide operating voltage from 2 V to 5.5 V and max power dissipation 800 mW. Operating temperature range of -40°C to 85°C suitable for harsh environments.
This microcontroller is widely used in industrial control, automotive applications, consumer electronics, and embedded systems requiring compact, reliable 8-bit processing power. The device facilitates rapid prototyping and production with its through-hole PDIP package and versatile features.
Explore the range of MICROCHIP microcontrollers available to find solutions tailored to your electronic design needs. EnvMart offers a wide selection of industrial-grade Microcontrollers and semiconductor components designed for precision and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory capacity of 1.5 kB FLASH.
The operating temperature range is from -40°C to +85°C.
This model has six configurable I/O pins.
It comes in an 8-pin PDIP package designed for through-hole mounting.
It operates within a supply voltage range of 2 V to 5.5 V.
This microcontroller supports an SPI interface.
The maximum power dissipation is 800 mW.
It includes 41 bytes of SRAM data memory.
It adheres to the ISO/TS 16949 automotive standard.
This microcontroller includes one 8-bit timer with watchdog timer support.
The height of this microcontroller is 4.95 mm.
