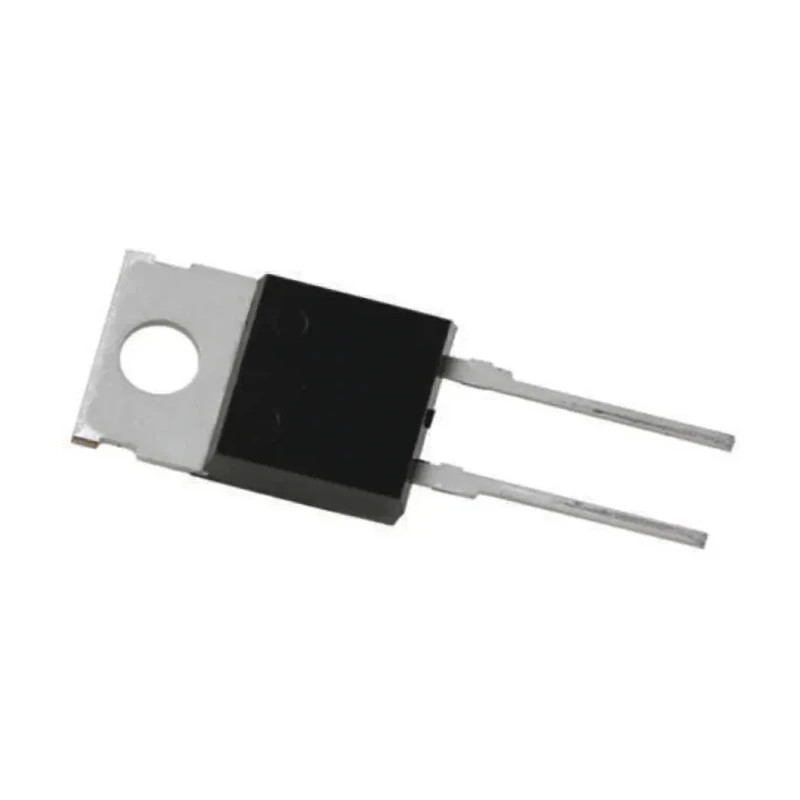

onsemi 800 V 8 A Switching Diode, Single, 2-Pin TO-220AC MUR880EG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MUR880EG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.8V |
| Peak Reverse Recovery Time trr | 100ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
| onsemi Diode, MUR880EBrand | ON Semiconductor |
Key Features
- This diode has a maximum continuous forward current of 8 A for reliable operation.
- It features a peak reverse repetitive voltage of 800 V, suited for switching applications.
- The device offers a low maximum forward voltage of 1.8 V, improving efficiency.
- Peak non-repetitive forward surge current is rated at 100 A for transient conditions.
- The peak reverse recovery time of 100 ns ensures fast switching performance.
- Operating temperature range spans from -65°C to 175°C, suitable for harsh environments.
- The diode's dimensions include 10.29 mm length, 4.82 mm width, and 9.27 mm height.
- Designed without automotive standard approval, intended for general semiconductor applications.
Product Description
onsemi MUR880EG is a high-performance 800 V, 8 A switching diode featuring a single diode configuration in a compact 2-pin TO-220AC package suitable for through-hole mounting. This device supports a maximum continuous forward current rating of 8 A with a peak reverse repetitive voltage (Vrrm) of 800 V, making it appropriate for various power switching and rectification applications.
With a maximum forward voltage drop of 1.8 V and a peak non-repetitive forward surge current rating of 100 A, the diode provides efficient and robust operation during transient surges. It achieves a fast peak reverse recovery time (trr) of 100 ns, ensuring minimal switching losses and high-speed performance in power electronics circuits.
The diode is designed to operate reliably within a wide temperature range from -65°C minimum to a maximum operating temperature of 175°C, making it suitable for demanding industrial and electronic environments. Its physical dimensions are 10.29 mm in length, 4.82 mm in width, and 9.27 mm in height, facilitating easy integration into various PCB layouts.
This product does not carry specific automotive certifications but is widely used in electronic components applications requiring durable, fast switching diodes. Typical use cases include power supplies, inverters, motor controllers, and other industrial and commercial electronics systems.
This Diode supports high forward current and voltage for demanding power applications. Fast switching speed improves circuit efficiency and performance. Robust thermal design allows use in harsh temperature conditions. Compact TO-220AC package ensures easy mounting and heat dissipation.
Suitable for industrial, commercial, and power electronics applications. Explore more top-quality semiconductor components by onsemi for your electronic design and manufacturing requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 A, allowing for reliable operation in various applications.
This diode has a peak reverse repetitive voltage rating of 800 V, making it suitable for switching applications.
The maximum forward voltage drop for this diode is 1.8 V, which helps improve efficiency in circuits.
The peak non-repetitive forward surge current is rated at 100 A, allowing it to handle transient conditions effectively.
The peak reverse recovery time is 100 ns, ensuring fast switching performance in power electronics applications.
It operates within a temperature range of -65°C to 175°C, making it suitable for harsh environments.
The diode measures 10.29 mm in length, 4.82 mm in width, and 9.27 mm in height, facilitating easy integration into PCB layouts.
This model uses a TO-220AC package type, which is designed for through-hole mounting.
The diode configuration is single, which is typical for various power switching and rectification applications.
This diode is not designed with specific automotive standard approval and is intended for general semiconductor applications.
It is commonly used in power supplies, inverters, motor controllers, and other industrial and commercial electronics systems.
This model has a pin count of 2, which is standard for its package type.
