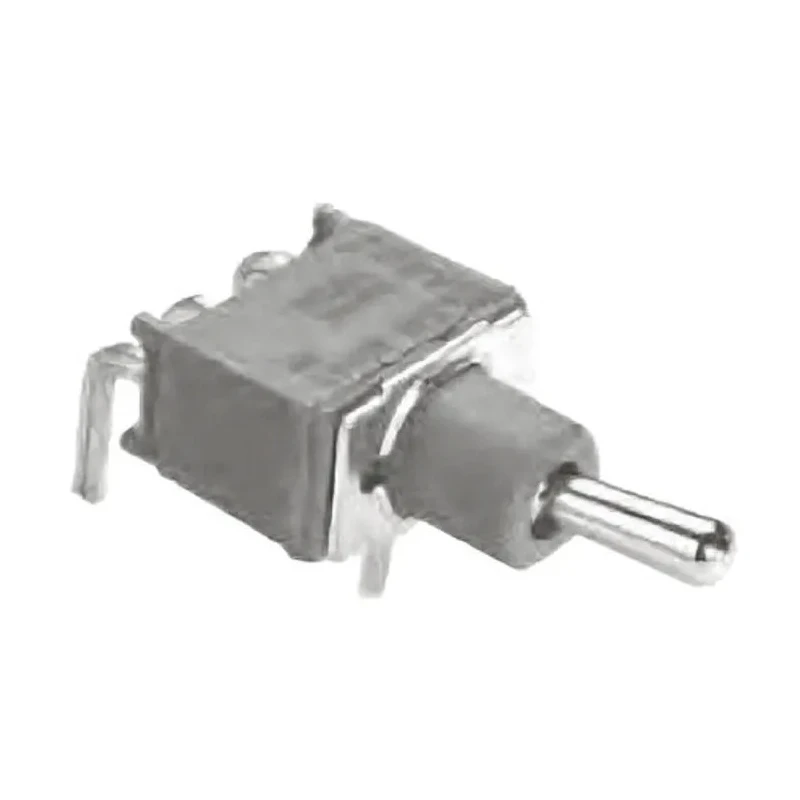

TE Connectivity Toggle Switch PCB Mount On-On SPDT 400mA 28V dc 115V ac 1825142-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Switch Operation | On-On |
| Actuator Length | 7.62mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Sealed to IP67 for dust and water resistance.
- Featuring through hole terminal type for PCB mounting.
- Actuator length measures 7.62mm, made from phenolic material.
- Wide operating temperature range from -30°C to 85°C.
- Switch configuration On-On with break before make contact timing.
- Non-illuminated toggle switch suitable for robust industrial applications.
- Stainless steel frame with brass tin plated solder support.
- RoHS compliant meeting environmental standards.
Product Description
TE Connectivity 1825142-1 toggle switch is a robust, PCB-mountable electrical switch designed for On-On SPDT operation. It supports a switch contact current of 400mA and is rated for 28V dc and 115V ac, making it ideal for general electrical and automation control applications.
The toggle switch features a sealed Gemini A Series construction that meets IP67 requirements, providing excellent protection against dust and water ingress. Its stainless steel frame combined with brass tin plated solder supports ensures durability and reliable electrical connections. The phenolic actuator measures 7.62mm in length and the terminal type is through hole for stable PCB mounting.
Operating reliably under temperatures from -30°C up to 85°C, this switch offers dependable performance in harsh industrial environments. It features break before make contact timing enhancing safety and preventing circuit conflicts. This non-illuminated toggle switch is ideal for use in industrial automation systems, electrical panels, and manufacturing equipment.
The product complies with RoHS standards ensuring environmental safety and regulatory compliance. It is a valuable component for use in laboratory, manufacturing, industrial automation, HVAC control panels, and water treatment systems.
Sealed Gemini A Series design certified to IP67 standard. On-On SPDT switch operation with 400mA contact current rating. Phenolic actuator and stainless steel frame with brass solder supports. Operating temperature range from -30°C to 85°C.
Through hole terminal type for secure PCB mounting. Non-illuminated toggle switch for versatile electrical applications. RoHS compliant for environmental safety.
This TE Connectivity toggle switch is ideal for engineers and technicians requiring a durable and reliable switch for integration into electrical and automation equipment. Explore more Toggle Switches and related components at EnvMart to complete your industrial electrical projects efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for On-On operation.
This model can operate reliably at temperatures up to 85°C.
It has a switch contact current rating of 400mA.
The switch is rated IP67, providing protection against dust and water ingress.
It supports PCB mounting with a through hole terminal type for secure installation.
The actuator is made from phenolic material, while the frame is stainless steel with brass tin plated solder supports.
It is rated for 28V DC and 115V AC, making it versatile for various electrical applications.
The actuator measures 7.62mm in length.
No, this is a non-illuminated toggle switch, suitable for various electrical applications.
The switch complies with RoHS standards, ensuring environmental safety and regulatory compliance.
The minimum operating temperature for this switch is -30°C.
This model is suitable for use in industrial automation systems, electrical panels, and manufacturing equipment.
