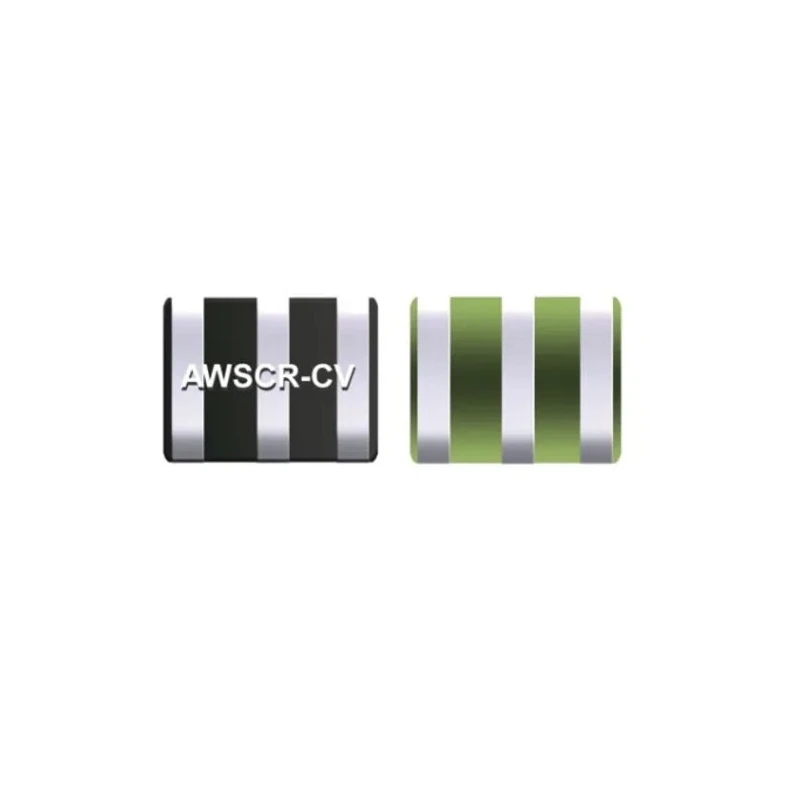

Abracon Ceramic Resonator 10 MHz 22 pF 3-Pin Surface Mount 4x3.1x1 mm AWSCR-10.00CV-T

The Abracon AWSCR-10.00CV-T is a high-quality ceramic resonator designed for industrial and commercial electronic applications requiring stable frequency control.

This resonator operates at a nominal resonance frequency of 10 MHz with a built-in load capacitance of 22 pF, enabling precise clock signals for microcontrollers and timing devices.

Its 3-pin surface mount design, with compact dimensions of 4 mm in length, 3.1 mm in width, and 1 mm in height, makes it suitable for space-constrained PCB layouts.

The device features low resonance resistance of 30 Ω, ensuring efficient signal coupling with minimal power loss. Frequency stability and ageing are tightly controlled within ±0.3%, which is critical for applications in consumer electronics, remote controls, DVD and CD-ROM drives, and mobile phones.

Designed with built-in load capacitors, it eliminates the need for external components, simplifying circuit design and saving PCB space. Its surface mount package supports IR reflow soldering processes used in automated manufacturing.

The resonator is RoHS and RoHS II compliant, affirming its environmental friendliness and adherence to global standards. Operates over a temperature range from -25°C to 85°C. Perfect for industrial grade use in electronic devices requiring stable timing signals.

Provided on reels to facilitate large-scale, automated PCB assembly.

This Abracon AWSCR-10.00CV-T Ceramic Resonator integrates precision frequency control into your electronic products with compact size, excellent stability, and manufacturing process compatibility.
