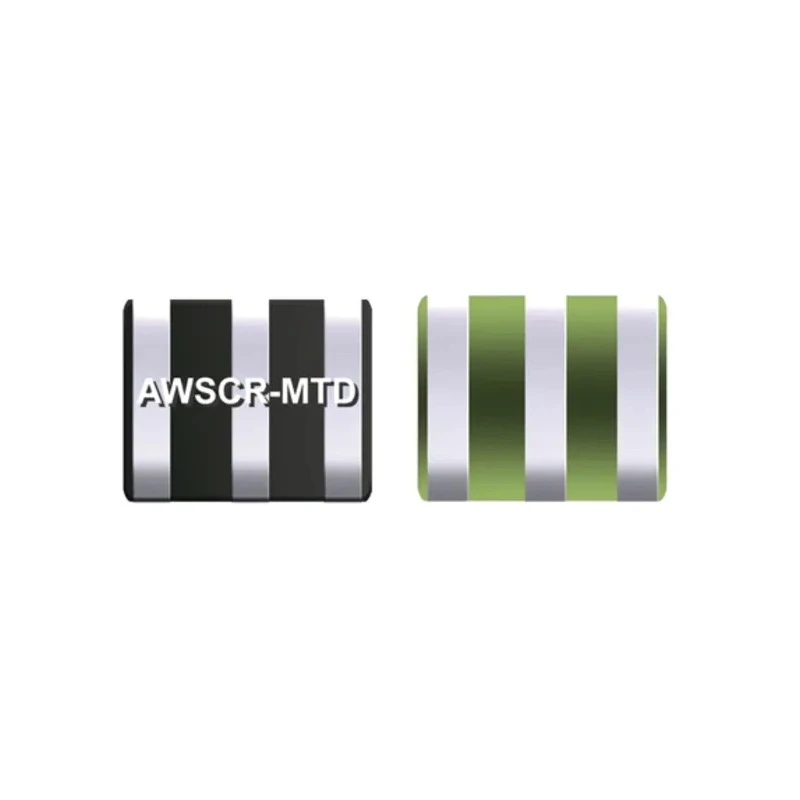

Abracon Ceramic Resonator 16 MHz 22 pF 3-Pin Tape & Reel Surface Mount AWSCR-16.00MTD-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 4.7mm |
| Model | AWSCR-16.00MTD-T |
| Packaging | Tape & Reel |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | AWSCR-MTD |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 22pF |
| Resonance Frequency | 16MHz |
| Resonance Resistance | 40Ω |
Key Features
- This ceramic resonator features a 3-pin tape and reel package for automated assembly.
- The device supports operating temperatures from -40°C to 85°C.
- Its compact dimensions of 4.7 mm length, 4.1 mm width, and 1.5 mm height enable use in compact electronic devices.
- Glass sealed package enhances reliability and allows for high temperature operation.
- Low resistance of 40 ohms minimizes signal losses in oscillator circuits.
- Ready for IR reflow soldering processes used in modern PCB assembly.
- Ideal for modems, wireless communication equipment, and test instrumentation.
- Compliant with RoHS standards conveying environmental safety.
Product Description
Abracon AWSCR-16.00MTD-T Ceramic Resonator is a precision surface mount component operating at a resonance frequency of 16 MHz with a load capacitance of 22 pF. It is designed for high density and space-constrained electronic assemblies with a small footprint of 4.7 mm length, 4.1 mm width, and 1.5 mm height.
The resonator is enclosed in a glass-sealed package that ensures high reliability and superior temperature tolerance allowing it to operate from -40°C to 85°C. Frequency tolerance and stability of ±0.5% make it suitable for timing and frequency control in communication and industrial electronics.
This device is supplied in a 3-pin tape and reel format, compatible with automated pick-and-place and IR reflow soldering processes widely used in modern manufacturing lines. Its low resonance resistance of 40 ohms reduces energy loss, improving signal integrity in oscillators and timing circuits.
Typical applications include modems, wireless devices, test equipment, and other high frequency systems requiring compact and reliable timing elements. This ceramic resonator features a 3-pin tape and reel packaging for ease of handling and surface mount assembly.
Its glass sealed construction enhances durability and thermal performance. The frequency stability and tolerance ensure accurate and consistent oscillation frequency. Operates efficiently within a broad temperature range suitable for industrial conditions.
Compliant with RoHS directives supporting eco-friendly manufacturing.
Choose Abracon AWSCR-16.00MTD-T for dependable, compact frequency control components suitable for industrial, telecommunications, and consumer electronics applications. Explore more Ceramic Resonators and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 16 MHz.
It has a load capacitance of 22 pF.
This model measures 4.7 mm in length, 4.1 mm in width, and 1.5 mm in height.
It operates within a temperature range of -40°C to 85°C.
The resonance resistance is 40 ohms, which helps minimize signal losses.
It is supplied in a tape and reel packaging format for automated assembly.
This model is designed for surface mount applications.
It is compliant with RoHS standards, ensuring environmental safety.
Typical applications include modems, wireless devices, and test instrumentation.
This model features a pin count of 3.
Yes, it is ready for IR reflow soldering processes commonly used in PCB assembly.
It belongs to the AWSCR-MTD series of ceramic resonators.
