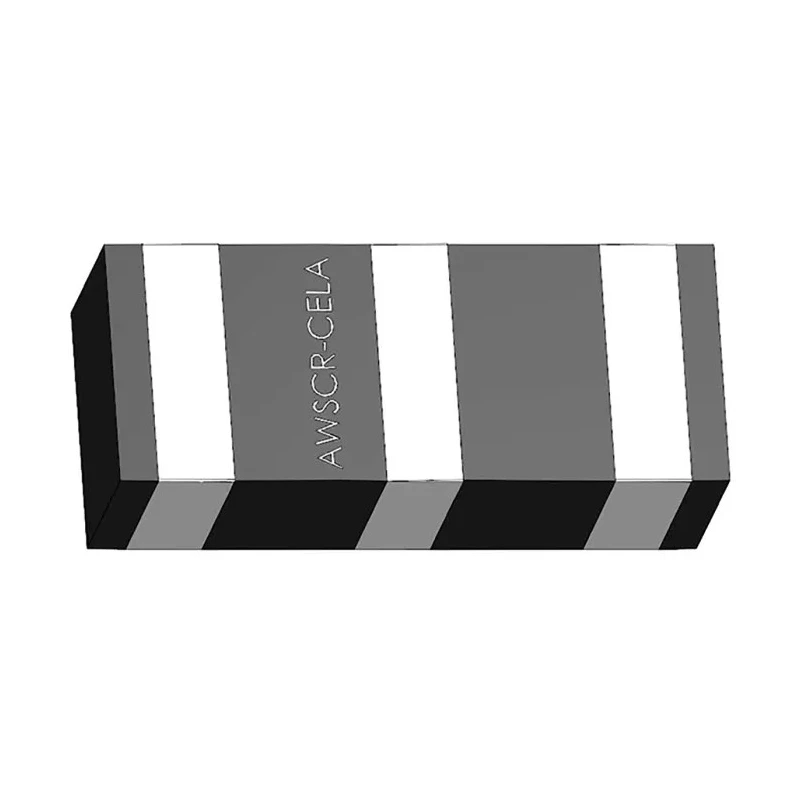

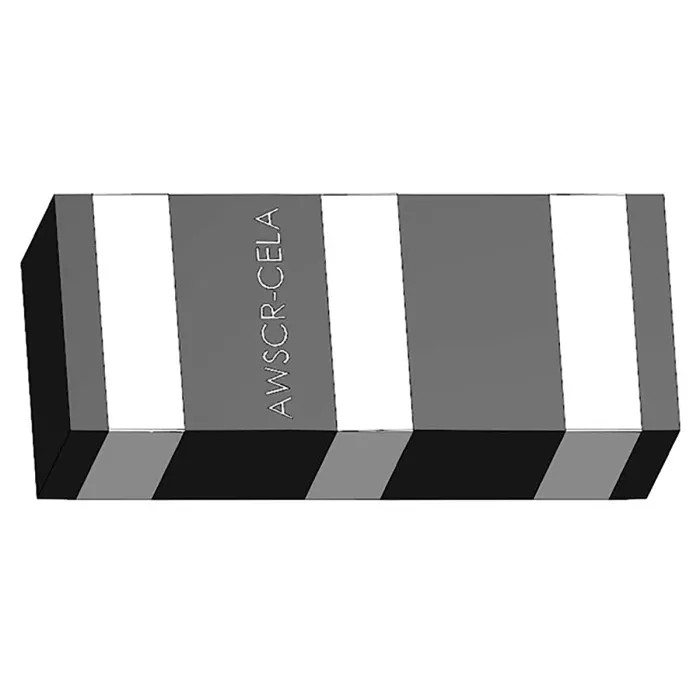

Abracon Ceramic Resonator 10 MHz 10 pF 3-Pin Tape & Reel Surface Mount AWSCR-10.00CELA-C10-T3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | AWSCR-10.00CELA-C10-T3 |
| Packaging | Tape & Reel |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | AWSCR-CELA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 10pF |
| Resonance Frequency | 10MHz |
| Resonance Resistance | 40Ω |
Key Features
- Operates at 10 MHz resonance frequency for precise timing applications.
- Features a 10 pF load capacitance to optimize circuit performance.
- Surface mount design with 3-pin Tape & Reel packaging for efficient automated assembly.
- Wide operating temperature range from -40°C to 85°C suitable for industrial electronics.
- Low resonance impedance and built-in capacitance options enhance circuit reliability.
- RoHS compliant for use in environmentally regulated environments.
- Supports metering systems, remote control, microprocessor, industrial control, and electric appliances.
Product Description
Abracon AWSCR-10.00CELA-C10-T3 is a high-performance ceramic resonator engineered for precise electronic circuit timing and frequency stabilization. Designed with a resonance frequency of 10 MHz and a load capacitance of 10 pF, this device provides reliable performance in critical applications.
This component features a surface mount configuration with a 3-pin Tape & Reel package, making it ideal for automated PCB assembly. Its compact dimensions of 3.2 mm length, 1.3 mm width, and 1 mm height provide space-saving integration into complex electronic designs.
The resonator supports a wide operating temperature range, from -40°C to 85°C, ensuring operation in demanding industrial environments. With low resonance impedance and built-in capacitance options, it is suitable for circuits requiring stable and accurate signal generation.
The AWSCR-CELA series is RoHS compliant, confirming its environmental safety and suitability for regulated markets. Its solder termination type facilitates secure PCB mounting and reliable contact.
Applications include metering systems, remote control units, microprocessors, industrial control systems, and electric appliances. The ceramic resonator is an essential passive component for electronics requiring consistent oscillation and timing accuracy.
Operates at 10 MHz resonance frequency for precise timing applications. Features a 10 pF load capacitance to optimize circuit performance. Surface mount design with 3-pin Tape & Reel packaging for efficient automated assembly.
Wide operating temperature range from -40°C to 85°C suitable for industrial electronics. Low resonance impedance and built-in capacitance options enhance circuit reliability. RoHS compliant for use in environmentally regulated environments.
Supports metering systems, remote control, microprocessor, industrial control, and electric appliances.
This Abracon Ceramic Resonator is categorized under Crystals, Oscillators & Resonators on EnvMart. Explore more frequency control components from Abracon for advanced timing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 10 MHz, making it suitable for precise timing applications.
It features a load capacitance of 10 pF, which optimizes circuit performance.
This unit has dimensions of 3.2 mm in length, 1.3 mm in width, and 1 mm in height.
It operates within a temperature range of -40°C to 85°C, suitable for industrial electronics.
The resonator is packaged in a Tape & Reel format, which is efficient for automated assembly.
This model has a pin count of 3, designed for surface mount applications.
It uses a solder termination type, facilitating secure PCB mounting.
The resonance resistance is 40Ω, which contributes to its low resonance impedance.
Yes, the resonator is RoHS compliant, making it suitable for use in environmentally regulated environments.
It supports applications such as metering systems, remote control units, microprocessors, industrial control systems, and electric appliances.
This model belongs to the AWSCR-CELA series, which is known for high-performance timing solutions.
