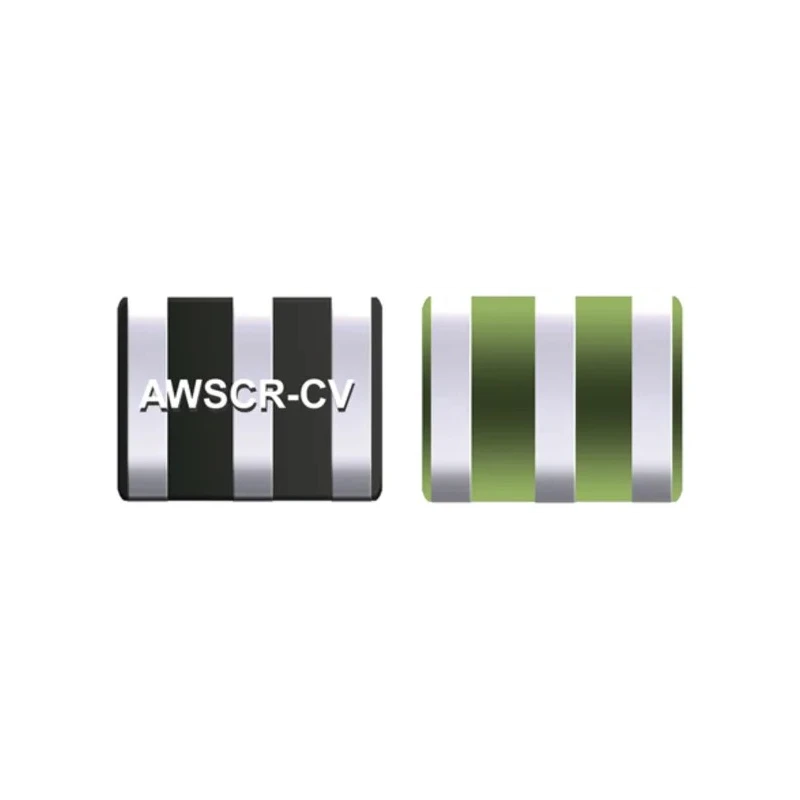

Abracon Ceramic Resonator 16 MHz 22 pF Surface Mount Tape & Reel 3-Pin 3.7mm x 3.1mm x 1mm AWSCR-16.00CV-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.7mm |
| Model | AWSCR-16.00CV-T |
| Packaging | Tape & Reel |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | AWSCR-CV |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 22pF |
| Resonance Frequency | 16MHz |
| Resonance Resistance | 40Ω |
Key Features
- Excellent environmental resistance ensuring stable operation.
- Low resonant impedance of 40 ohms for enhanced signal quality.
- Industrial grade suitable for remote controls and embedded applications.
- Operating temperature range from -25°C to 85°C for durability.
- 3-pin configuration optimized for microprocessor clock operations.
- Built-in 22 pF load capacitance simplifies circuit design.
Product Description
Abracon AWSCR-16.00CV-T Ceramic Resonator is a high stability, industrial-grade component designed for frequency stabilization in electronic circuits. Featuring a resonance frequency of 16 MHz and a load capacitance of 22 pF, this resonator is suitable for precise timing applications such as microprocessor clocks, remote controls, mobile phones, DVD and CD-Rom drives, and various electric appliances.
The resonator is mountable via surface mount technology and packaged in Tape & Reel format supporting automated pick-and-place assembly processes. It offers a low resonant resistance of 40 ohms and excellent environmental resistance to ensure reliable operation in diverse industrial and commercial environments.
Operating reliably over a temperature range of -25°C to 85°C, it supports demanding industrial controller applications requiring stable oscillation frequency with a frequency tolerance of ±0.5% and frequency stability of ±0.3%. The compact physical size (3.7 mm length x 3.1 mm width x 1 mm height) enables efficient space utilization on PCBs.
Features include a 3-pin configuration and built-in load capacitance, which simplifies external circuitry and reduces component count. As a RoHS compliant component made in China, it meets environmental and manufacturing standards required for modern electronic manufacturing.
Excellent environmental resistance ensuring stable operation. Low resonant impedance of 40 ohms for enhanced signal quality. Frequency tolerance of ±0.5% with frequency stability ±0.3%. Industrial grade suitable for remote controls and embedded applications.
Operating temperature range from -25°C to 85°C for durability. Compact dimensions: length 3.7mm, width 3.1mm, height 1mm. 3-pin configuration optimized for microprocessor clock operations. Built-in 22 pF load capacitance simplifies circuit design.
This Abracon Ceramic Resonator is ideal for electronics manufacturing, laboratory testing, HVAC control systems, consumer electronics, and other industrial applications where frequency precision and component reliability are crucial. Explore EnvMart's extensive catalog for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 16 MHz, making it suitable for precise timing applications.
It has a built-in load capacitance of 22 pF, which simplifies circuit design by reducing the number of external components needed.
The dimensions of this unit are 3.7 mm in length, 3.1 mm in width, and 1 mm in height.
It operates reliably within a temperature range of -25°C to 85°C, suitable for various industrial applications.
The resonant resistance is 40 ohms, which enhances signal quality in electronic circuits.
This resonator is packaged in Tape & Reel format, which supports automated pick-and-place assembly processes.
It utilizes surface mount technology, making it suitable for compact circuit designs.
The frequency tolerance is ±0.5%, ensuring stable oscillation frequency for applications.
It is suitable for applications such as microprocessor clocks, remote controls, and various electronic appliances.
Yes, the ceramic resonator is RoHS compliant, meeting environmental and manufacturing standards.
This model features a 3-pin configuration, optimized for microprocessor clock operations.
It belongs to the AWSCR-CV series, which is designed for high stability in frequency stabilization applications.
