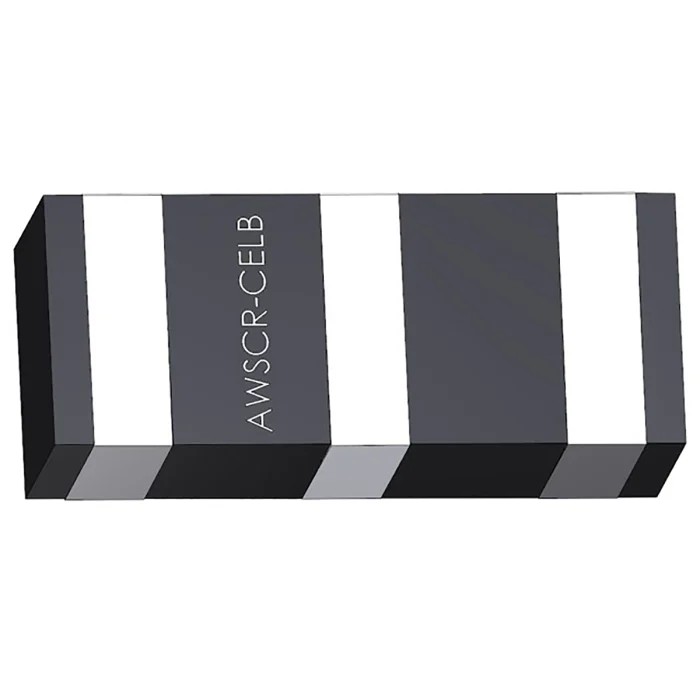

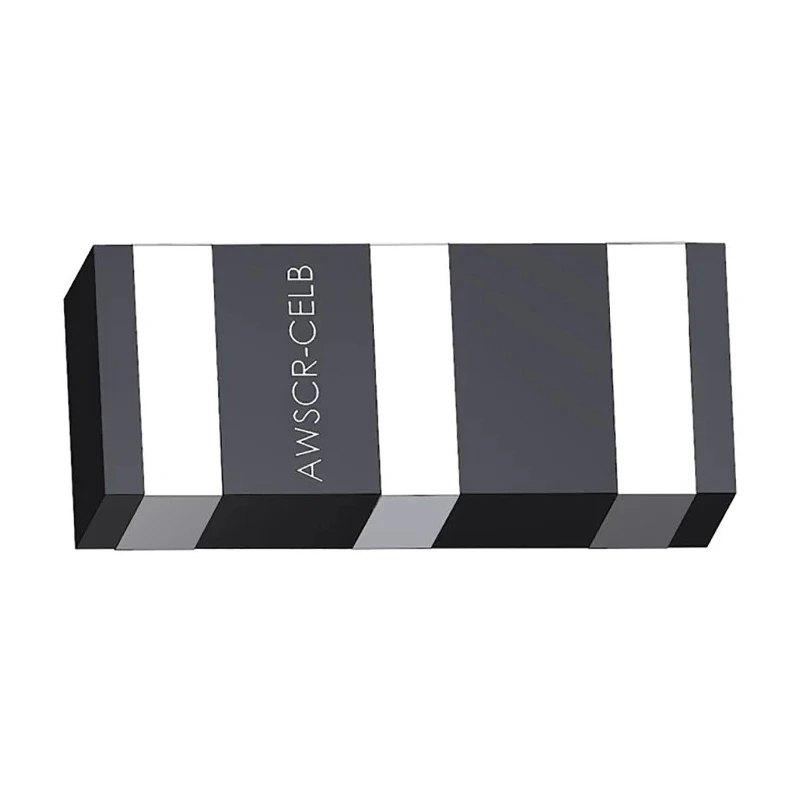

Abracon Ceramic Resonator, 8 MHz Frequency, 10 pF Load Capacitance, 3-Pin Surface Mount Tape & Reel AWSCR-8.00CELB-C10-T3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | AWSCR-8.00CELB-C10-T3 |
| Packaging | Tape & Reel |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | AWSCR-CELB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 10pF |
| Resonance Frequency | 8MHz |
| Resonance Resistance | 40Ω |
Key Features
- This resonator features a frequency tolerance of ±0.5% for accurate signal generation.
- Packaged in tape & reel format suitable for automated PCB assembly processes.
- It operates reliably in temperature ranges from -40°C to 125°C.
- With a resonance resistance of 40 ohms, it delivers stable oscillation performance.
- The device has compact dimensions of 3.2mm length, 1.3mm width, and 1mm height.
- Termination type is solder, enabling surface mount technology application.
- RoHS compliant product ideal for industrial and electronic circuit applications.
- Commonly used in metering systems, microprocessors, remote controls, and industrial control circuits.
Product Description
Abracon AWSCR-8.00CELB-C10-T3 Ceramic Resonator provides an 8 MHz resonance frequency with a load capacitance of 10 pF embedded in a 3-pin surface mount package. The ceramic resonator is designed for use in precision timing and frequency control applications.
This component features a frequency tolerance of ±0.5%, frequency ageing of ±0.1%, and frequency stability of ±0.2%, ensuring consistent and reliable performance over its operational lifespan. The package type is tape & reel, facilitating seamless automated PCB assembly processes in manufacturing environments.
Operating temperature ranges from -40°C to 125°C accommodate a wide range of industrial and commercial applications. Its compact physical dimensions of 3.2 mm in length, 1.3 mm in width, and 1 mm in height enable space-saving PCB designs. The device offers a resonance resistance of 40 ohms and uses solder termination suitable for surface mount technology (SMT).
As a RoHS-compliant part manufactured in China, this ceramic resonator aligns with modern environmental standards. Typical applications include metering systems, remote controls, microprocessor clocking circuitry, industrial control systems, and various electronic appliances.
This resonator features a frequency tolerance of ±0.5% for accurate signal generation. Packaged in tape & reel format suitable for automated PCB assembly processes. Frequency ageing is low at ±0.1%, ensuring long-term reliability.
It operates reliably in temperature ranges from -40°C to 125°C. With a resonance resistance of 40 ohms, it delivers stable oscillation performance. The device has compact dimensions of 3.2mm length, 1.3mm width, and 1mm height.
Termination type is solder, enabling surface mount technology application. RoHS compliant product ideal for industrial and electronic circuit applications. Commonly used in metering systems, microprocessors, remote controls, and industrial control circuits.
Suitable for electronic manufacturing industries requiring high precision timing components, this Abracon Ceramic Resonator ensures performance stability across temperature variations and extended use. Browse the Electronics Components category at EnvMart for further solutions and alternatives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ceramic resonator operates at a resonance frequency of 8 MHz.
It has a load capacitance of 10 pF.
This model has compact dimensions of 3.2 mm in length, 1.3 mm in width, and 1 mm in height.
It features a frequency tolerance of ±0.5%.
The maximum operating temperature is 125°C.
It uses a solder termination type suitable for surface mount technology (SMT).
The resonance resistance is 40 ohms.
The minimum operating temperature is -40°C.
It is packaged in a tape & reel format, suitable for automated PCB assembly processes.
It is RoHS compliant, aligning with modern environmental standards.
Typical applications include metering systems, microprocessors, remote controls, and industrial control circuits.
It has a frequency stability of ±0.2%, ensuring consistent performance over its operational lifespan.
