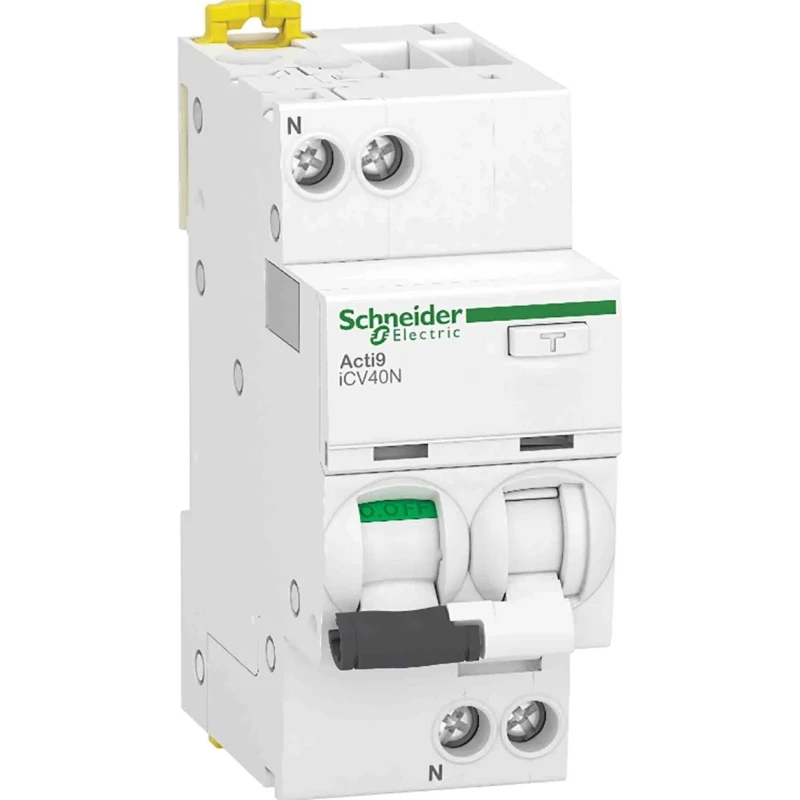

Schneider Electric Residual Current Circuit Breaker with Overload Protection 32A, 1-Pole, 30 mA Trip, Type C, 230V A9DC3632
Specifications
| Country of Origin | India |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DC3632 |
| Depth | 85mm |
| Width | 73mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | Acti9 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
Key Features
- This RCBO combines mini circuit breaker and residual current device functionalities for comprehensive protection.
- It features a Type C tripping characteristic suitable for general electrical circuits.
- The device operates with a rated voltage of 230V AC and a breaking capacity of 6kA.
- With dimensions of 85mm height, 73mm width, and 85mm depth, it is compact and suitable for DIN rail mounting.
- It has an earth leakage protection classified as Type A with 30mA trip sensitivity for safety against leakage currents.
- The thermal magnetic tripping mechanism ensures rapid response to overloads and short circuits.
- The unit complies with RoHS and IEC standards ensuring environmental and safety compliance.
- Lightweight at 210 grams, it simplifies installation and handling.
Product Description
Schneider Electric A9DC3632 is a Residual Current Circuit Breaker (RCBO) with overload protection designed for industrial and commercial electrical distribution systems. This device provides dual safety by combining the features of a mini circuit breaker (MCB) with a residual current device (RCD), offering protection against overloads, short circuits, and earth leakage currents.
Operating at a current rating of 32A and a rated AC voltage of 230V, this 1-pole breaker features a 30mA trip sensitivity with Type C tripping characteristics, suitable for general purpose circuits with moderate inrush currents. The compact dimensions (85mm height, 73mm width, 85mm depth) and DIN rail mount type ensure easy and secure installation in electrical panels.
The thermal magnetic tripping mechanism guarantees quick response times to overloads and faults, enhancing electrical safety in installations. The device’s breaking capacity of 6kA ensures it can safely interrupt short circuit currents typically found in industrial and commercial environments.
With an IP20 ingress protection rating, the breaker resists dust and accidental contact with live parts, contributing to user safety during operation and maintenance. Compliance with RoHS and IEC standards affirms environmental friendliness and adherence to global safety protocols.
Weighing only 210 grams, the breaker is lightweight for ease of handling and installation. Common applications include fire alarm systems, water heaters, as well as process and packaging equipment, where reliable protection is critical to operational safety and continuity.
This device offers combined protection against overloads and earth leakage currents for versatile electrical system safety. Type C tripping curve accommodates a range of electrical loads and usage scenarios. Breaking capacity of 6kA supports reliable interruption of fault currents.
Compact design with DIN rail mounting simplifies integration into existing panels. Compliance with RoHS and IEC guarantees safety and regulatory adherence. Explore more Schneider Electric circuit protection products on EnvMart for comprehensive industrial and commercial electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, suitable for general electrical circuits.
The breaking capacity of this unit is 6kA, allowing it to safely interrupt short circuit currents.
It has dimensions of 85mm in height, 73mm in width, and 85mm in depth, making it compact for installation.
This circuit breaker features a thermal magnetic tripping mechanism, ensuring rapid response to overloads and short circuits.
It has a trip sensitivity of 30mA, providing protection against earth leakage currents.
Yes, this model is designed for DIN rail mounting, facilitating easy and secure installation in electrical panels.
It provides Type A earth leakage protection, which is suitable for various applications requiring safety against leakage currents.
The unit complies with RoHS and IEC standards, ensuring environmental friendliness and adherence to global safety protocols.
The rated AC voltage for this model is 230V, making it suitable for standard electrical systems.
Common applications include fire alarm systems, water heaters, and process and packaging equipment, where reliable protection is critical.
This unit weighs 210 grams, which simplifies handling and installation.
It features a Type C tripping characteristic, suitable for circuits with moderate inrush currents.
