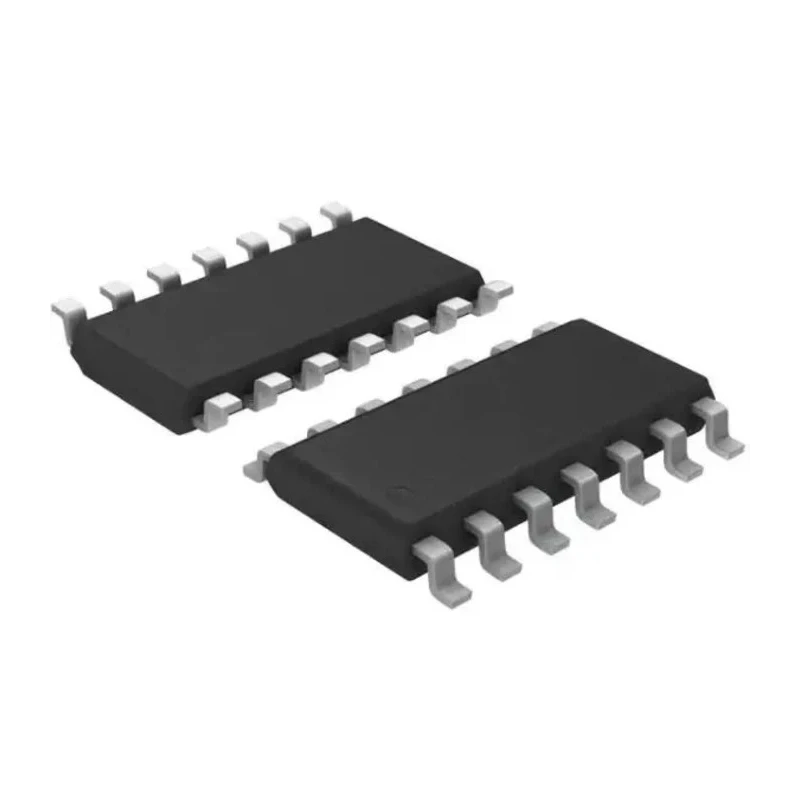

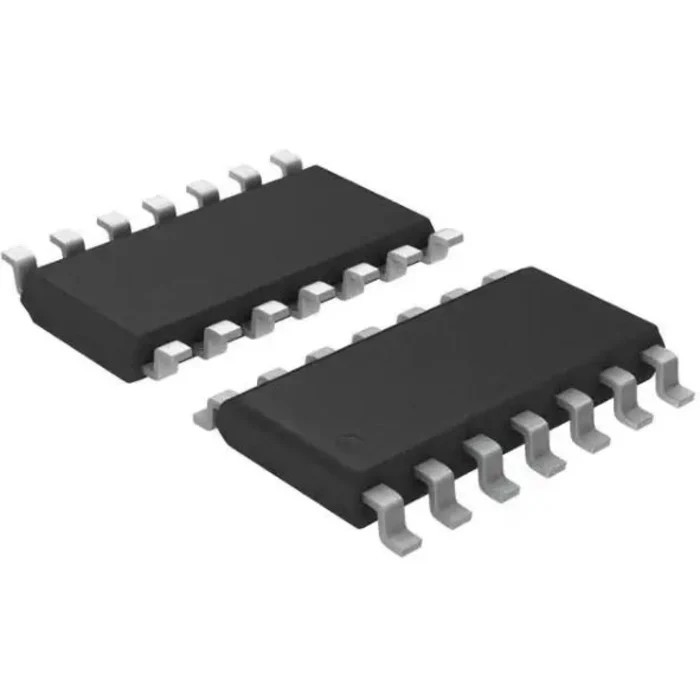

STMicroelectronics Hex Schmitt Trigger Input Inverter HCF40106YM013TR, 3V - 20V Supply, Through Hole Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | HCF40106YM013TR |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | HCF40106YM013TR |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 20V |
| Logic Function | Inverter |
| Minimum Supply Voltage | 3V |
Key Features
- The device features six Schmitt trigger circuits integrated into a single IC package.
- Operating voltage range is from 3 V minimum up to 20 V maximum supply.
- Hysteresis voltages vary typically from 0.9 V at 5 V supply to 3.5 V at 15 V supply.
- Offers high noise immunity exceeding 50 percent, enhancing performance in noisy environments.
- The IC supports both slow input ramp signals with minimal input current.
- Its output characteristics are standardized and symmetrical for circuit consistency.
- Designed for through-hole mounting with an SO-14 package form factor of 8.75 mm length, 4 mm width, and 1.75 mm height.
- Operating temperature range is from -55°C up to 125°C ensuring robustness for various conditions.
Product Description
STMicroelectronics HCF40106YM013TR is a Hex Schmitt Trigger Input Inverter IC featuring six integrated Schmitt trigger circuits fabricated using metal oxide semiconductor technology. This device is packaged in an SO-14 form factor suitable for through-hole mounting and designed for logic inversion with hysteresis characteristics.
Operating across a supply voltage range of 3 V to 20 V, it achieves hysteresis voltages of approximately 0.9 V at 5 V, 2.3 V at 10 V, and 3.5 V at 15 V supply levels. The high noise immunity, greater than 50 percent, enables reliable operation in electrically noisy industrial, laboratory, electronic, and manufacturing environments.
The device allows slow input rise and fall times without limit and consumes very low quiescent current, making it efficient for power-sensitive applications. Its standardized symmetrical output characteristics guarantee consistent interfacing with various digital logic circuits.
The HCF40106YM013TR IC can withstand operating temperatures from -55 degrees Celsius to 125 degrees Celsius, suitable for harsh environmental conditions. Compliance with RoHS standards ensures it meets current environmental regulations, suitable for environmentally conscious electronics manufacturing.
This Schmitt Trigger Inverter is ideal for use in industrial automation systems, electronic circuit design, signal conditioning, and electronic switching applications. The device integrates six Schmitt trigger circuits in an SO-14 package.
Hysteresis voltage typically ranges from 0.9 V to 3.5 V depending on supply. High noise immunity greater than 50 percent enhances signal integrity. Supports unlimited slow input rise and fall times with low input leakage current.
Operating temperature range of -55°C to 125°C ensures durability. RoHS compliant for ecological safety and standards adherence. Through-hole mount type ensures easy PCB installation. Compact package measuring 8.75 mm length, 4 mm width, and 1.75 mm height.
Explore related STMicroelectronics semiconductor products and inverters in the EnvMart catalog for comprehensive component sourcing.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is from 3 V to 20 V.
Hysteresis voltages are approximately 0.9 V at 5 V, 2.3 V at 10 V, and 3.5 V at 15 V supply levels.
This inverter uses a Schmitt Trigger input type, which provides enhanced noise immunity.
The maximum operating temperature for the HCF40106YM013TR is 125°C.
This model has dimensions of 8.75 mm in length, 4 mm in width, and 1.75 mm in height.
The HCF40106YM013TR is designed for through-hole mounting.
The minimum operating temperature for the HCF40106YM013TR is -55°C.
This Schmitt Trigger inverter is suitable for industrial automation systems, electronic circuit design, signal conditioning, and electronic switching applications.
The HCF40106YM013TR offers high noise immunity exceeding 50 percent, enhancing performance in noisy environments.
Yes, this model is RoHS compliant, meeting current environmental regulations.
The logic function of this device is an inverter, providing logic inversion with hysteresis characteristics.
Yes, the HCF40106YM013TR supports unlimited slow input rise and fall times with minimal input current.
