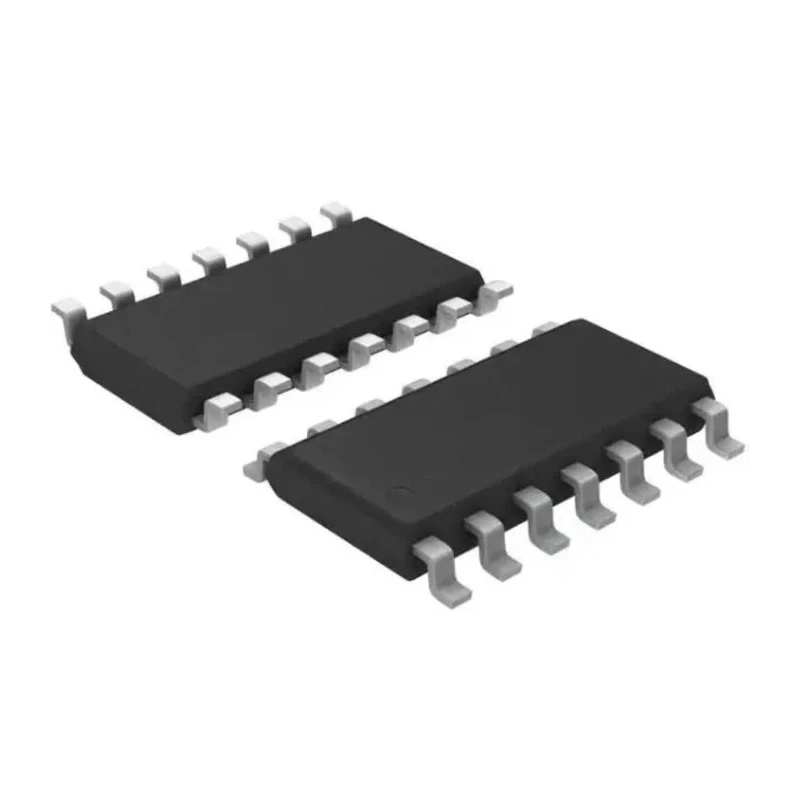

STMicroelectronics Schmitt Trigger Input Hex Schmitt Trigger Inverter HCF40106YM013TR

STMicroelectronics HCF40106YM013TR is a Hex Schmitt Trigger Inverter IC designed for reliable logic inversion with integrated Schmitt trigger inputs, ideal for industrial, automation, and electronic applications.

This monolithic circuit uses metal oxide semiconductor technology and is packaged in a through-hole SO-14 form factor, offering six independent Schmitt trigger inverters within a single component.

The device features built-in hysteresis with typical threshold voltages of approximately 0.9 V at a 5 V supply, increasing to 3.5 V at 15 V supply, enabling stable switching without the need for external components.

Its high noise immunity exceeding 50 percent ensures consistent performance in electrically noisy environments, making it suitable for robust signal conditioning tasks.

The HCF40106YM013TR imposes no restrictions on input signal rise and fall times, providing versatility for various input waveform shapes encountered in industrial and electronic circuit designs.

Power efficiency is enhanced by a low quiescent current from VDD to VSS, even during slow input ramps, and the IC maintains symmetrical standardized output characteristics for easy interfacing with other logic devices.

This component is specified for operation across a broad supply voltage range (minimum 3 V to maximum 20 V) and temperature range from -55°C to 125°C, making it suitable for automotive electronics and harsh industrial environments.

The maximum input leakage current is limited to 100 nA at 18 V VDD and ambient temperature 25°C, providing predictable input behavior for precise signal processing. The product complies with RoHS environmental standards ensuring eco-friendly manufacturing standards.

Monolithic hex Schmitt trigger inverter design. Integrated hysteresis negates need for external components. Wide operating voltage range from 3 V to 20 V. Low power consumption with specified quiescent current. High noise immunity greater than 50 percent.

Extended temperature operation from -55°C to 125°C suitable for automotive use. Standardized symmetrical output for compatibility. Input leakage current limited to 100 nA at 18 V supply and 25 °C. Through-hole SO-14 package for reliable mounting.

RoHS compliant for environmental safety. Ideal for industrial automation, electronic circuit design, MCU input conditioning, and automotive applications needing reliable logic inversion with noise immunity. Explore the full range of semiconductor components and Inverter ICs at EnvMart to find complementary products and solutions.
