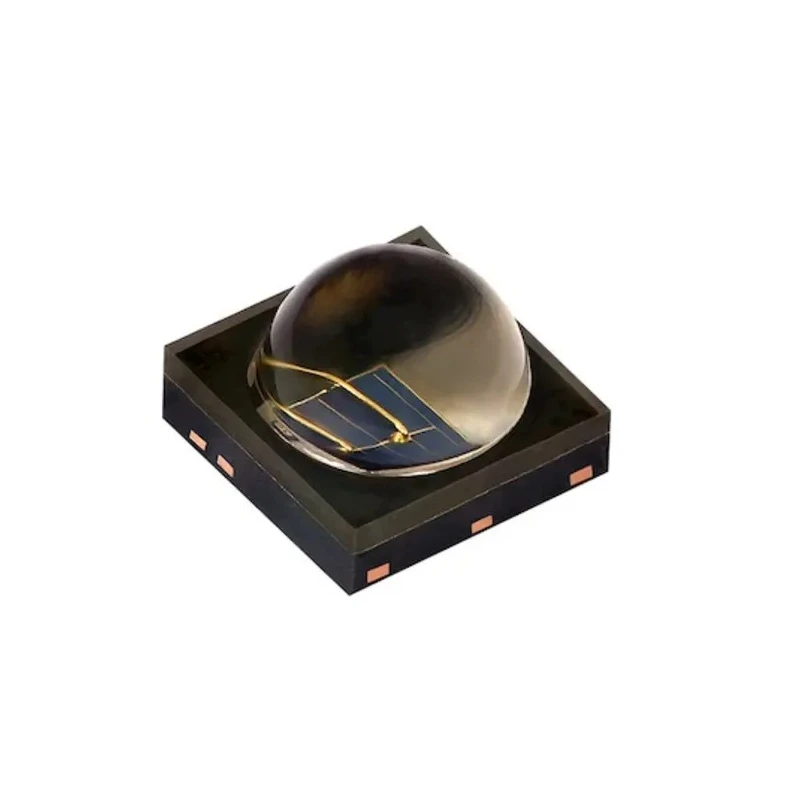

Vishay High Power Infrared Emitting Diode 860 nm Peak Wavelength 2100 mW Radiant Flux Surface Mount VSMA1085400
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1085400 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VSMA1085400 |
| Package Type | Surface Mount |
| Standards/Approvals | ANSI, ESDA, J-STD-020E, JEDEC JS-001 |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 860nm |
| Radiant Flux | 2100mW |
| Angle of half intensity | 40° |
| Radiant Intensity | 1350mW/sr |
Key Features
- Offers radiant intensity of 1350 mW/sr for efficient infrared emission.
- Compact dimensions of 3.4 x 3.4 x 2.45 mm facilitate surface mounting.
- Maximum supply voltage rated at 5 V for reliable operation.
- Double stack emitter chip supports continuous current of 1.5 A DC and pulsed currents up to 5.0 A.
- Half intensity angle of ±40° ensures focused infrared emission.
- Low thermal resistance of less than 6 K/W for excellent heat dissipation.
- Complies with industry standards including ANSI, ESDA, J-STD-020E, and JEDEC JS-001.
- ESD protection up to 5 kV enhances durability and reliability.
Product Description
Vishay VSMA1085400 is a high power infrared emitting diode featuring a peak wavelength of 860 nm and radiant flux of 2100 mW in a compact surface mount package measuring 3.4 x 3.4 x 2.45 mm. The device incorporates a double stack emitter chip enabling continuous operation up to 1.5 A DC and pulsed currents reaching 5.0 A, delivering high infrared emission intensity with a radiant intensity of 1350 mW/sr.
The diode exhibits a half intensity angle of ±40° which provides a focused infrared beam suitable for applications requiring precise emission control. It features a low thermal resistance below 6 K/W ensuring efficient dissipation of heat during high-power operation. The Diode withstands electrostatic discharge up to 5 kV following ANSI, ESDA, and JEDEC JS-001 standards, guaranteeing reliability in challenging environments.
This model, part of the VSMA1085400 series, supports a maximum supply voltage of 5 V and is optimized for surface mounting with tape and reel packaging, making it ideal for automated PCB assembly lines. The device is lead (Pb)-free and compatible with reflow soldering processes adhering to J-STD-020E standards.
Typical applications include industrial and laboratory infrared sensing, optical communications, and remote control systems requiring high power, reliable infrared emitters. The robust construction and compliance with automotive and industry standards make it a versatile choice for advanced electronic components.
Peak wavelength: 860 nm provides efficient infrared emission. Radiant flux of 2100 mW delivers high power output. Radiant intensity at 1350 mW/sr ensures effective signal transmission. Compact surface mount package for space-saving design.
Low thermal resistance enhances device longevity during high power use. ESD protection up to 5 kV safeguards device integrity. Compliant with ANSI, ESDA, J-STD-020E, and JEDEC JS-001 standards. Lead-free soldering compatible, supporting environmental regulations.
Explore the Vishay product range and other advanced IR LEDs in EnvMart's Electronics Components category for your industrial, laboratory, and commercial infrared applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this model is 860 nm, which provides efficient infrared emission.
The maximum supply voltage for the VSMA1085400 is rated at 5 V for reliable operation.
This model has a radiant flux of 2100 mW, delivering high power output.
The diode exhibits a radiant intensity of 1350 mW/sr, ensuring effective signal transmission.
It has compact dimensions of 3.4 x 3.4 x 2.45 mm, facilitating surface mounting.
The half intensity angle is ±40°, which provides a focused infrared beam suitable for precise emission control.
This model is packaged in tape and reel, making it suitable for automated PCB assembly lines.
It supports a continuous current of up to 1.5 A DC and pulsed currents up to 5.0 A.
This diode complies with industry standards including ANSI, ESDA, J-STD-020E, and JEDEC JS-001.
It offers electrostatic discharge protection up to 5 kV, enhancing its durability and reliability.
This infrared emitting diode is designed for surface mounting, which is optimal for compact applications.
Typical applications include industrial and laboratory infrared sensing, optical communications, and remote control systems.
