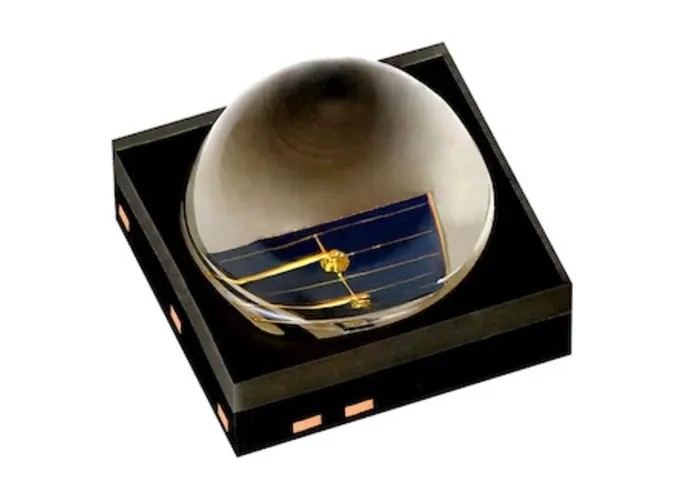

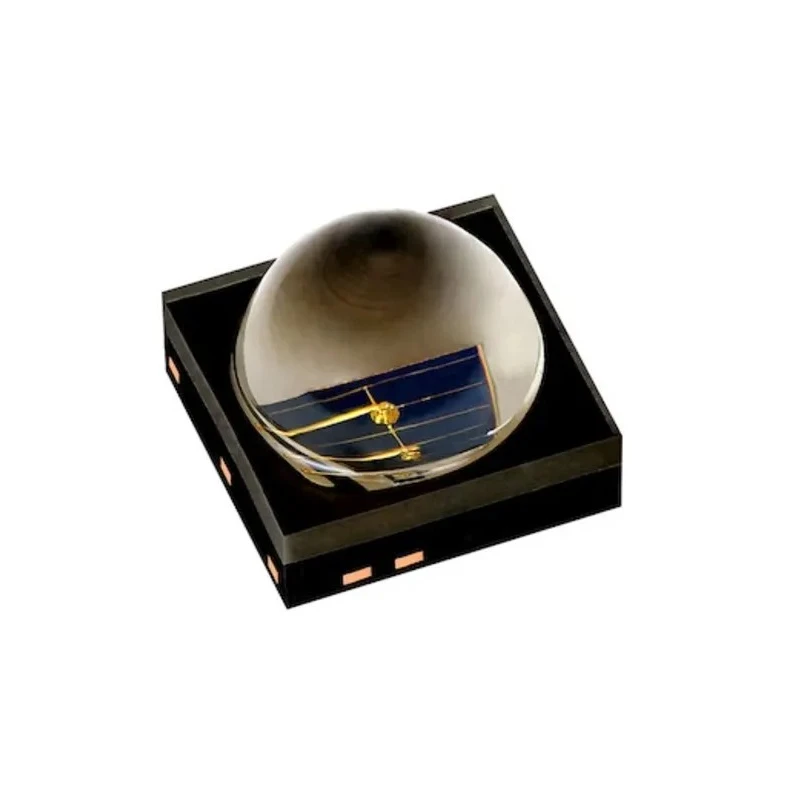

Vishay High Power Infrared Emitting Diode 950 nm Peak Wavelength Surface Mount Package VSMA1094250
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1094250 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Package Type | Surface Mount |
| Standards/Approvals | ANSI/ESDA/JEDEC JS-001 |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 950nm |
| Radiant Flux | 2100mW |
| Angle of half intensity | 28° |
| Radiant Intensity | 1800mW/sr |
Key Features
- This diode features a radiant flux of 2100 mW for strong IR emission.
- It operates at a maximum supply voltage of 5 V with a radiant intensity of 1800 mW/sr.
- The device has a half intensity angle of 28° for directional IR output.
- Its compact size of 3.4 x 3.4 x 2.9 mm fits onto surface mount PCBs efficiently.
- The diode includes a double stack emitter chip suitable for up to 1.5 A DC operation and pulsed currents up to 5 A.
- Designed for low thermal resistance, it ensures thermal stability during operation.
- It complies with ANSI/ESDA/JEDEC JS-001 standards for ESD protection up to 5 kV.
- The product is lead-free and suitable for reflow soldering processes.
Product Description
Vishay VSMA1094250 is a high power infrared emitting diode designed for applications requiring reliable and intense IR light sources at a peak wavelength of 950 nm. This SMD component employs a double stack emitter chip technology that supports a continuous DC current of 1.5 A and can handle pulsed currents up to 5 A, delivering a radiant flux of 2100 mW and radiant intensity of 1800 mW/sr.
The component package measures 3.4 mm in length and width with a height of 2.9 mm, enabling compact PCB designs while maintaining effective heat dissipation due to its low thermal resistance of approximately 6 K/W. With an angle of half intensity of 28°, the diode provides directional IR emission suited for sensing and illumination.
It adheres to ANSI/ESDA/JEDEC JS-001 standards, ensuring ESD protection up to 5 kV. This device is suitable for lead-free reflow soldering and comes packaged in tape and reel format for ease of assembly in automated manufacturing environments.
Typical applications include industrial sensors, remote controls, proximity detection, and other electronic systems requiring robust infrared light sources. Vishay's commitment to quality and performance is reflected in this diode's reliable operation under demanding conditions.
This infrared emitting Diode is optimized for high power emission at 950 nm wavelength. Compact surface mount package for space-saving PCB integration. Supports high DC and pulsed current drive for intense IR output. Low thermal resistance ensures stability during extended use.
Compliant with leading ESD standards for enhanced durability. Lead-free and RoHS compliant, fitting modern environmental standards. Packaging in tape and reel for efficient production assembly lines. Explore Vishay products and other infrared LEDs at EnvMart for industrial, laboratory, and commercial electronic applications requiring high infrared power and precision.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared emitting diode is 950 nm.
The maximum supply voltage for this model is 5 V.
It has a radiant flux output of 2100 mW.
The radiant intensity of this diode is 1800 mW/sr.
The half intensity angle for this model is 28°.
This diode is designed for surface mount applications.
It complies with ANSI/ESDA/JEDEC JS-001 standards for ESD protection up to 5 kV.
The package measures 3.4 mm x 3.4 mm x 2.9 mm.
It can handle a continuous DC current of up to 1.5 A.
This diode is packaged in tape and reel format for efficient assembly.
Typical applications include industrial sensors, remote controls, and proximity detection.
The thermal resistance is approximately 6 K/W, ensuring thermal stability during operation.
