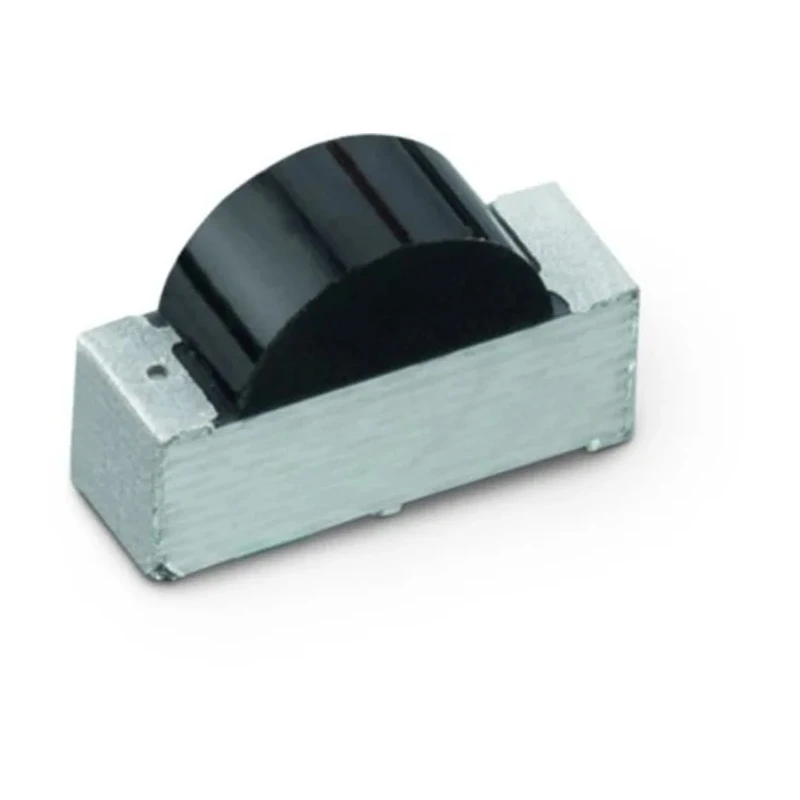

Wurth Elektronik Infrared Photodiode, 110°, Surface Mount 0805 Package 1541021ECA170

Wurth Elektronik 1541021ECA170 is a high sensitivity infrared photodiode with an extended viewing angle of 110°, designed for surface mount technology (SMT) applications in the 0805 package format. It utilizes silicon chip technology with a black lens, providing high reliability and performance in detecting infrared light, specifically optimized for peak sensitivity at 940nm wavelength.

This photodiode features a compact size with dimensions 4.8mm length, 5mm width, and 3mm height, making it ideal for space-constrained industrial and electronic component applications.

Its broad spectral detection range from 320nm to 1100nm and fast response times of 0.6ns for rise and fall times enable it to be effectively used in electronic circuits requiring accurate infrared detection, such as optical communication, remote controls, and sensor systems in industrial automation, manufacturing, and laboratory instruments.

Operating reliably from -40°C to 85°C, this device is manufactured to RoHS standards, ensuring environmental compliance and safety in industrial environments. Detects infrared spectrum with peak sensitivity at 940nm wavelength.

Compact 0805 surface mount package suitable for automated PCB assembly. Wide temperature tolerance from -40°C to 85°C for robust application use. Fast response with typical rise and fall times of 0.6ns for precise signal capturing.

Low dark current of 10nA enhances signal-to-noise ratio and accuracy. Forward polarity with 30V breakdown voltage ensures safe operation. RoHS compliant for environmentally responsible manufacturing. Wide half sensitivity angle of 110° for improved sensing coverage.

Dimensions of 4.8mm x 5mm x 3mm enable compact system integration. Supplied in tape and reel packaging for volume production environments.

This infrared Photodiode is extensively used in electronic components for signal detection within infrared optoelectronics and sensor arrays. It supports applications in industrial machinery monitoring, laboratory research, telecommunications, and automation sectors. The compact size and surface mount design allow for efficient high-density electronic assembly and reliable performance under various conditions.

For additional design integration resources, 3D models, schematics, and footprint files are available to optimize PCB development workflows. Choose Wurth Elektronik 1541021ECA170 for dependable infrared detection in advanced electronic component applications.
