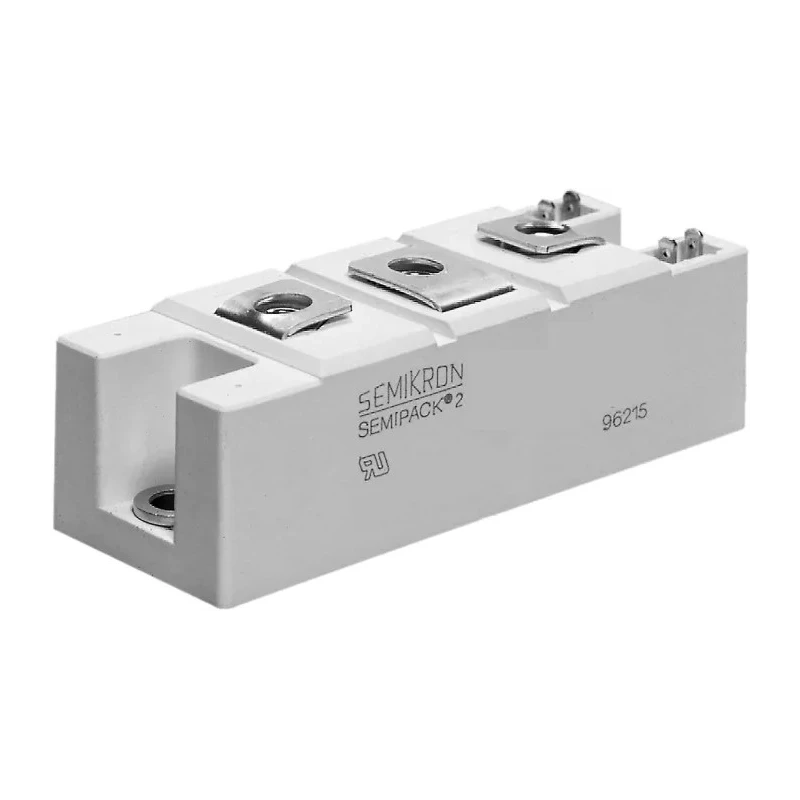

Semikron Danfoss Diode/Thyristor Module SCR 1800 V 5.4 kA 156 A 150 mA 1.6 V SEMIPACK2 5-Pin SKKH 162/18 E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30mm |
| Length | 94mm |
| Model | SKKH 162/18 E |
| Width | 34mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | SEMIPACK2 |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 156A |
| Repetitive Peak Reverse Voltage VDRM | 1800V |
| Surge Current Rating | 5.4kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 400mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 40mA |
Key Features
- Thyristor/diode module suitable for power electronic applications.
- Rated average on-state current of 156 A for continuous operation.
- Includes 5 pins with SEMIPACK2 packaging type.
- Maximum gate trigger current of 150 mA and gate trigger voltage of 2 V.
- Operates up to maximum temperature of 125°C with panel mount type.
- Peak on-state voltage of 1.6 V ensuring efficient conduction.
- Repetitive peak off-state current rating of 40 mA.
- Maximum holding current of 400 mA for gate control stability.
Product Description
Semikron Danfoss SKKH 162/18 E is a high-performance diode/Thyristor Module designed for controlling and rectifying high power in industrial electronic applications. With a repetitive peak reverse voltage of 1800 V and a surge current rating of 5.4 kA, this SCR module supports demanding loads and transient conditions. The SEMIPACK2 package with 5 pins enables efficient mounting on panels and excellent electrical insulation.
Featuring a rated average on-state current of 156 A, this module is ideal for battery chargers, welders, regulated power supplies, plating equipment, and temperature and speed control circuits. The maximum gate trigger current of 150 mA and gate trigger voltage of 2 V provide precise triggering control. Its maximum operating temperature of 125°C ensures reliability under harsh thermal conditions.
The module measures 94 mm in length, 34 mm in width, and 30 mm in height, facilitating compact yet robust system designs. The peak on-state voltage of 1.6 V supports efficient power conversion with minimal losses. Additionally, the repetitive peak off-state current of 40 mA and a maximum holding current of 400 mA assure stable operation during switching.
Semikron Danfoss SKKH 162/18 E is UL recognized and well suited for industrial, manufacturing, power management, and heavy equipment control applications requiring durable and effective semiconductor switching solutions.
Thyristor/diode module with 1800 V repetitive peak reverse voltage. Rated average on-state current of 156 A continuous operation. Surge current capability of 5.4 kA for transient conditions. SEMIPACK2 package with 5 pins for panel mounting.
Maximum operating temperature of 125°C. Peak on-state voltage of 1.6 V for efficient conduction. Maximum gate trigger current of 150 mA with stable gate voltage trigger. Compact dimensions 94 mm x 34 mm x 30 mm (LxWxH). Applications include battery chargers, welders, regulated power supplies, and speed control circuits.
Explore more innovative semiconductor components in the EnvMart Electronics category for high-quality power management and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this module is 1800 V.
This module has a rated average on-state current of 156 A for continuous operation.
The surge current rating is 5.4 kA, allowing it to handle transient conditions effectively.
The maximum operating temperature is 125°C, ensuring reliability under harsh thermal conditions.
The module measures 94 mm in length, 34 mm in width, and 30 mm in height.
The peak on-state voltage is 1.6 V, which supports efficient conduction.
The maximum gate trigger current is 150 mA, providing precise triggering control.
It uses the SEMIPACK2 package type with 5 pins for efficient panel mounting.
The maximum holding current is 400 mA, ensuring stable operation during switching.
It is suitable for applications such as battery chargers, welders, regulated power supplies, and temperature and speed control circuits.
The maximum gate trigger voltage is 2 V, which is essential for proper operation.
This module features a pin count of 5, facilitating its connection in electrical systems.
