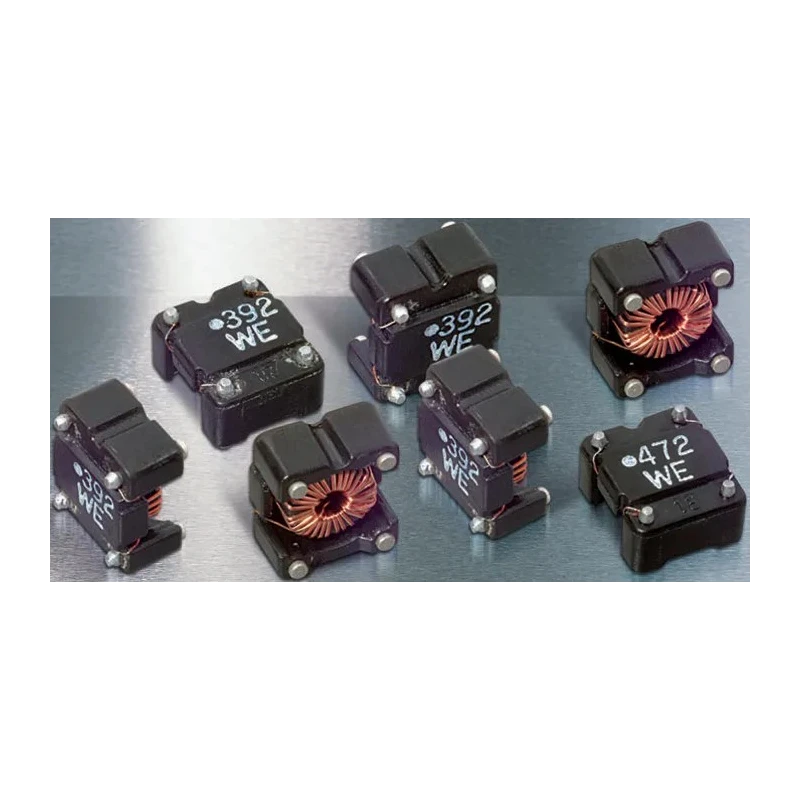

Wurth Elektronik Surface Mount Common Mode Line Filter with Ferrite Core 3.3 mH Dual ±40 % 650 mA Idc 744272332

Wurth Elektronik 744272332 is a Surface Mount Common Mode Line Filter featuring a ferrite core construction offering 3.3 mH inductance with a tolerance of ±40 %. This dual inductor device supports a maximum DC current of 650 mA and is designed for robust noise suppression on common mode lines.

Built to operate reliably in environments ranging from -40°C to 125°C, the component meets the stringent AEC-Q200 automotive standard, making it suitable for demanding automotive and industrial applications. The low maximum DC resistance of 360 milliohms ensures minimal energy loss while filtering.

This surface mount device is housed in a compact 4-way SMD package with dimensions of 10 mm length, 6.5 mm height, and 8.7 mm depth. It is supplied on tape and reel packaging, facilitating efficient automated assembly during PCB manufacturing.

Featuring a maximum self-resonant frequency of 100 kHz, the WE-SL5 series is optimized for interference suppression on data and power lines including CAN bus, USB, and Firewire interfaces.

Features a Ferrite Core for noise suppression on data and power lines. Dual inductor construction suitable for common mode noise filtering. Operates within a temperature range of -40°C to 125°C. Complies with AEC-Q200 automotive standard for reliability.

Constructed for surface mount applications with tape and reel packaging. Maximum DC resistance of 360 milliohms ensuring low loss. Maximum self-resonant frequency of 100 kHz for stable performance. Compact 10 mm x 6.5 mm x 8.7 mm dimensions.

Applicable for CAN, USB, Firewire, and other data and power line applications.

This product suits industrial, automotive, and electronics manufacturing sectors requiring effective EMI suppression in surface mount technology circuits. Explore related surface mount inductors and line filters in the Electronics Components category on EnvMart for comprehensive solutions.
