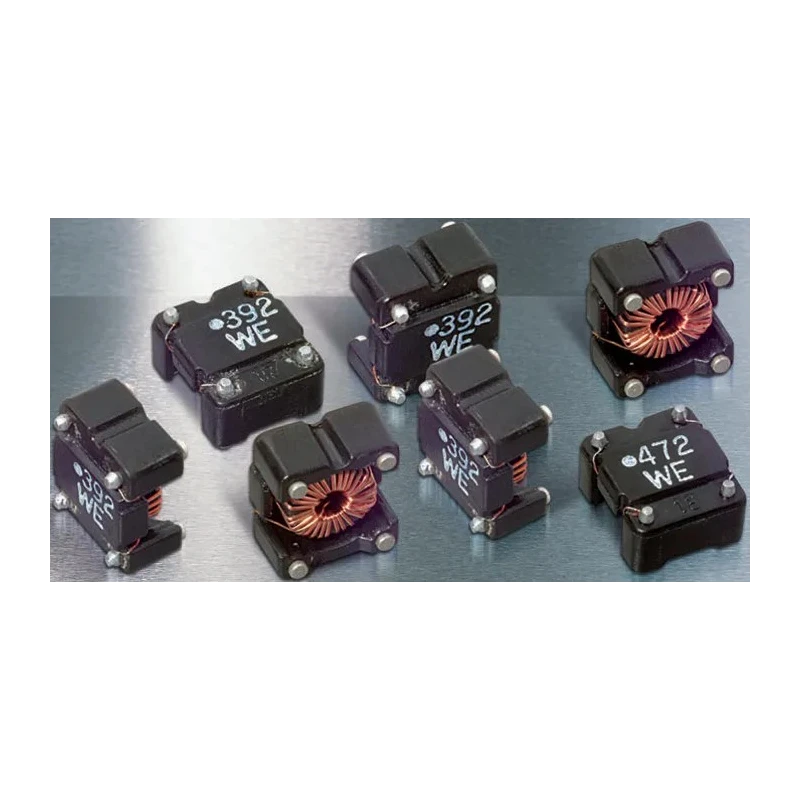

Wurth Elektronik Surface Mount Common Mode Line Filter 2.2 mH Dual Ferrite Core 750 mA 744272222

Wurth Elektronik 744272222 is a Surface Mount Common Mode Line Filter featuring a 2.2 mH dual inductance with a ferrite core. This filter is designed for suppression of common mode interference in electronic circuits and ensures improved signal integrity for data and power lines including USB, Firewire, and CAN bus environments.

The device supports a maximum DC current of 750 mA and has an inductance tolerance of ±40%. It operates reliably over a temperature range of -40°C to 125°C, making it suitable for demanding industrial, automotive, and commercial applications.

This component includes a 4-pin surface mount package constructed with a UL-94 V-0 rated flame retardant housing and uses tape and reel packaging for efficient automated PCB assembly. It meets the automotive AEC-Q200 standard, testifying to its durability and quality for automotive electronics.

The WE-SL5 series offers low stray and leakage inductance, with impedance values reaching up to 13 kΩ, which helps reduce electromagnetic interference (EMI) and radio-frequency interference (RFI) on power and data lines.

Typical use cases include industrial control systems, automotive electronics, consumer electronics, telecommunications, and power supply filtering. The robust ferrite core material enhances filtering performance and durability.

This common mode line filter features a Ferrite Core providing enhanced noise suppression. The inductance value is 2.2 mH with a tolerance of ±40% ensuring reliable performance. It supports a maximum DC current rating of 750 mA suitable for low current applications.

Constructed with a dual inductor design for improved filtering on the PCB. Compact surface mount 4-pin package ideal for automated assembly processes. Operating temperature ranges from -40°C to 125°C for robust industrial use.

Constructed with a UL-94 V-0 rated housing ensuring flame retardant safety standards. Packaging is tape and reel, facilitating efficient manufacturing insertion. Designed series WE-SL5 complies with automotive standard AEC-Q200, suitable for automotive-grade electronics.
