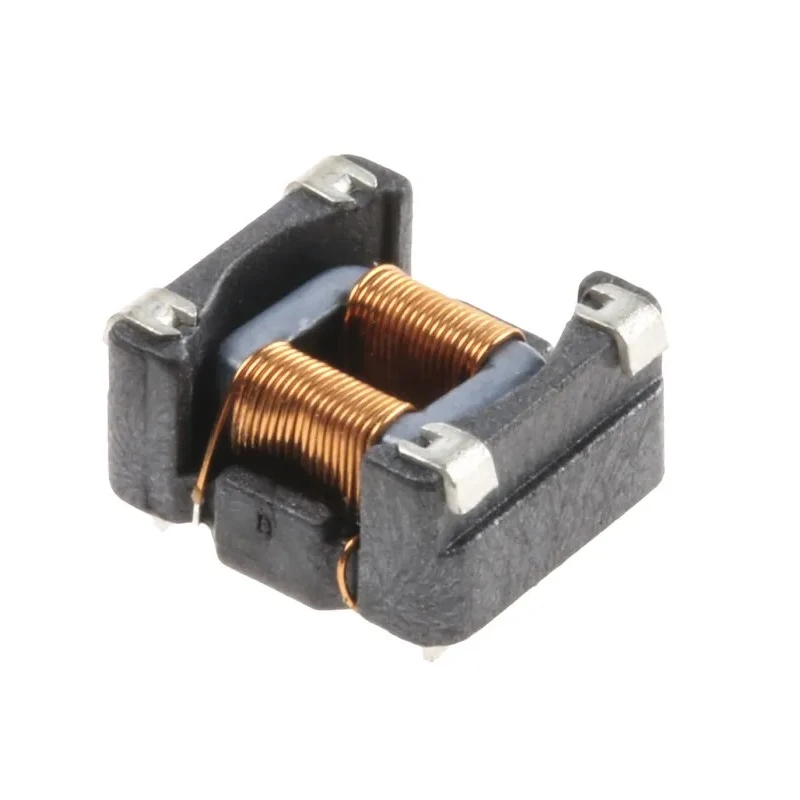

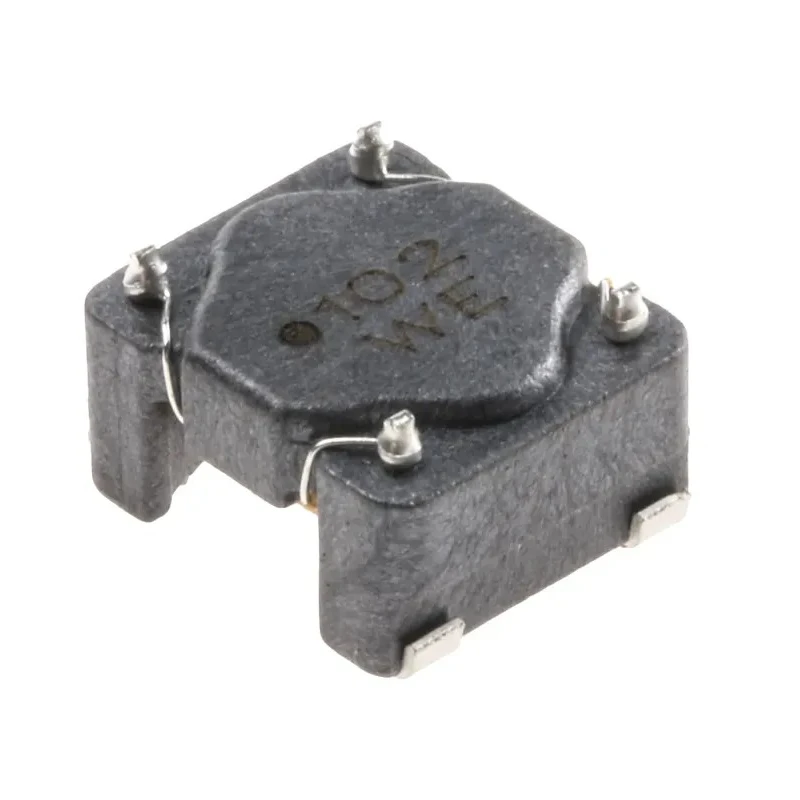

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 1 mH Sectional Winding ±40 % 950 mA 744272102
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 10mm |
| Depth | 8.7mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, Firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | UL 94 V0 |
| Maximum DC Current | 950mA |
| Maximum DC Resistance | 180mΩ |
| Inductance Tolerance | ±40 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Sectional Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a ferrite core construction for effective EMI suppression.
- Rated maximum DC current of 950 mA for reliable performance.
- Inductance tolerance is ±40% to accommodate varying circuit requirements.
- Termination style is surface mount with tape and reel packaging for automated assembly.
- Compliant with automotive standard AEC-Q200 ensuring robust quality.
- Operates within a temperature range of -40°C to 125°C for wide application environments.
- Maximum DC resistance of 180 mΩ to minimize power loss.
- UL 94 V0 rated housing providing flammability resistance.
Product Description
Wurth Elektronik 744272102 is a WE-SL5 series surface mount common mode line filter featuring a ferrite core and sectional winding design with an inductance of 1 mH and tolerance of ±40%. It supports a maximum DC current of 950 mA, ideal for filtering noise in electronic circuits.
This compact filter measures 10 mm in length, 6.5 mm in height, and 8.7 mm in depth, and is designed for surface mount technology with tape and reel packaging, facilitating efficient automated assembly in manufacturing processes.
The device complies with automotive standard AEC-Q200 and is rated for operation from -40°C to 125°C, making it suitable for harsh industrial and automotive environments. Its UL 94 V0 certified housing ensures flame retardance, enhancing safety in electronic assemblies.
The common mode line filter is optimized for use in power and data line applications such as USB, Firewire, and Controller Area Network (CAN), providing effective EMI suppression through the ferrite core construction and a maximum DC resistance of 180 mΩ to maintain signal integrity.
The maximum self-resonant frequency is 100 kHz, accommodating a wide range of signal filtering requirements. Its sectional winding inductor construction offers reliable performance under varying electrical loads.
Effective EMI suppression with Ferrite Core and sectional winding. Suitable for diverse industrial, automotive, and consumer electronics applications. Compact form factor for high-density PCB designs. Operates safely within a wide temperature range.
Automotive grade and UL 94 V0 compliant housing ensure durability and safety. Compatible with power, USB, Firewire, and CAN data lines. Packaging via tape and reel supports automated manufacturing. Maximum DC resistance minimizes power losses and enhances performance.
Designed to meet stringent quality and reliability standards. Chinese origin product manufactured under high-quality processes. Explore more Wurth Elektronik electronic components at EnvMart to support your industrial and manufacturing needs with trusted quality and technical precision.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode line filter is 1 mH with a tolerance of ±40%.
It supports a maximum DC current of 950 mA, ensuring reliable performance in electronic circuits.
This model operates within a temperature range of -40°C to 125°C, making it suitable for various environments.
The filter measures 10 mm in length, 6.5 mm in height, and 8.7 mm in depth.
The termination style is surface mount, and it comes packaged in tape and reel for automated assembly.
It complies with the automotive standard AEC-Q200 and has a UL 94 V0 rated housing for flammability resistance.
The maximum DC resistance is 180 mΩ, which helps minimize power loss.
It is optimized for use in power and data line applications such as USB, Firewire, and Controller Area Network (CAN).
The maximum self-resonant frequency is 100 kHz, accommodating a wide range of signal filtering needs.
It features a sectional winding inductor construction, which provides reliable performance under varying electrical loads.
This product is manufactured in China under high-quality processes.
The core material of this common mode line filter is ferrite, which is effective for EMI suppression.
