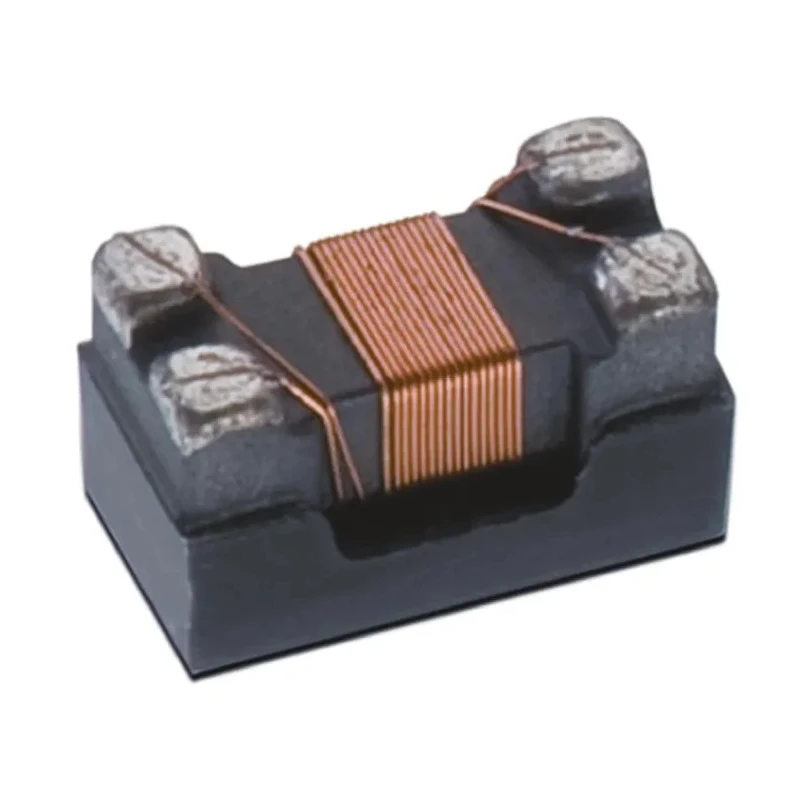

Wurth Elektronik 1206 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 0.36 μH Dual ±25 744232601
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | WE-CNSW SMD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 0.36μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 260mA |
| Pin Count | 4 |
| Maximum DC Resistance | 800mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
| NIC Components Common Mode ChokeBrand | NIC Components |
| TDK, Signal FilterBrand | TDK |
Key Features
- Constructed with a high-quality ferrite core for efficient EMI noise reduction.
- Compact 1206 package suitable for surface mount applications.
- Dual inductor construction for enhanced common mode noise filtering.
- Compatible with high-speed data interfaces such as USB 2.0, FireWire, and LAN.
- Operates reliably within a wide temperature range from -40°C to 125°C.
- Provides a maximum DC current rating of 260mA for robust performance.
- RoHS compliant and moulded for durability and environmental safety.
- Meets automotive standard AEC-Q200 for use in automotive electronics.
Product Description
Wurth Elektronik 744232601 1206 Shielded Surface Mount Common Mode Line Filter is designed to suppress common mode EMI noise effectively at high frequencies. Constructed with a ferrite core and dual inductor configuration, it provides reliable noise filtering with minimal impact on high speed signals. The component is housed in a compact 1206 package ideal for surface mounting on PCBs.
This line filter supports a maximum DC current of 260mA and operates efficiently across a temperature range of -40°C to 125°C, making it suitable for demanding electronic environments, including automotive applications compliant with AEC-Q200 standards. Its shielding and moulded construction enhance durability and signal integrity.
Typical applications include USB 2.0 interfaces, FireWire, LVDS, LAN, and other high-speed data lines that require suppression of common mode noise sources. The ±25% inductance tolerance ensures consistent performance in critical electronic circuits.
Additional features include a maximum DC resistance of 800mΩ, four pins for stable mounting, and compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS directives ensuring environmental and safety standards.
Constructed with a high-quality Ferrite Core for efficient EMI noise reduction. Compact 1206 package suitable for surface mount applications. Dual inductor construction for enhanced common mode noise filtering. Compatible with high-speed data interfaces such as USB 2.0, FireWire, and LAN.
Operates reliably within a wide temperature range from -40°C to 125°C. Provides a maximum DC current rating of 260mA for robust performance. RoHS compliant and moulded for durability and environmental safety. Meets automotive standard AEC-Q200 for use in automotive electronics.
Offers a maximum DC resistance of 800mΩ to ensure minimal signal degradation.
This Wurth Elektronik common mode line filter is essential for industrial, automotive, and commercial electronics seeking noise suppression and signal integrity. Explore a wide product range in Surface Mount Inductors at EnvMart to suit your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode line filter is 0.36 μH with an inductance tolerance of ±25%.
It has a maximum DC current rating of 260mA, ensuring robust performance in various applications.
This model operates reliably within a temperature range of -40°C to 125°C, making it suitable for demanding environments.
The dimensions of this common mode line filter are 3.2mm in length, 1.6mm in depth, and 1.8mm in height.
It features a dual inductor construction, which enhances common mode noise filtering capabilities.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The component is packaged in tape and reel format, which is suitable for surface mount applications.
It meets the automotive standard AEC-Q200, making it suitable for use in automotive electronics.
The maximum DC resistance is 800mΩ, which helps to minimize signal degradation.
It complies with IEC 61249-2-21, JEDEC JS709B, and REACH directives, ensuring adherence to safety and environmental standards.
This model is compatible with high-speed data interfaces such as USB 2.0, FireWire, and LAN.
The termination style of this filter is surface mount, making it suitable for PCB applications.
