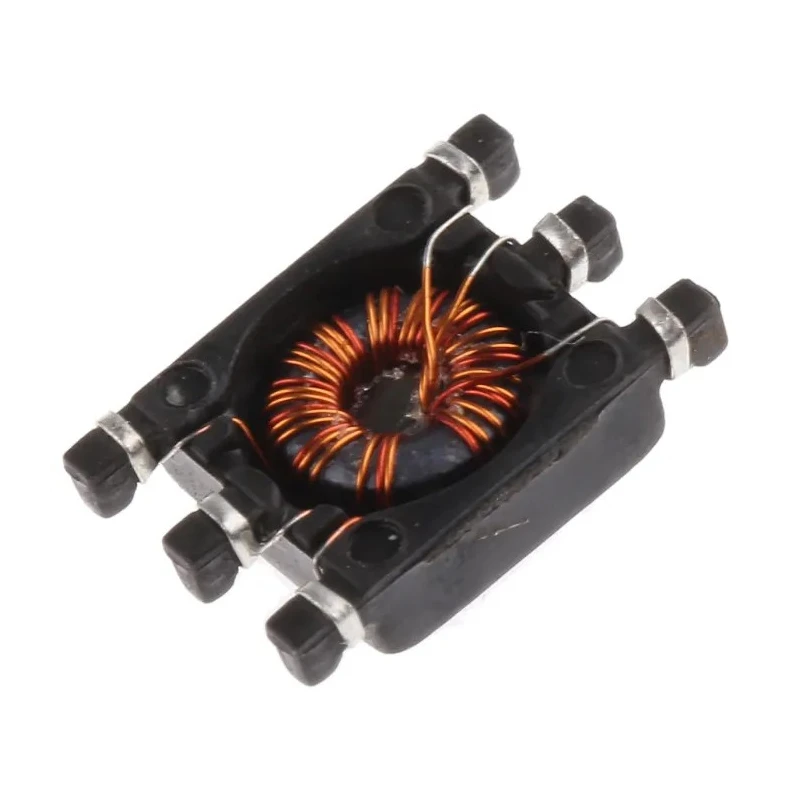

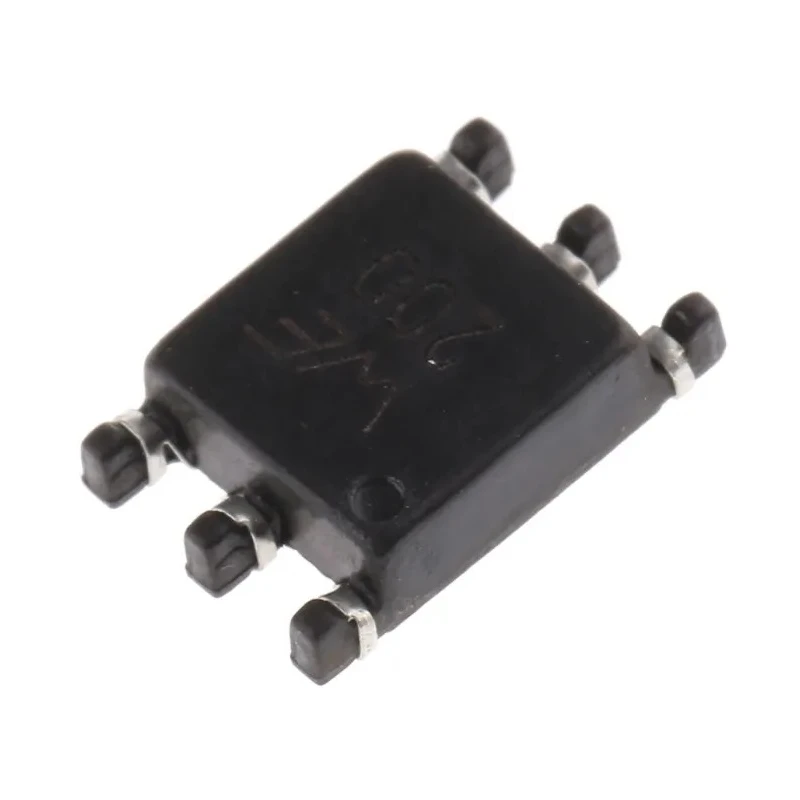

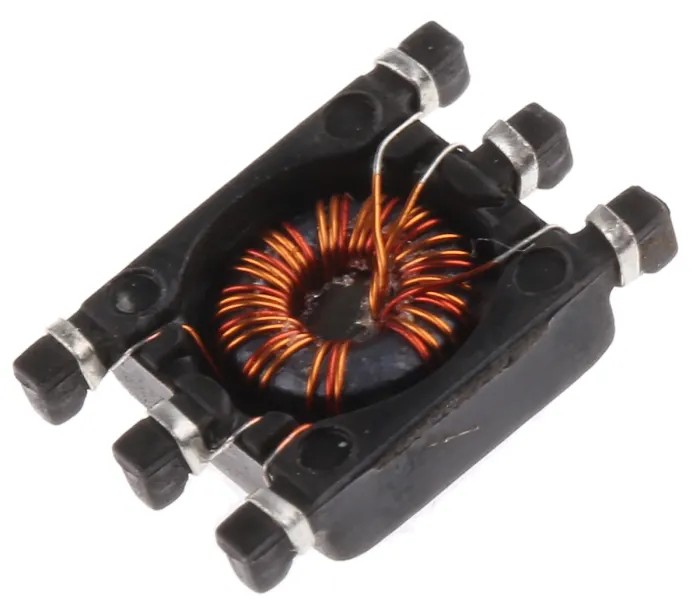

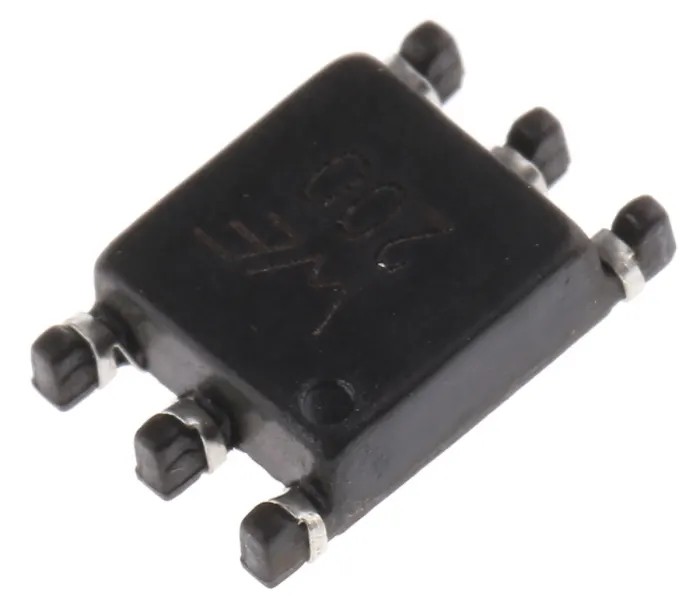

Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core 20μH -30 to 50 % Tolerance 500mA 744253200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.5mm |
| Length | 9.2mm |
| Depth | 6.6mm |
| Packaging | Tape & Reel |
| Series | WE-SL3 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 20μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 500mA |
| Maximum DC Resistance | 160mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This surface mount line filter is constructed with a wirewound design providing reliable noise suppression.
- Inductance tolerance ranges from -30 to +50 percent allowing for flexibility in circuit applications.
- The component is packaged in tape and reel format for automated assembly.
- Thermal operating range spans from -40°C to 125°C, ensuring durability under various conditions.
- Complies with RoHS standards and the automotive AEC-Q200 standard, suitable for automotive electronics.
- Maximum DC resistance of 160 milliohms optimizes power efficiency.
- Has a maximum self-resonant frequency of 100 kHz, making it suitable for filtering applications.

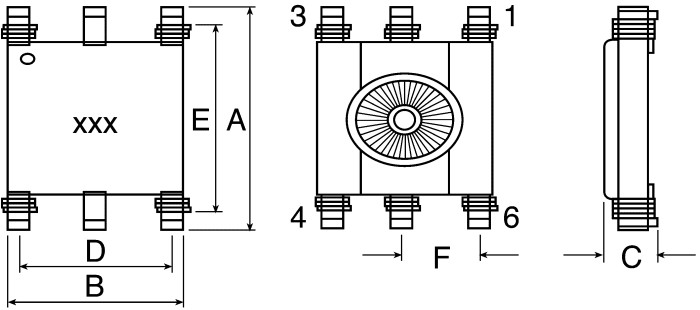

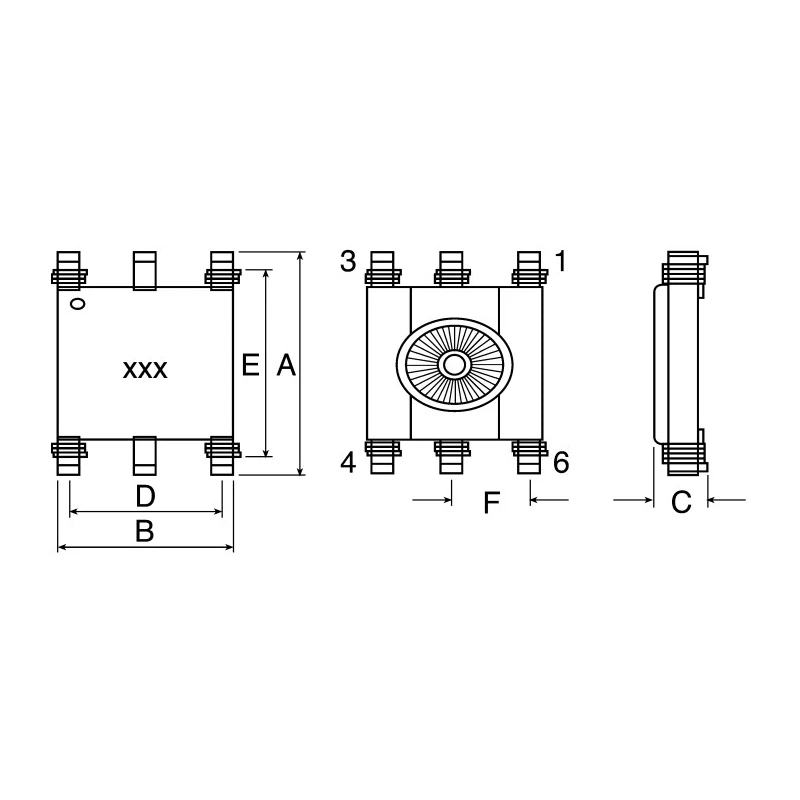

- Compact size with dimensions 9.2mm length, 6.6mm depth, and 2.5mm height.
Product Description
Wurth Elektronik 744253200 WE-SL3 Surface Mount Common Mode Line Filter is a high-performance electronic component designed with a Ferrite Core achieving 20μH inductance. Its construction utilizes wirewound technology to ensure effective common mode noise filtering in electronic circuits, particularly suitable for surface mount assembly.
The filter supports a maximum DC current of 500mA and exhibits a DC resistance of 160mΩ, optimized for power line and signal integrity applications. It operates reliably within a wide temperature range of -40°C to 125°C, compliant with automotive-grade AEC-Q200 standards, and meets RoHS environmental directives, making it ideal for automotive and industrial electronics applications.
Compact and efficient, the component measures 9.2mm in length, 6.6mm in depth, and 2.5mm in height, and is supplied in tape and reel packaging suitable for automated pick-and-place assembly. Its maximum self-resonant frequency of 100kHz ensures effective noise attenuation in the target frequency range.
Common applications include filtering and noise suppression on USB, Firewire, data communication, and power lines, enhancing signal quality and reliability in demanding electronic circuits. The UL-compliant housing (UL 94-VO) ensures safety and robust performance in industrial environments.
This product features wirewound inductors for reliable filtering. Inductance tolerance of -30 to +50 percent accommodates various circuit needs. Operates across a wide temperature range of -40°C to 125°C. Meets automotive standard AEC-Q200 and RoHS compliance.
Compact surface mount design with tape & reel packaging. Maximum DC resistance of 160mΩ for efficient current handling. Maximum self-resonant frequency of 100kHz for effective noise filtering. Application suited for CAN, USB, Firewire, data, and power lines.
Ideal for use in industrial, automotive, electronic assembly, and manufacturing settings. Explore the Electronics Components category on EnvMart for an extensive range of surface mount inductors and related products by Wurth Elektronik.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 20μH, with a tolerance ranging from -30% to +50%.
It can handle a maximum DC current of 500mA, ensuring efficient performance in various applications.
This unit measures 9.2mm in length, 6.6mm in depth, and 2.5mm in height.
The maximum self-resonant frequency is 100kHz, making it suitable for effective noise filtering applications.
It operates reliably within a temperature range of -40°C to 125°C.
The filter is packaged in tape and reel format, which is suitable for automated assembly processes.
It complies with RoHS standards and the automotive AEC-Q200 standard, making it suitable for automotive electronics.
The maximum DC resistance is 160 milliohms, which optimizes power efficiency.
It is compatible with USB, Firewire, data communication, and power lines, enhancing signal quality.
The inductor is constructed using wirewound technology, which provides reliable noise suppression.
It is suitable for filtering and noise suppression in applications such as USB, Firewire, data communication, and power lines.
The country of origin for this model is China.
