Wurth Elektronik 1206 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 0.3 μH Dual ±25 744232261

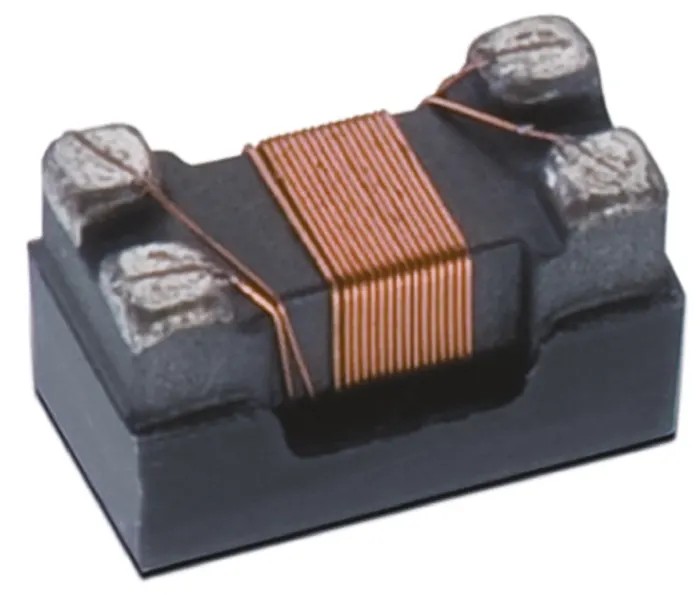

Wurth Elektronik 744232261 1206 Shielded Surface Mount Common Mode Line Filter is engineered for high-frequency common mode EMI noise suppression. Featuring a ferrite core and a dual inductor construction, this filter effectively reduces interference on high-speed data lines such as USB 2.0, Firewire, LVDS, and LAN connections.

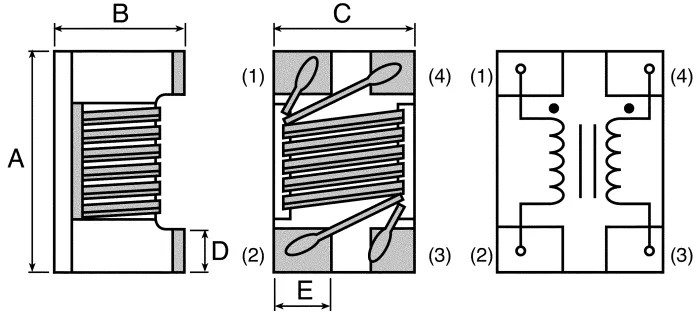

Its compact 1206 surface mount package measures 3.2mm length, 1.8mm height, and 1.6mm depth, allowing for efficient space utilization in PCB designs. The device supports a maximum DC current up to 310mA and has a maximum DC resistance of 500 milliohms, ensuring low insertion loss and high reliability.

The shielded design complies with automotive AEC-Q200 standards, making it suitable for automotive and industrial applications. Its operating temperature range from -40°C to 125°C provides robustness under various environmental conditions. The component is RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 compliant, confirming its adherence to key industry and environmental standards.

Packaging in tape and reel format supports automated pick-and-place assembly, improving manufacturing efficiency. This line filter is highly recommended for electronic designs requiring suppression of common mode noise in sensitive signal environments.

Ferrite Core and dual inductor construction optimize noise suppression. Compact 1206 SMD package facilitates PCB space efficiency. 310mA maximum DC current rating and low resistance of 500mΩ. Meets automotive AEC-Q200 standard and broad temperature range.

Environmentally compliant with RoHS, REACH, and JEDEC standards. Reflow soldering friendly for streamlined manufacturing. Suitable for USB 2.0, Firewire, LAN, and other high-speed data lines. Explore related surface mount inductors and filters at EnvMart to find the right electronic components for your industrial and automotive projects.
