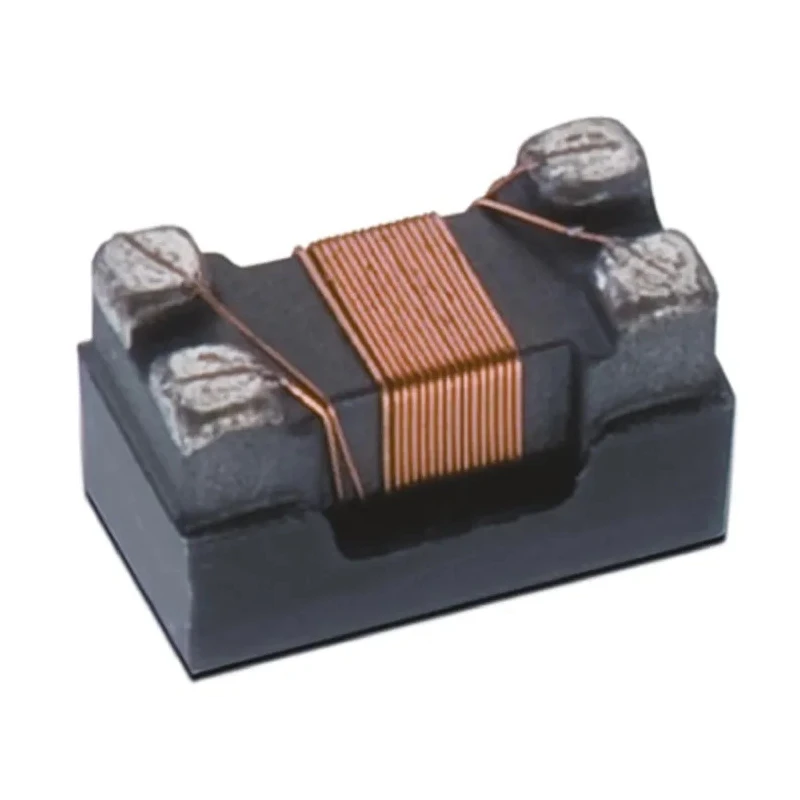

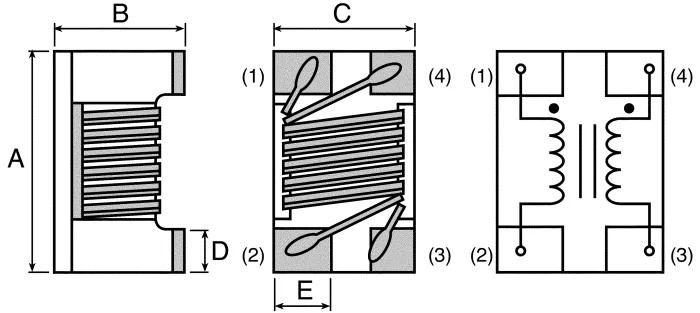

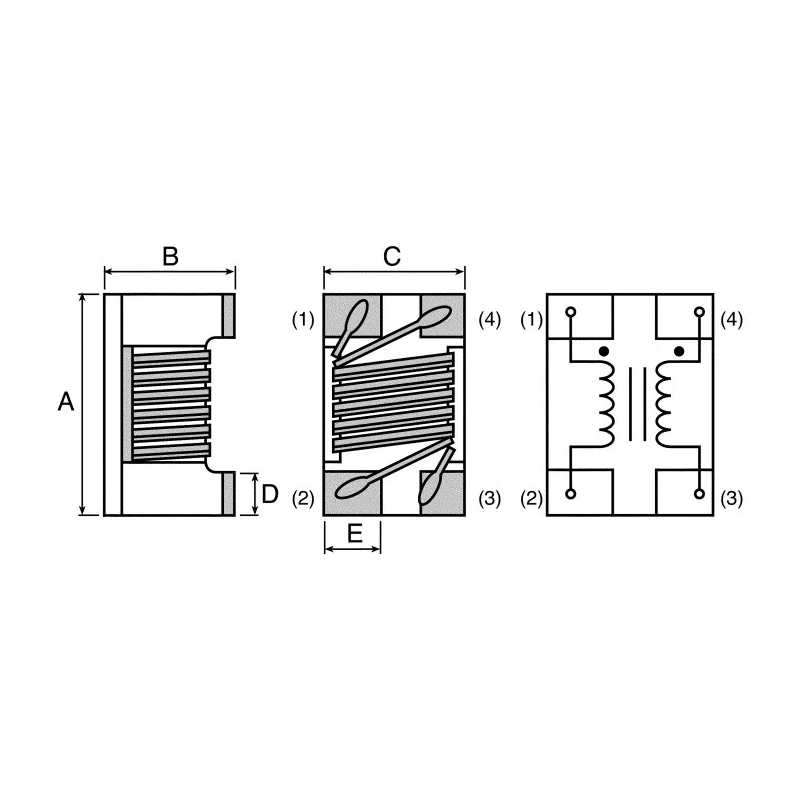

Wurth Elektronik 1206 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 0.2μH Dual ±25 744232161
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | WE-CNSW SMD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 0.2μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 340mA |
| Pin Count | 4 |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- The dual inductor design provides symmetrical winding for minimal impact on high-speed signals.
- Rated maximum DC current is 340mA for robust performance.
- Complies with automotive standard AEC-Q200 and international norms including IEC 61249-2-21 and JEDEC JS709B.
- Features a compact 1206 package size with tape & reel packaging for efficient automated assembly.
- Operating temperature ranges from -40°C to 125°C ensuring reliability in varied environments.
- Inductance tolerance is ±25% for precise filtering characteristics.
- Surface mount termination style with shielding enhances EMI suppression performance.
- Ferrite core construction molded for durability and electromagnetic compatibility.
Product Description
Wurth Elektronik 744232161 1206 Shielded Surface Mount Common Mode Line Filter is engineered to provide effective common mode EMI noise suppression in high-frequency applications. Featuring a compact 1206 surface mount package and a ferrite core, this dual inductor line filter exhibits an inductance of 0.2μH with a tolerance of ±25% ensuring accurate signal integrity preservation.
This component supports a maximum DC current of 340mA and operates reliably within a temperature range of -40°C to 125°C, making it suitable for automotive and industrial electronics use. Its shielding and molded ferrite construction minimizes electromagnetic interference and ensures robust performance under demanding conditions.
The device meets renowned standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS compliance, which approves its use in stringent environmental and quality requirements. Packaged in tape & reel format, it supports automated PCB assembly and manufacturing efficiency.
Typical applications for the Wurth Elektronik WE-CNSW series include USB 2.0 data lines, Firewire, LVDS, LAN communication links, and other high-speed data transmission environments where common mode noise reduction is critical to system performance.
The dual inductor design provides symmetrical winding to maintain signal integrity in high-speed data lines. High shielding effectiveness reduces EMI emissions and susceptibility. Compact 1206 surface mount package allows for space-saving designs.
Compliant with automotive and international standards ensuring reliability. Robust Ferrite Core construction suitable for industrial and automotive electronics. Wide operational temperature range supports diverse environment conditions.
Tape & reel packaging enables efficient high-volume automated installation.
Select this Wurth Elektronik shielded line filter for enhancing EMI noise immunity in your industrial, automotive, or communication device designs. Explore more surface mount inductors and common mode filters in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.2μH with an inductance tolerance of ±25%.
It has a maximum DC current rating of 340mA, ensuring robust performance in various applications.
The dimensions of this unit are 3.2mm in length, 1.6mm in depth, and 1.8mm in height.
This model operates reliably within a temperature range of -40°C to 125°C.
It complies with automotive standard AEC-Q200 and international standards including IEC 61249-2-21 and JEDEC JS709B, as well as REACH and RoHS regulations.
The filter is packaged in tape and reel format, which supports efficient automated assembly.
It features a surface mount termination style, enhancing its compatibility with automated PCB assembly processes.
The core material of this unit is ferrite, which contributes to its electromagnetic compatibility and performance.
This model has a pin count of 4, facilitating its connection in electronic circuits.
Typical applications include USB 2.0 data lines, Firewire, LVDS, LAN communication links, and other high-speed data transmission environments where common mode noise reduction is critical.
The maximum DC resistance is 400mΩ, which is important for maintaining signal integrity.
This line filter is part of the WE-CNSW SMD series, designed for surface mount applications.
