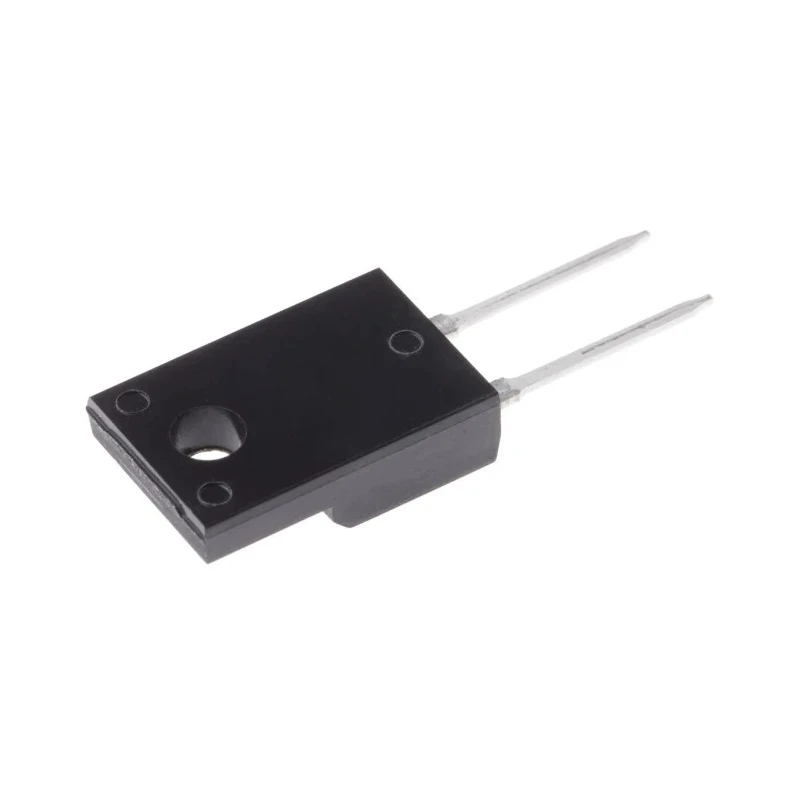

STMicroelectronics 600 V 8 A Switching Diode Through Hole TO-220 Package STTH8R06FP

STMicroelectronics STTH8R06FP is a high-performance switching diode designed for use in electronic circuits requiring reliable rectification and fast switching. This diode comes in a through-hole TO-220 package with 2 pins, enabling easy installation on printed circuit boards (PCBs) in various electronic and power management systems.

With a maximum continuous forward current of 8 Amperes and a peak reverse repetitive voltage of 600 Volts, it is engineered to handle demanding applications such as power supplies, motor drives, and industrial control equipment. The diode offers a maximum forward voltage drop of 2.9 Volts, ensuring efficient conduction with minimal power loss.

Operating temperature ranges from -65°C to 175°C allow this diode to perform reliably under extreme environmental conditions. Its fast peak reverse recovery time of 45 nanoseconds supports high-frequency switching applications, enhancing system efficiency.

Standard compliance to RoHS directives ensures that the STTH8R06FP is free from hazardous materials and suitable for environmentally conscious electronic product designs. The device does not carry automotive certification and is targeted for industrial, laboratory, and commercial uses.

Typical applications include industrial power rectification, switching regulators, and general purpose switching diode requirements in electronic assemblies. Its robust surge current capability (80 A peak non-repetitive) safeguards the diode against transient load conditions.

The TO-220 package dimensions (height 9.3 mm, width 4.6 mm, length 10.4 mm, and diameter 3 mm) make it compatible with standard mounting hardware and heat sinks. This package style facilitates thermal management where power dissipation is critical.

Maximum continuous forward current is 8 Amperes. Peak reverse repetitive voltage is rated at 600 Volts. Switching rectifier type diode with single diode configuration. Maximum forward voltage drop is 2.9 Volts. Operating temperature range from -65°C to 175°C.

Peak reverse recovery time of 45 nanoseconds. Peak non-repetitive forward surge current of 80 Amperes. Package type TO-220 through hole with 2 pins. RoHS compliant, suitable for industrial and electronic power applications.
