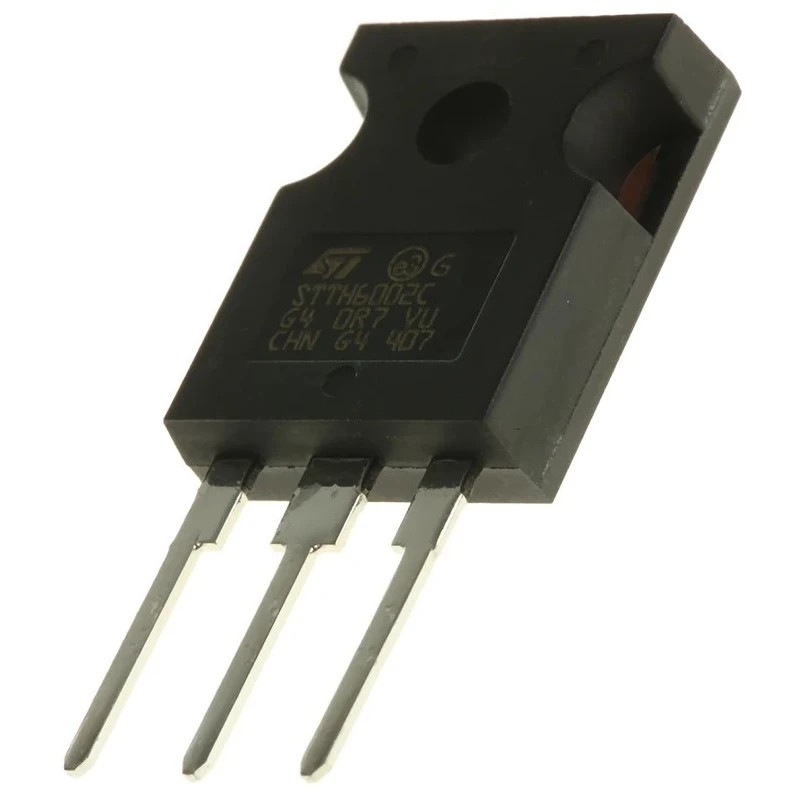

STMicroelectronics 200 V 60 A Switching Rectifier Diode, Through Hole, TO-247 Package STTH6002CW
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH6002CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH6002C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 1.18V |
| Peak Reverse Recovery Time trr | 27ns |
| onsemi 600V 30A, Dual Silicon Junction Diode, 3-Pin SOT-93 MUR3060PTBrand | ON Semiconductor |
Key Features
- This diode offers a maximum continuous forward current of 60 amperes.
- The peak reverse repetitive voltage rating is 200 volts, suitable for high voltage rectification.
- It features a common cathode diode configuration with a peak non-repetitive forward surge current of 330 amperes.
- The maximum forward voltage drop is 1.18 volts, ensuring efficient switching performance.
- The device has a low peak reverse recovery time of 27 nanoseconds for fast switching applications.
- Operating temperature ranges from -65°C to a maximum of 175°C for robust thermal performance.
- The compact TO-247 package measures 20.15 mm in height, 15.75 mm in length, 5.15 mm in width, and a pin diameter of 3.55 mm.
- The diode complies with RoHS standards, ensuring environmental safety and compliance.
Product Description
STMicroelectronics STTH6002CW is a high-performance switching rectifier diode designed for industrial and electronic applications requiring efficient high-current and high-voltage handling.
This device features a robust through-hole TO-247 package that provides reliable mechanical and thermal stability. It is rated for a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage of 200 volts, making it suitable for power rectification in industrial power supplies, motor drives, and electronic converters.
The diode’s low forward voltage drop of 1.18 V and fast peak reverse recovery time of 27 ns contribute to reduced power losses and improved efficiency in switching circuits. Its common cathode configuration and 3-pin design allow easy integration on printed circuit boards with through-hole mounting.
Thermal performance is excellent with an operational temperature range from -65°C to 175°C, allowing use in demanding environments such as automotive electronics, power management systems, and industrial automation.
The STTH6002CW complies with RoHS directives, ensuring environmentally friendly manufacturing and disposal processes. This diode offers a maximum continuous forward current of 60 amperes. The peak reverse repetitive voltage rating is 200 volts for high voltage applications.
Featuring a common cathode diode configuration with 3 pins in a TO-247 package. Peak non-repetitive forward surge current is 330 amperes. The maximum forward voltage is 1.18 volts, optimizing conduction losses. Peak reverse recovery time is 27 nanoseconds, suitable for fast switching circuits.
Operating temperature range from -65°C to a maximum of 175°C. Complies with RoHS safety and environmental standards.
This diode is ideal for use in power electronics, industrial equipment, and other applications requiring robust and efficient switching diode modules. Designed to enable reliable and long-lasting operation in challenging environments.
Explore more electronic components and advanced semiconductor devices at EnvMart for your industrial and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 60 amperes.
The peak reverse repetitive voltage rating is 200 volts, making it suitable for high voltage rectification applications.
The TO-247 package has a height of 20.15 mm, a length of 15.75 mm, and a width of 5.15 mm, with a pin diameter of 3.55 mm.
The peak non-repetitive forward surge current is 330 amperes.
The maximum forward voltage drop is 1.18 volts, which helps optimize conduction losses.
The peak reverse recovery time is 27 nanoseconds, suitable for fast switching applications.
The operating temperature range is from -65°C to a maximum of 175°C, allowing for robust thermal performance in various environments.
This model features a common cathode diode configuration with a 3-pin design for easy integration.
The diode complies with RoHS standards, ensuring environmental safety and compliance.
It is suitable for power rectification in industrial power supplies, motor drives, and electronic converters.
The diode has a pin count of 3, which is typical for its configuration.
The country of origin for this diode is India.
