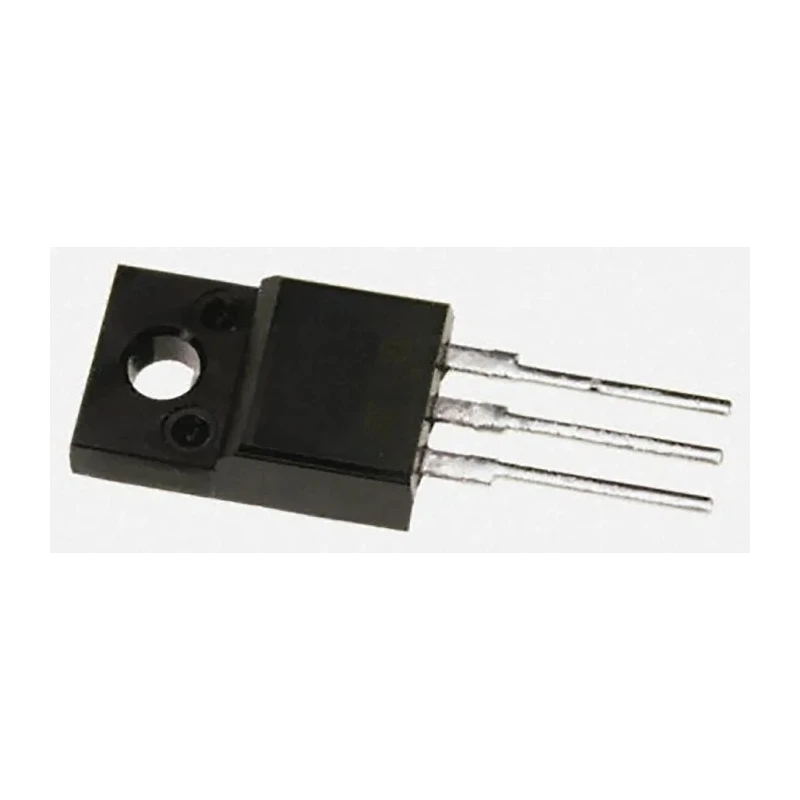

STMicroelectronics 45 V 30 A Schottky Diode 3-Pin TO-220ABFP STPS30L45CFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STPS30L45CFP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPS30L45C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220ABFP |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Mount type is through-hole ensuring easy PCB assembly.
- Package type is TO-220ABFP for reliable thermal performance.
- Features a common cathode diode configuration for versatile circuit use.
- Maximum forward voltage of 0.5 V supports efficient conduction.
- Operating temperature range from -65°C to 150°C for robust applications.
- Peak non-repetitive forward surge current up to 220 A enables transient protection.
- Peak reverse current is low at 400μA to minimize leakage losses.
- Rectifier type is Schottky for fast switching and low forward voltage drop.
Product Description
STMicroelectronics STPS30L45CFP is a high-performance Schottky diode designed for power and efficient rectification applications. Its 3-pin TO-220ABFP package supports through-hole mounting and excellent thermal dissipation.
This diode features a 45 V peak reverse voltage rating and can handle a maximum continuous forward current of 30 A, making it ideal for industrial, electronic component, power supply, and semiconductor applications.
The STPS30L45CFP has a low forward voltage of 0.5 V that reduces power losses and improves efficiency, while the common cathode configuration suits various circuit designs. Operating reliably across a broad temperature range from -65°C to 150°C, it withstands harsh environments and high surge currents up to 220 A for transient events.
Its compact physical dimensions enable versatile PCB layouts in devices requiring discrete semiconductor components such as power supplies, motor drives, and industrial controls. Through-hole TO-220ABFP mounting facilitates mechanical stability and thermal management.
Common cathode diode configuration supports standard rectification circuitries. Maximum operating temperature of 150°C assures durability in demanding conditions. Peak reverse current of 400μA minimizes leakage for high efficiency.
Compact size allows dense assembly in electronic modules. Designed for industrial and electronic semiconductor use cases. Package contains one Schottky diode component ready for insertion.
Choose STMicroelectronics STPS30L45CFP Schottky diode for reliable, efficient rectification in professional and industrial electronic applications. Explore more semiconductor and diode solutions from the EnvMart catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STPS30L45CFP is 30 A.
This model has a peak reverse voltage rating of 45 V.
It features a common cathode diode configuration, which is suitable for various circuit designs.
The operating temperature range for the STPS30L45CFP is from -65°C to 150°C.
The maximum forward voltage drop is 0.5 V, which supports efficient conduction.
It can handle a peak non-repetitive forward surge current of up to 220 A.
This diode comes in a TO-220ABFP package, which supports through-hole mounting and excellent thermal dissipation.
The dimensions of the STPS30L45CFP are 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height.
The peak reverse current is low at 400μA, which minimizes leakage losses.
It is designed for power and efficient rectification applications in industrial and electronic components, power supplies, and semiconductor uses.
The TO-220ABFP package design facilitates mechanical stability and effective thermal management, making it suitable for demanding applications.
The STPS30L45CFP is manufactured in India.
