STMicroelectronics 1-Element Bi-Directional Transil TVS Diode 600W, 2-Pin DO-214AA SM6T100CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T100CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 178V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 95V |
| Maximum Reverse Stand-off Voltage Vwm | 85.5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 22.5A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Bi-directional direction type ensures protection in both voltage polarities.
- Single diode configuration provides reliable transient voltage suppression.
- Minimum breakdown voltage of 95 V safeguards circuits from overvoltage events.
- Maximum reverse stand-off voltage is 85.5 V for defined clamping operation.
- Peak pulse power dissipation rating of 600 W protects against high energy spikes.
- Clamping voltage at 178 V limits transient surges effectively.
- Operating temperature range from -55°C to 150°C suits harsh environments.
- Maximum peak pulse current of 22.5 A supports robust transient handling.
Product Description
STMicroelectronics SM6T100CA is a Transil transient voltage suppressor diode designed to provide reliable overvoltage protection in electronic circuits. It is a bi-directional device with a single diode configuration, rated for a peak pulse power dissipation of 600 W. The component is housed in a DO-214AA (SMB) surface mount package, making it suitable for compact PCB layouts in industrial and consumer electronic applications.
This Transil diode features a minimum breakdown voltage of 95 V, which triggers at transient voltage spikes to protect sensitive components downstream. It has a maximum reverse stand-off voltage of 85.5 V and clamps voltage spikes to a maximum of 178 V, effectively limiting voltage transients.
The device can operate reliably across a wide temperature range from -55°C to 150°C, making it ideal for use in harsh industrial environments, automotive electronics, telecommunications, and power management systems.

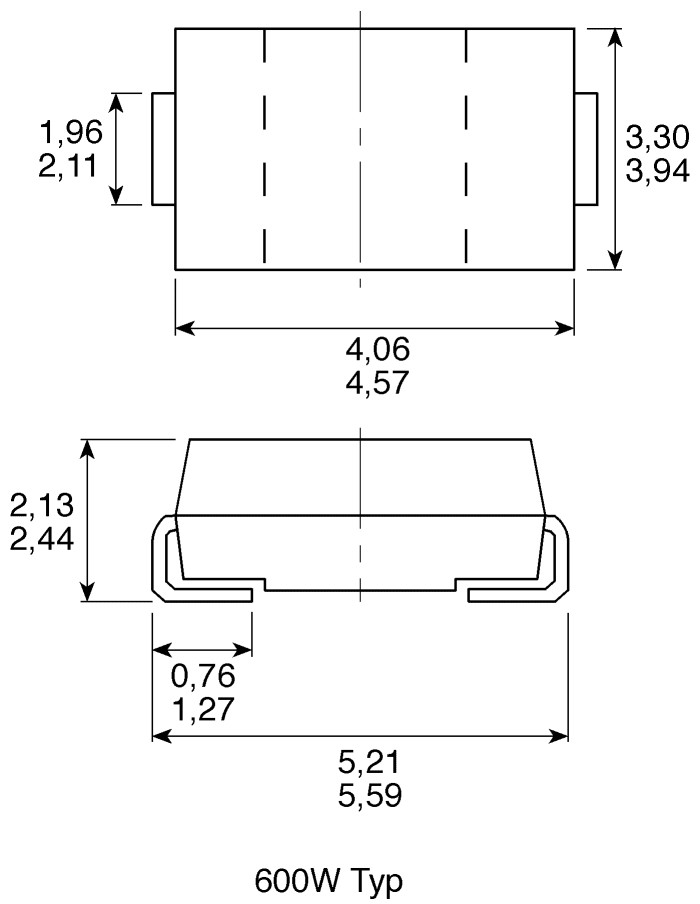

Its compact physical dimensions (length 4.6 mm, width 3.95 mm, height 2.45 mm) facilitate integration into space-constrained designs. The device sustains a maximum peak pulse current of 22.5 A and has low reverse leakage current (200 nA), which minimizes energy loss and heat generation during normal operation.
Applications for this STMicroelectronics Transil TVS diode include protection of sensitive semiconductors in power supplies, data lines, and signal conditioning circuits against voltage spikes caused by inductive load switching, lightning surges, and electrostatic discharge.
Bi-directional transient voltage suppression. 600 W peak pulse power dissipation rating. Compact DO-214AA (SMB) surface mount package. Wide operating temperature range suitable for industrial use. Low leakage current for energy efficiency.
It supports design and manufacturing needs in electronics, power management, telecommunications, automotive, and industrial sectors. Explore more Discrete Semiconductors and transient voltage suppressors within the STMicroelectronics range at EnvMart for robust circuit protection solutions.
